Power Window Control System - Diagnosis
›
Power Window Regulator Switch Circuit On Passenger Side
›
Wiring Diagram
Power Window Regulator Switch Circuit On Passenger Side: Wiring Diagram

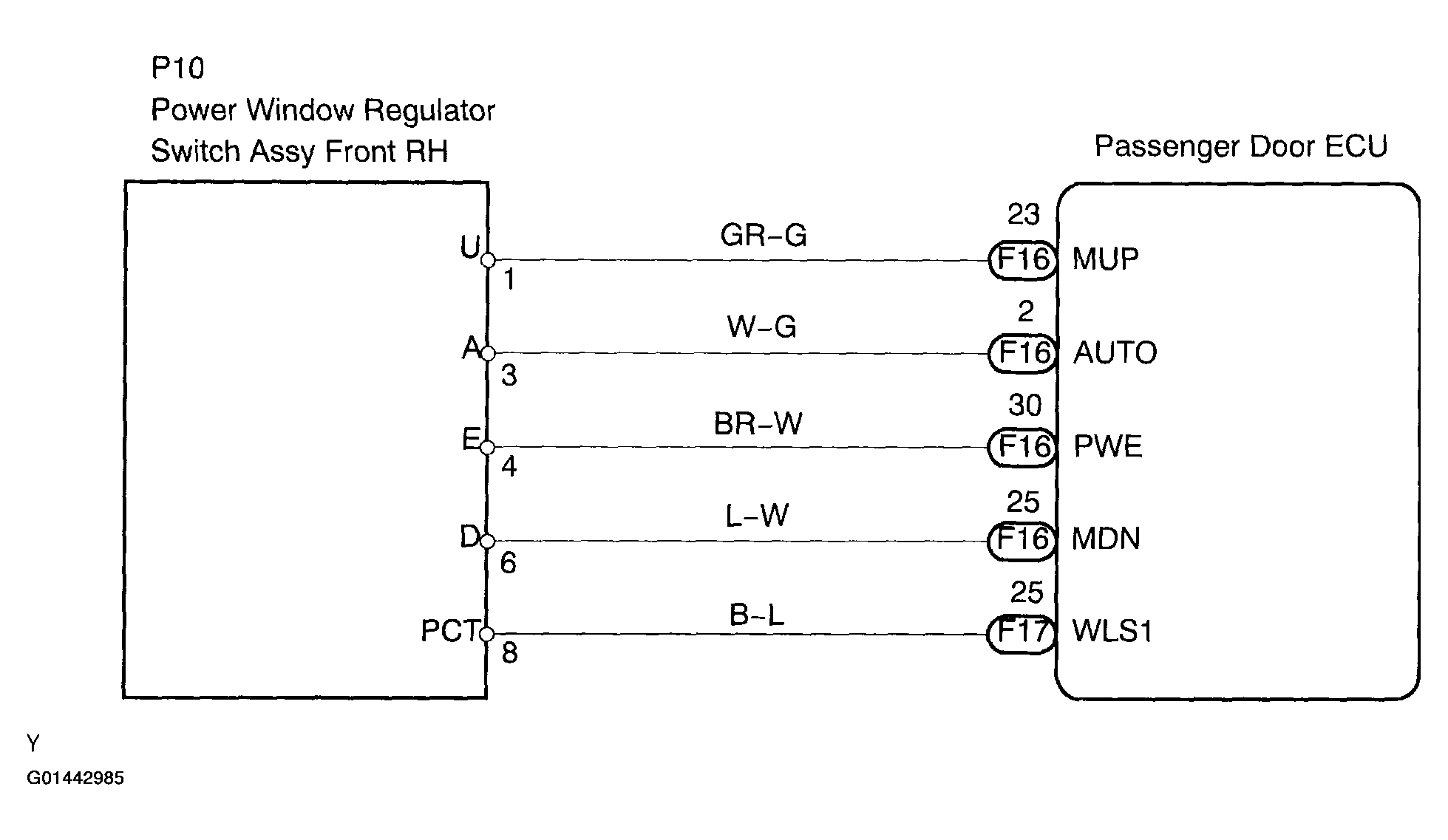

Fig 1: Power Window Regulator Switch Circuit On Passenger Side - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
