Power Window Control System - Diagnosis
›
System Diagram
System Diagram

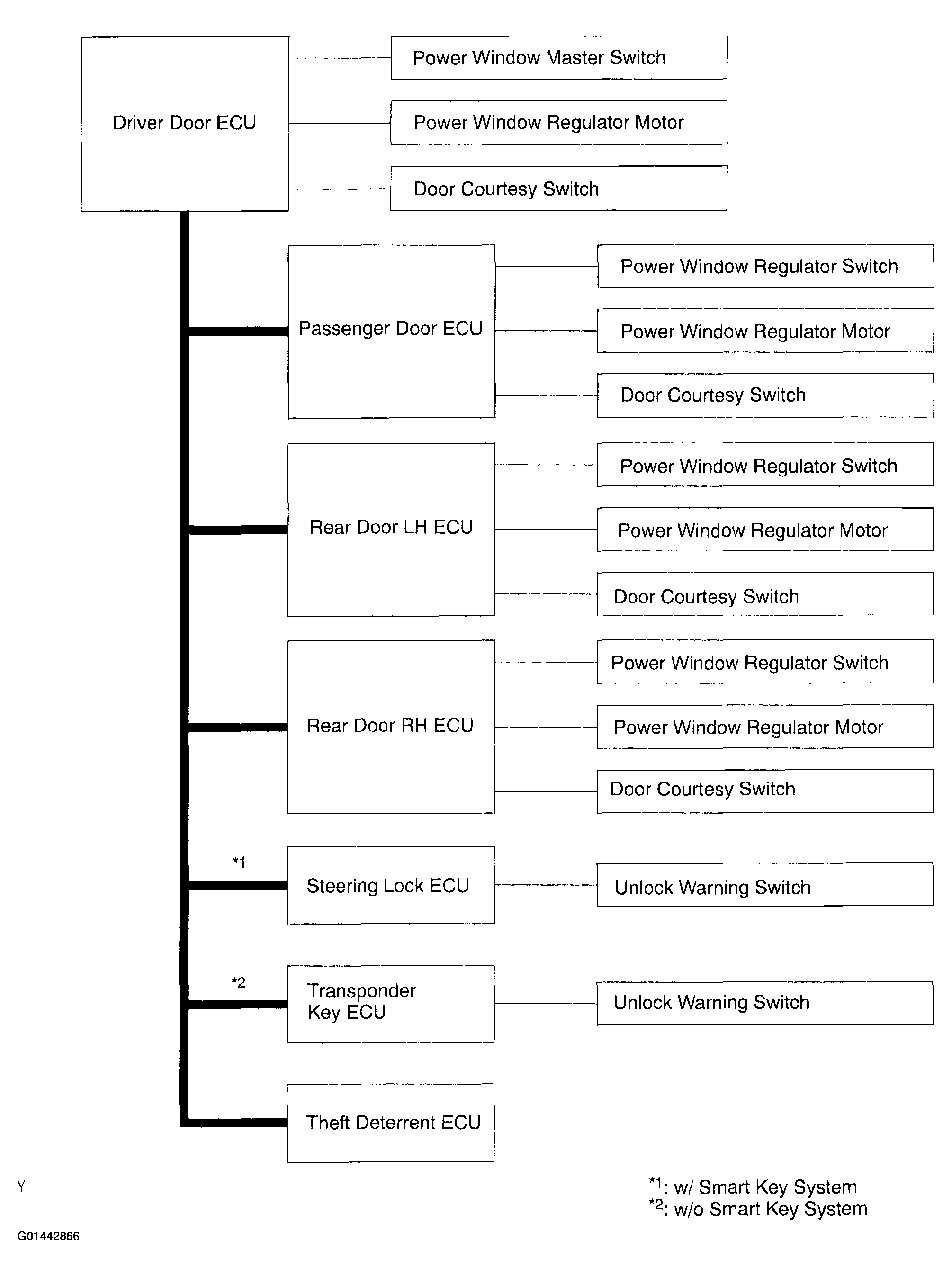

Fig 1: System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

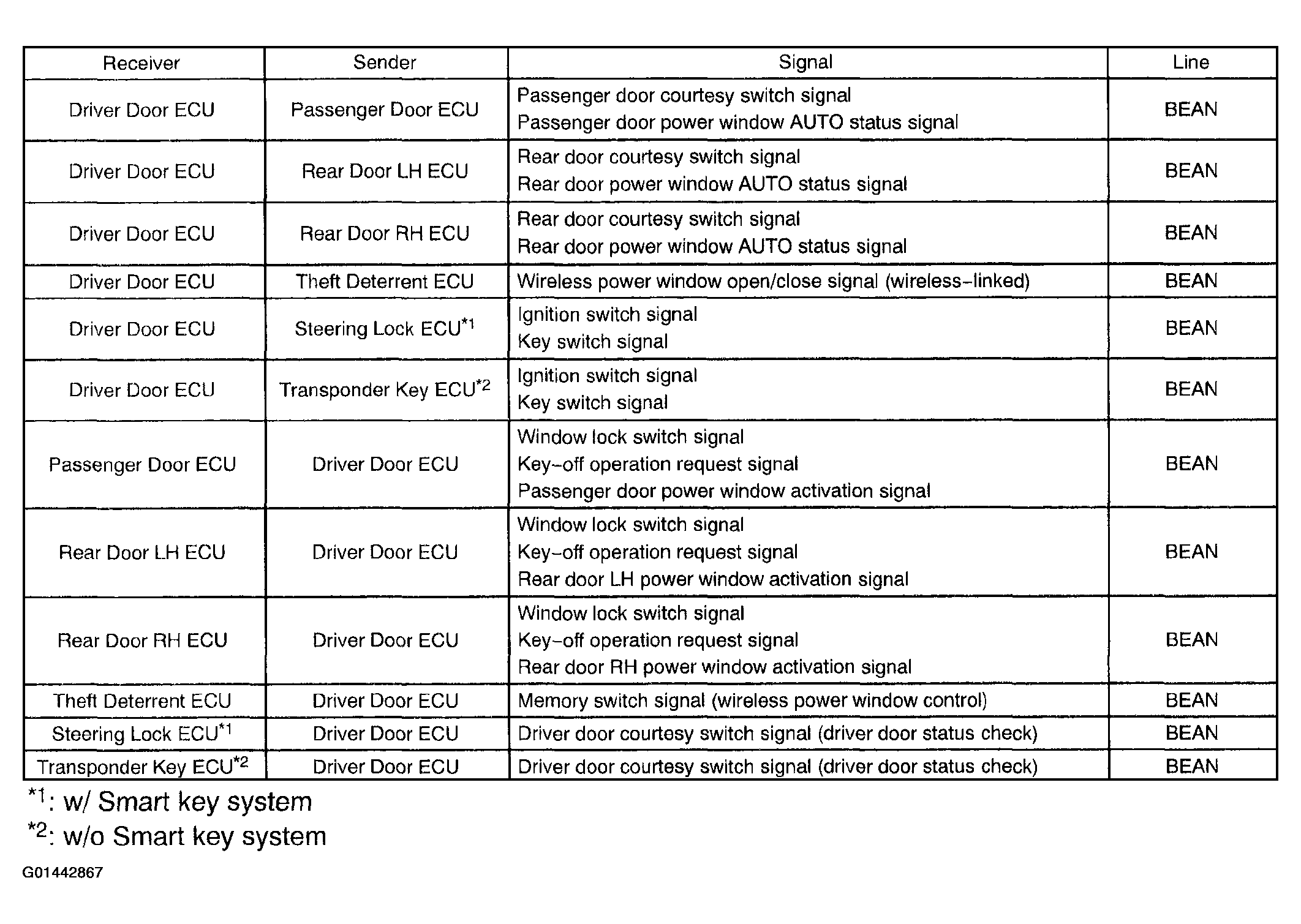

Fig 2: Communication Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
