Speed Sensor Rear LH: Components

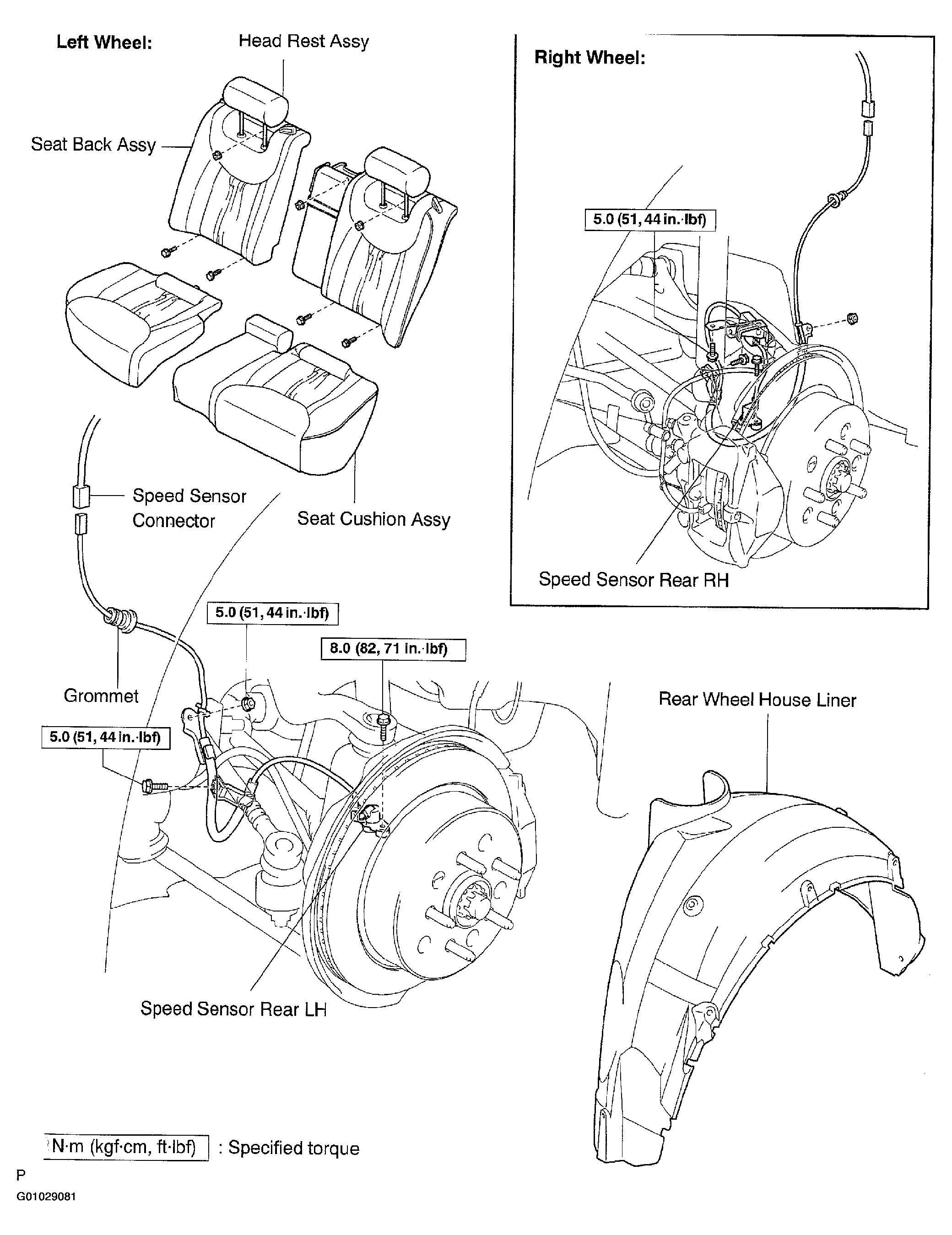

Fig 1: Identifying Speed Sensor Rear LH Components

G01029081

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
