Differential Components: Components

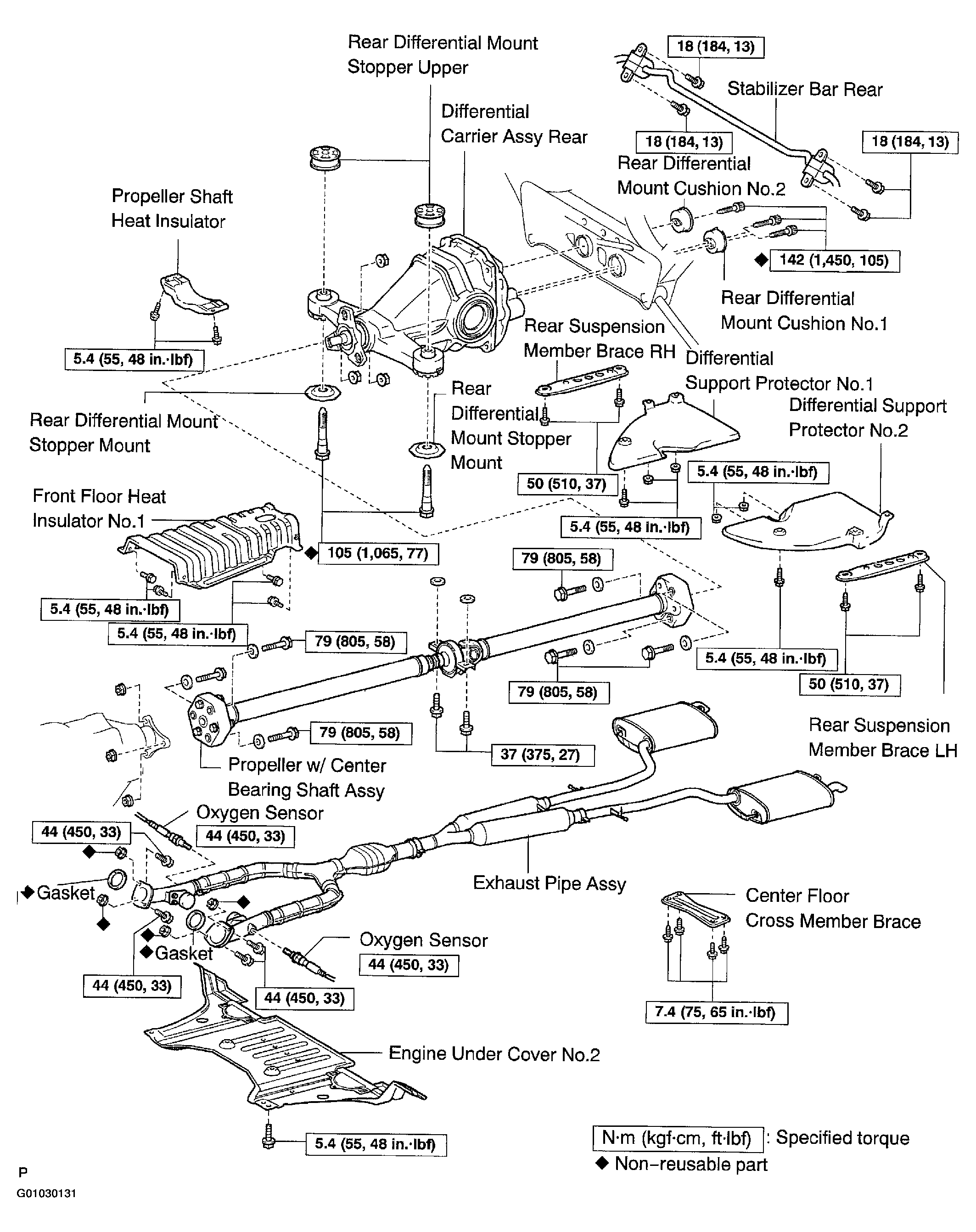

Fig 1: Identifying Differential Components (1 Of 2)
G01030131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

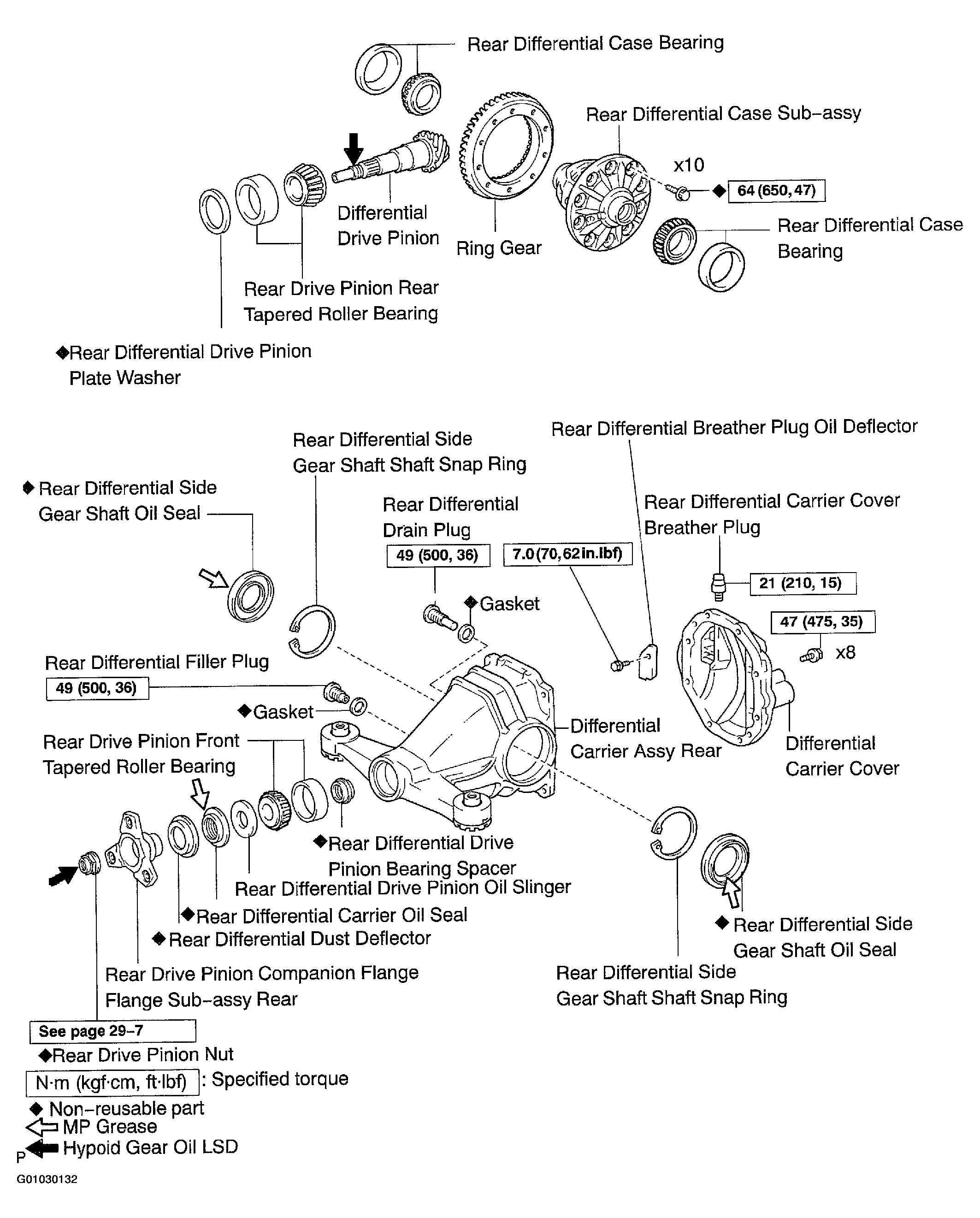

Fig 2: Identifying Differential Components (2 Of 2)
G01030132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
