Differentials & Drive Axles: Differential: Components

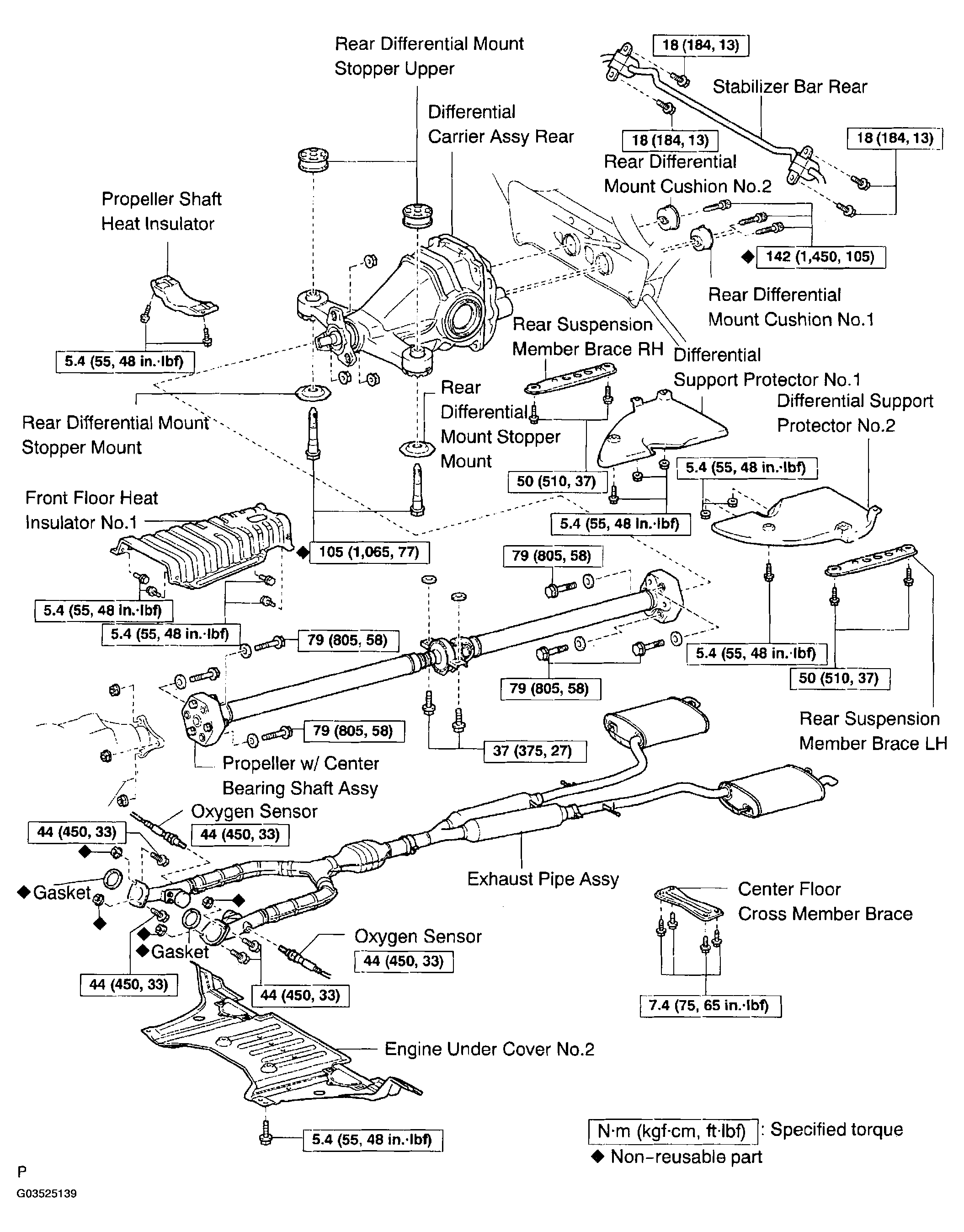

Fig 1: Exploded View Of Differential Components And Torque Specifications (1 Of 2)
G03525139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

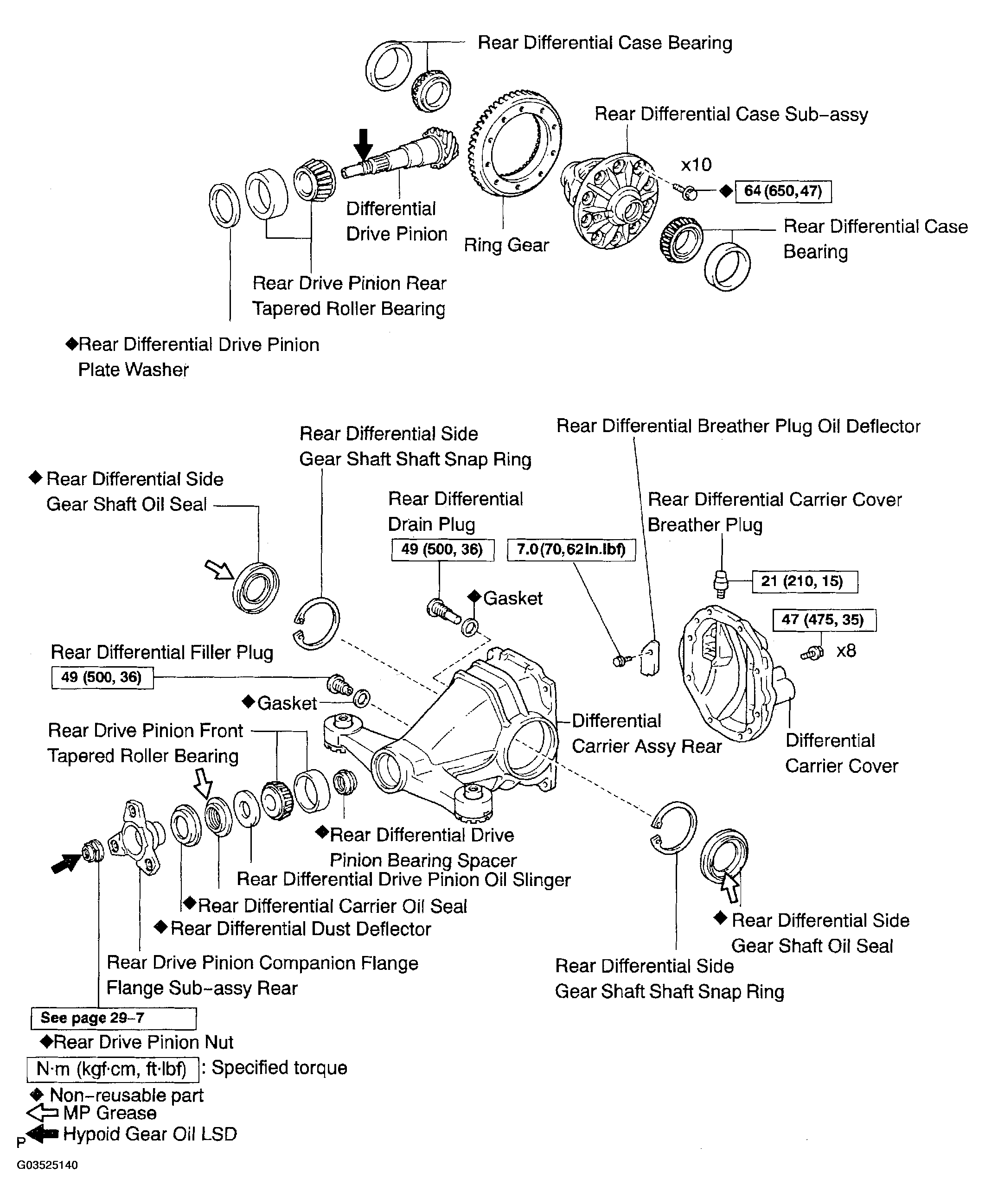

Fig 2: Exploded View Of Differential Components And Torque Specifications (2 Of 2)
G03525140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
