System Description

GAUGE:

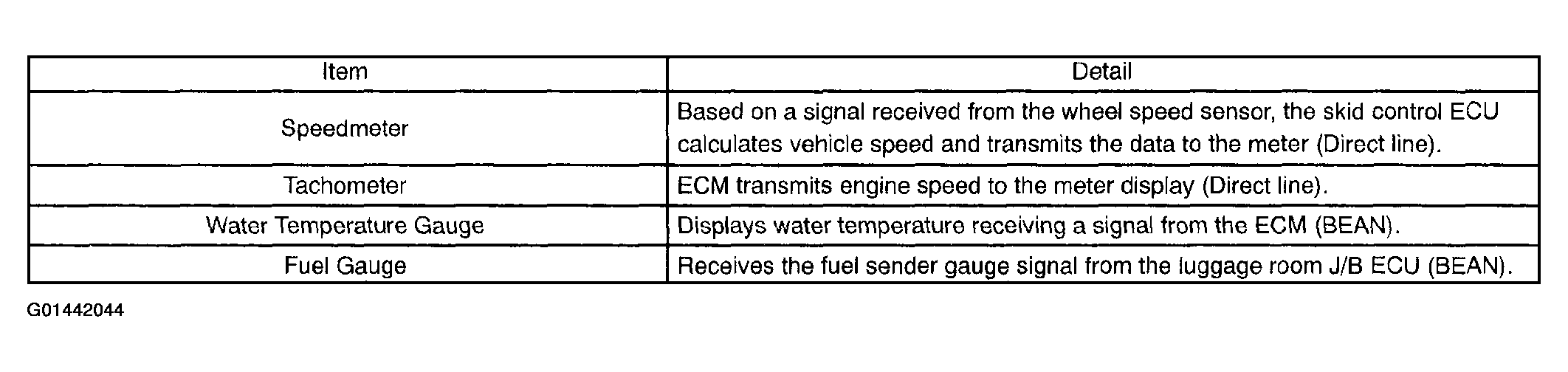

Fig 1: Gauge - System Description Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING/INDICATOR:

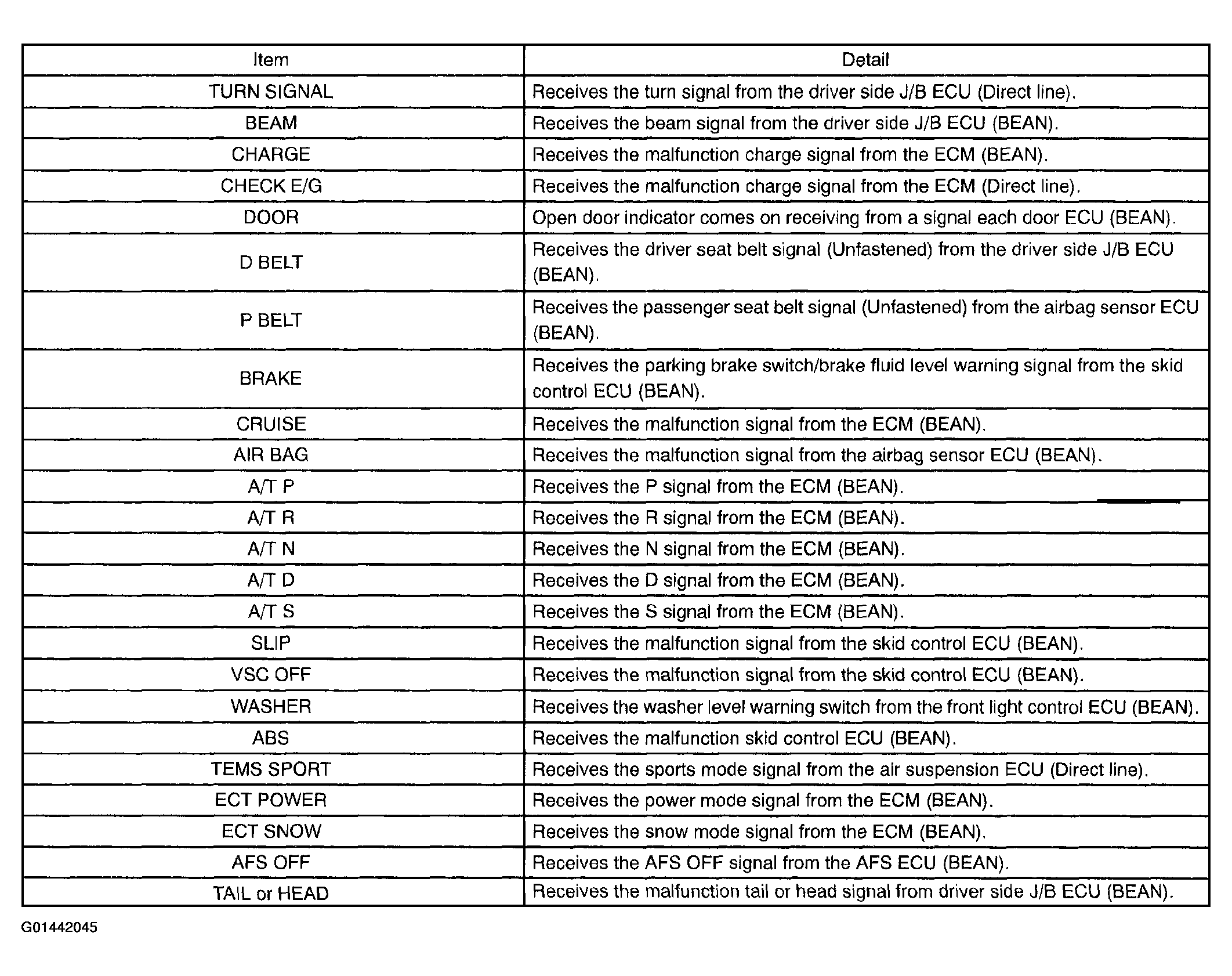

Fig 2: Warning/Indicator - System Description Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

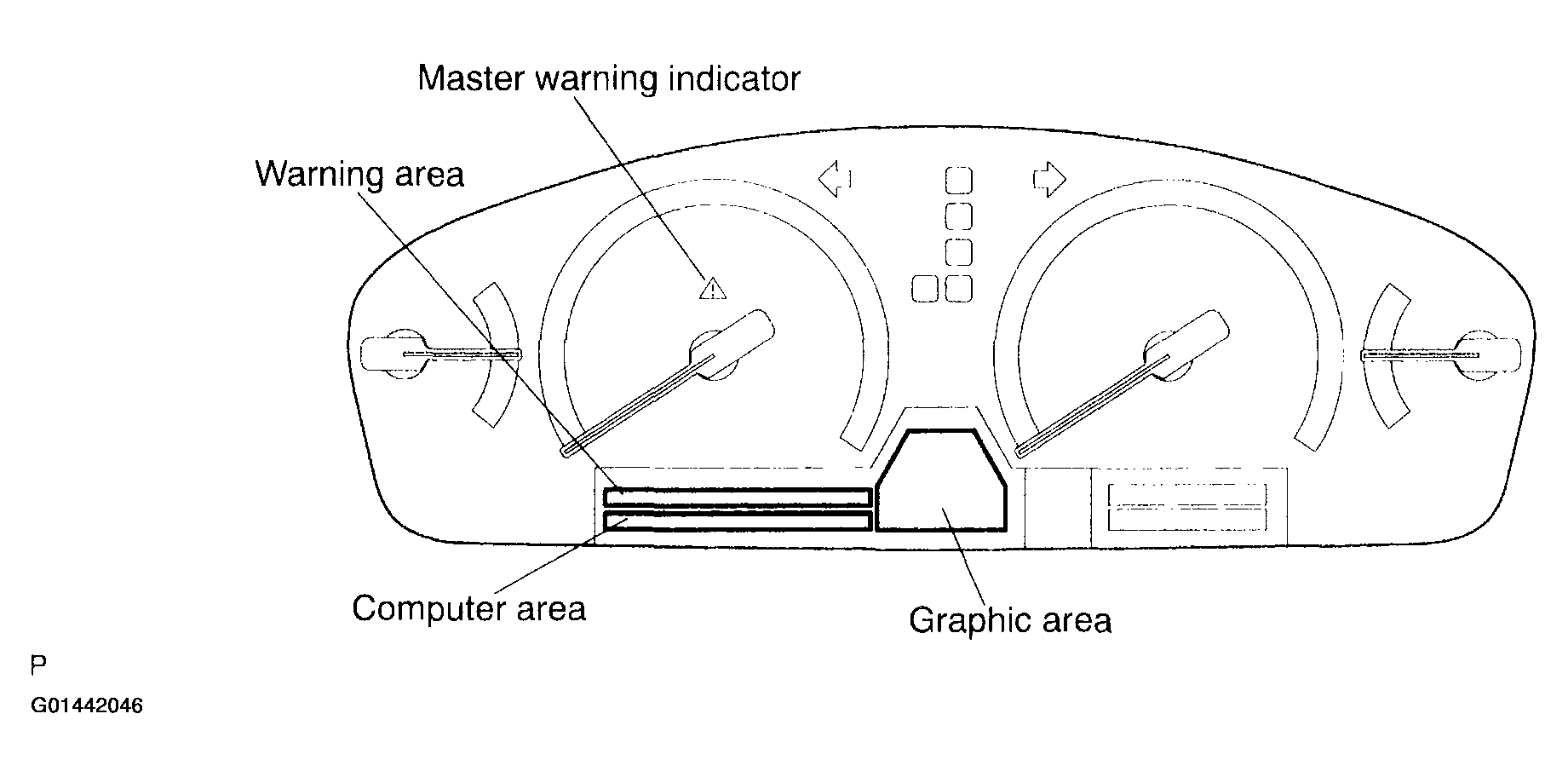

Fig 3: Identifying Multi-Information Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

• The multi-information display consists of three display areas (computer area, graphic area, and warning area) and the master warning indicator. These areas display the contents given in the figure Fig 4 below.
• A steering pad switch (for multi-information display) that switches the contents of the multi-information display has been provided on the steering wheel.

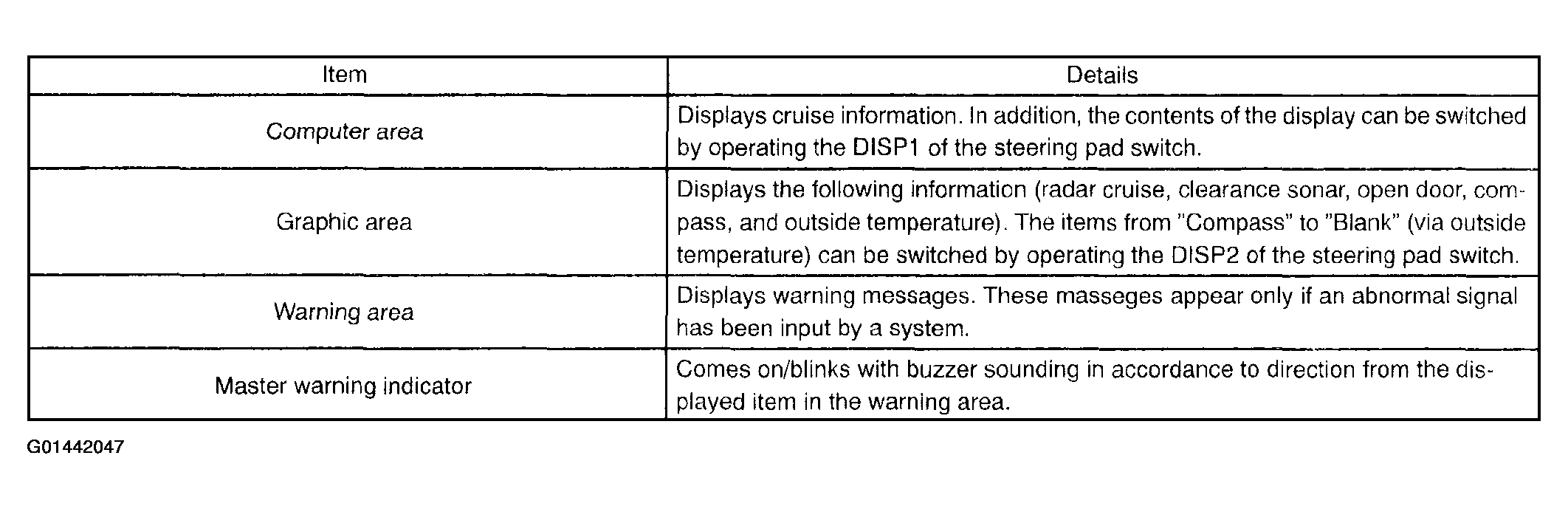

  Fig 4: Multi-Information Display Items Detail Chart

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

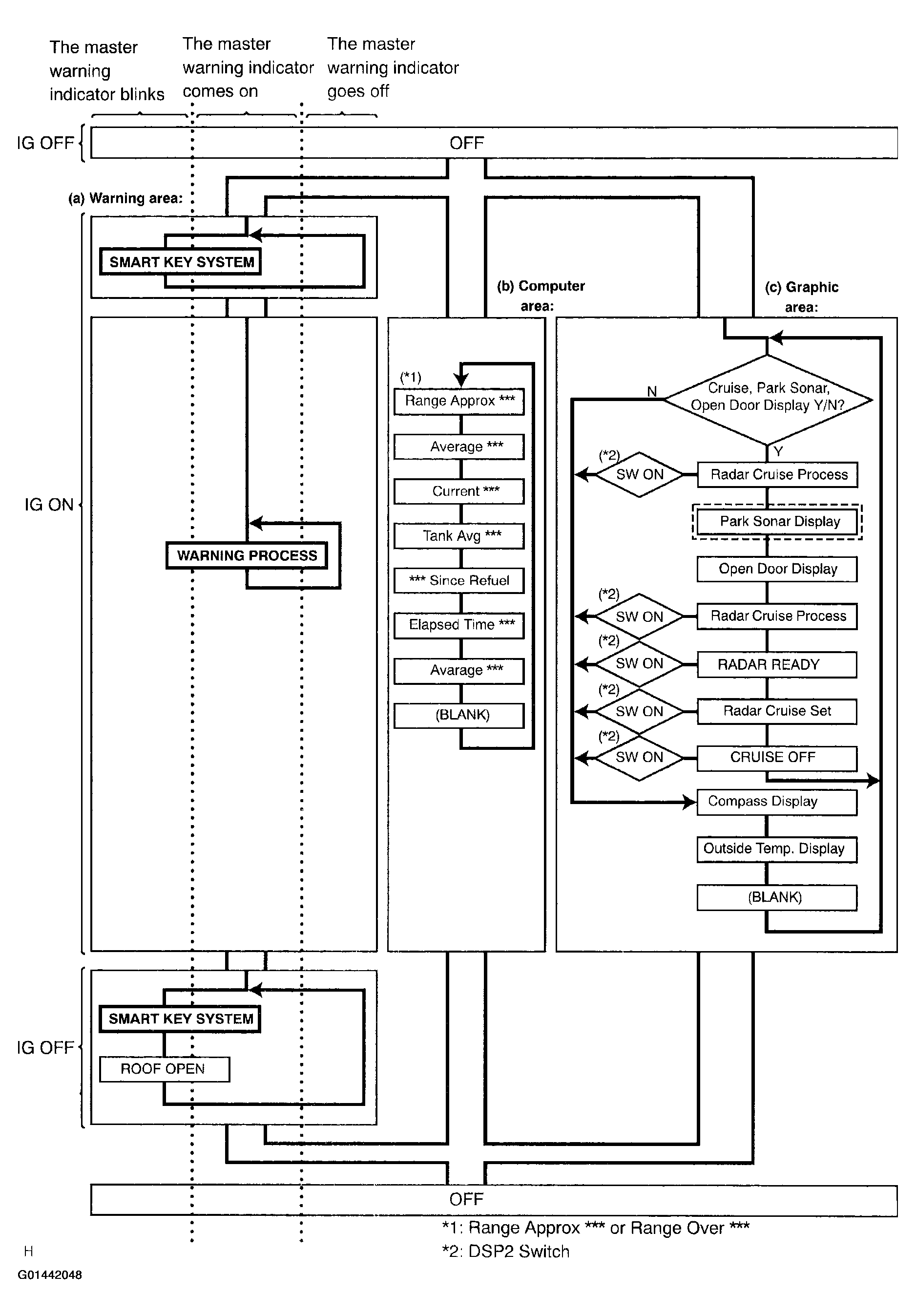

Fig 5: Multi-Information Display Flow Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Warning area

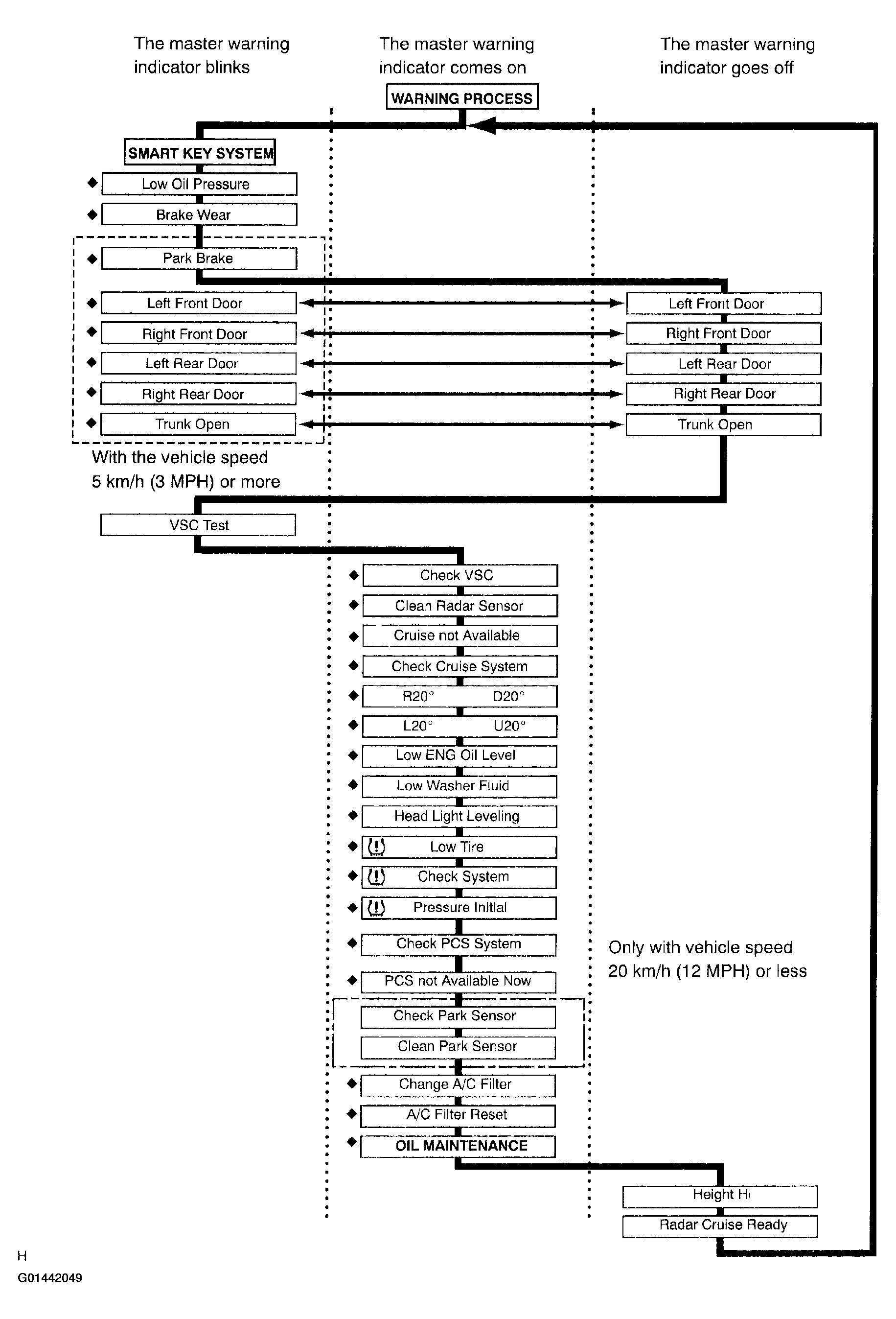

   Fig 6: Multi-Information Display Flow Chart (2 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

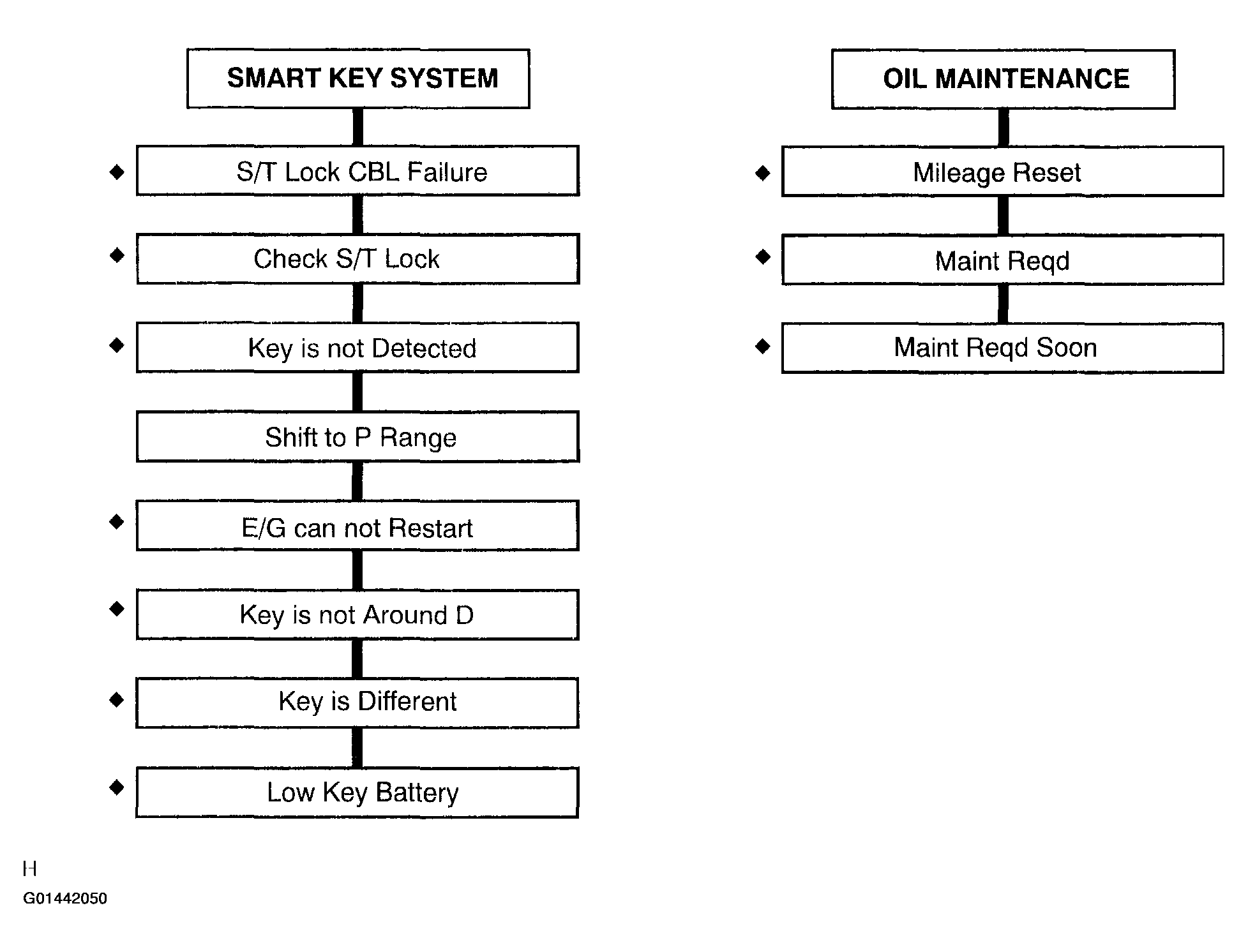

   Fig 7: Multi-Information Display Flow Chart (3 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • Warning process:
     • The warning items can be scrolled automatically. (Unable to switch manually)
     • When any malfunction in the framed items (black diamond) is detected, a warning buzzer (a single sound) sounds. It sounds only when the malfunction occurs for the first time. The item is displayed along with the buzzer sounding.
     • The most current warning item is displayed first.
     • When two or more warning occur, they are displayed in turn at an interval of 2 seconds. When a warnings occurs, the item is displayed for 6 seconds only the first time.
   • Smart Key System:
     • The buzzer in the smart key system is controlled by a signal from the security ECU.

     HINT:

     The buzzer sounds continuously if the item "Shift to P range" is displayed.

   • Oil Maintenance Display:
     • The items are displayed in accordance with the distance after reset (see ON-VEHICLE INSPECTION ).
2. Computer area
   • The items from "Range Over ^{* * *} / Range Approx ^{* * *} " to "BLANK" can be changed with the DISP1 (switch) of the steering pad switch.
3. Graphic area
   • Open Door Display:
     • The display is shown when any of the doors are opens.

HINT:

If the warning item other than the door warning is detected at the same time, the master warning comes on/ blinks in accordance to direction from the displayed item in the warning area.

• Park Sonar Display:
  • See HOW TO PROCEED WITH TROUBLESHOOTING for details on the park sonar display.
  • The display blinks when the clearance is the closest.
• Others:
  • The items "COMPASS", "OUTSIDE TEMPERATURE" and "BLANK" can be changed with the DISP2 (switch) of the steering pad switch.
  • While +B is connected, the mode that was on when the ignition switch was turned off the last time is displayed.
  • When the display is changed from radar cruise, it is displayed for only 6 seconds and then returns to the radar cruise display.
  • While the radar cruise is on, "RADAR CRUISE READY" is displayed in the warning area if the park sonar and door open displays are in the graphic area.
• Radar Cruise Display:
  • See HOW TO PROCEED WITH TROUBLESHOOTING for details on the radar cruise display.
  • The radar cruise set display is interrupted for only 6 seconds while the park sonar and/or open door (displays) are on.
  • The display brinks when warning the driver that the distance with other vehicles is getting to be too close. This warning has priority over all.
