Camshaft Timing Oil Control Valve ASSY LH
›
Components
Camshaft Timing Oil Control Valve ASSY LH: Components

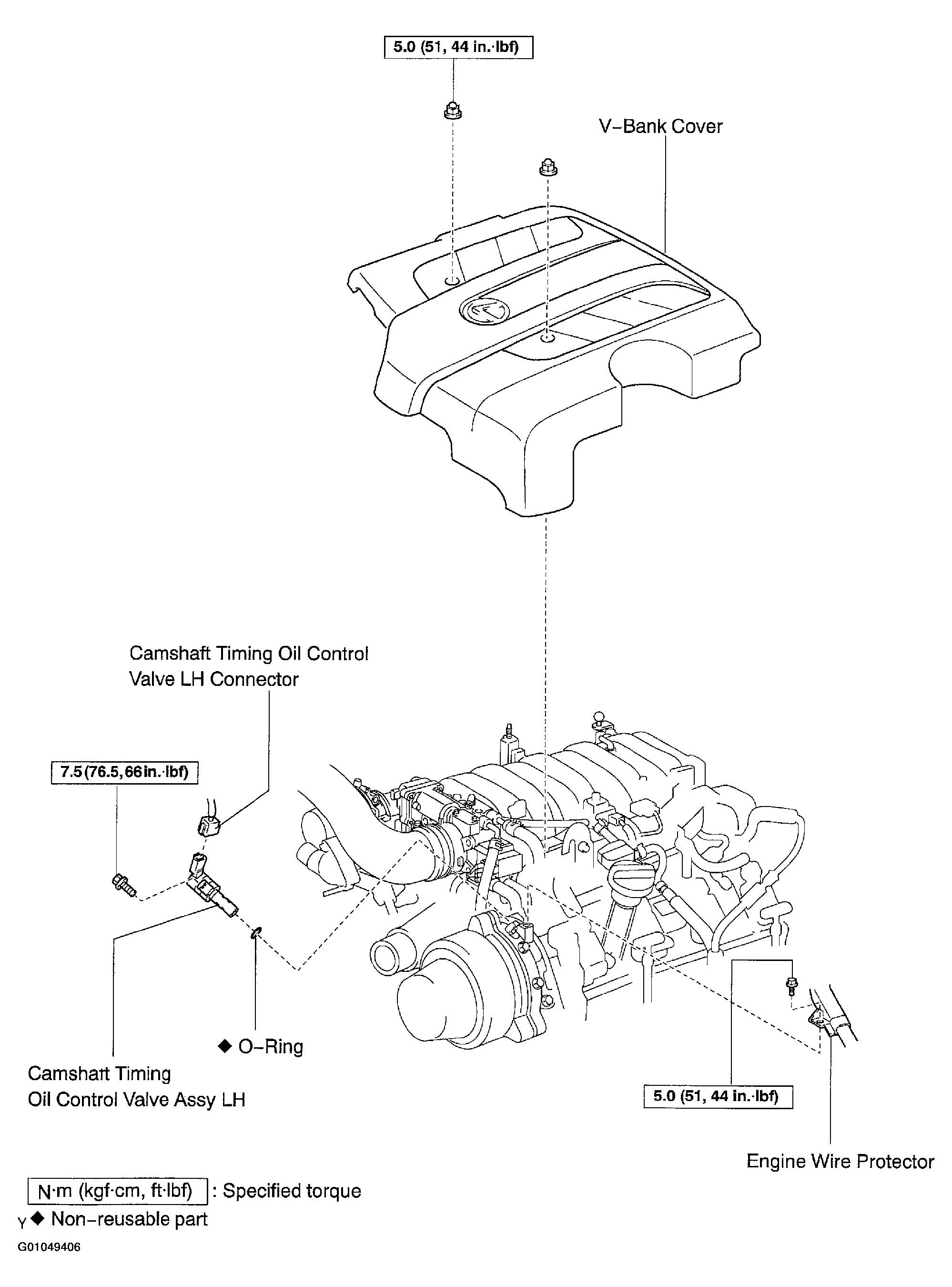

Fig 1: Identifying Camshaft Timing Oil Control Valve Assy LH Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
