Typical Malfunction Thresholds

IAC functional check:

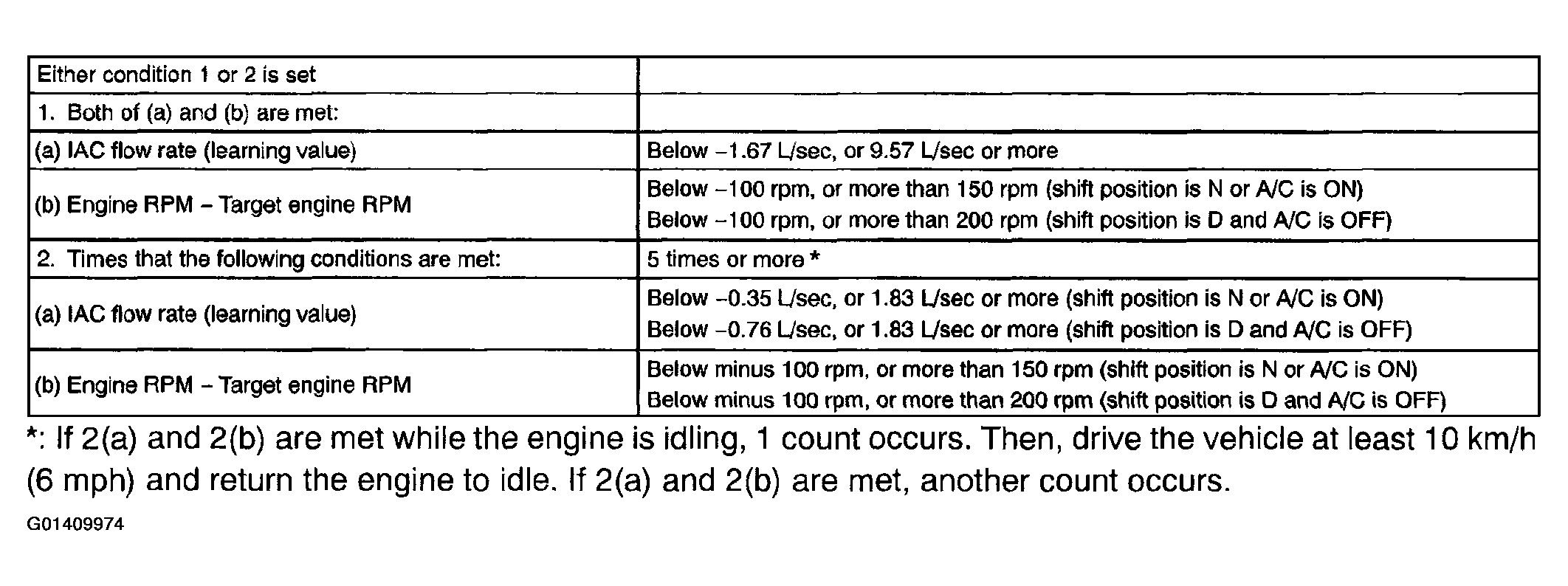

Fig 1: Typical Malfunction Thresholds Chart - IAC Functional Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

IAC range check:

Fig 2: Typical Malfunction Thresholds Chart - IAC Range Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
