SFI System - Diagnosis
›
Location
SFI System - Diagnosis: Location

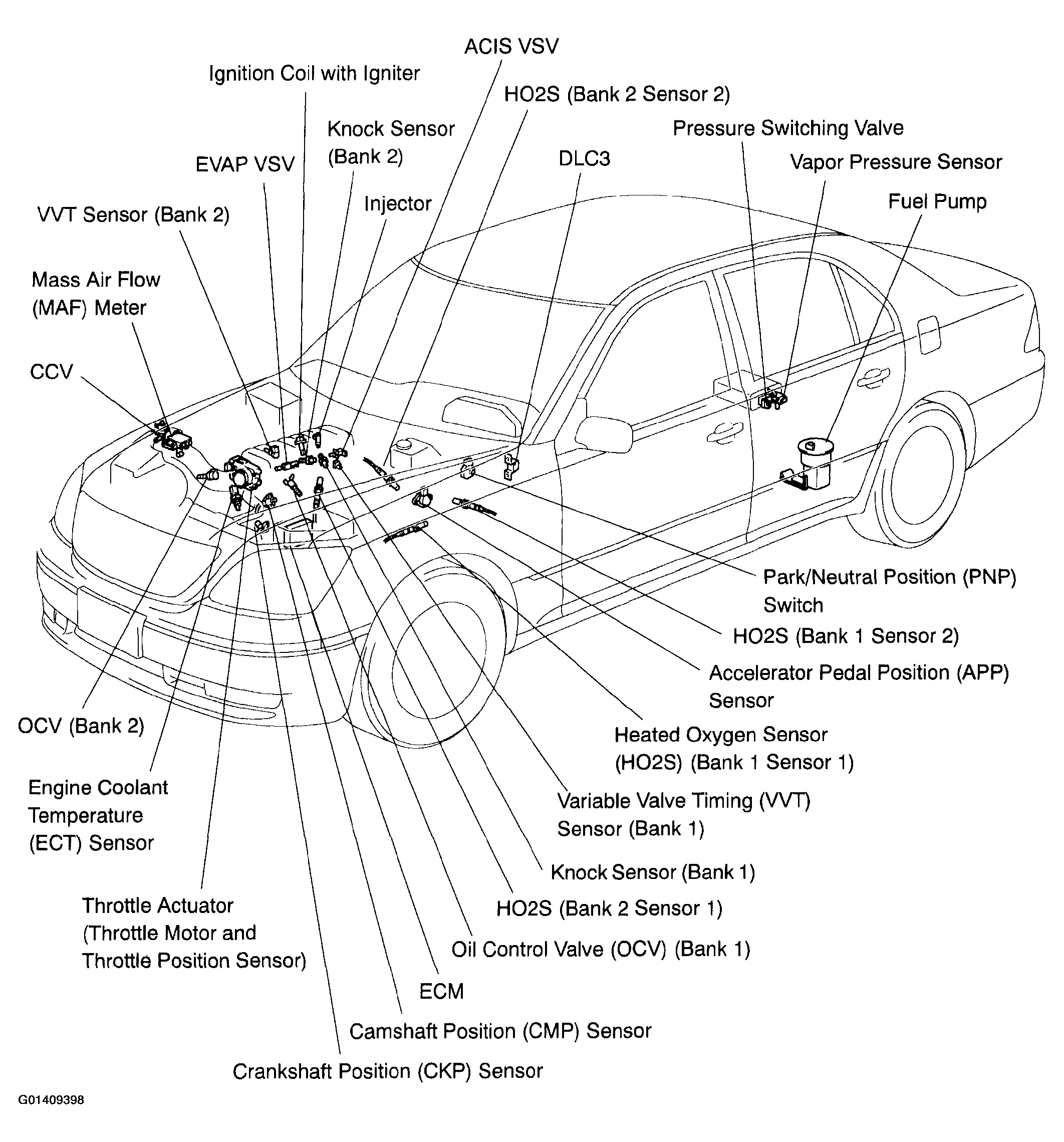

Fig 1: Identifying Part Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
