Mil Circuit: Wiring Diagram

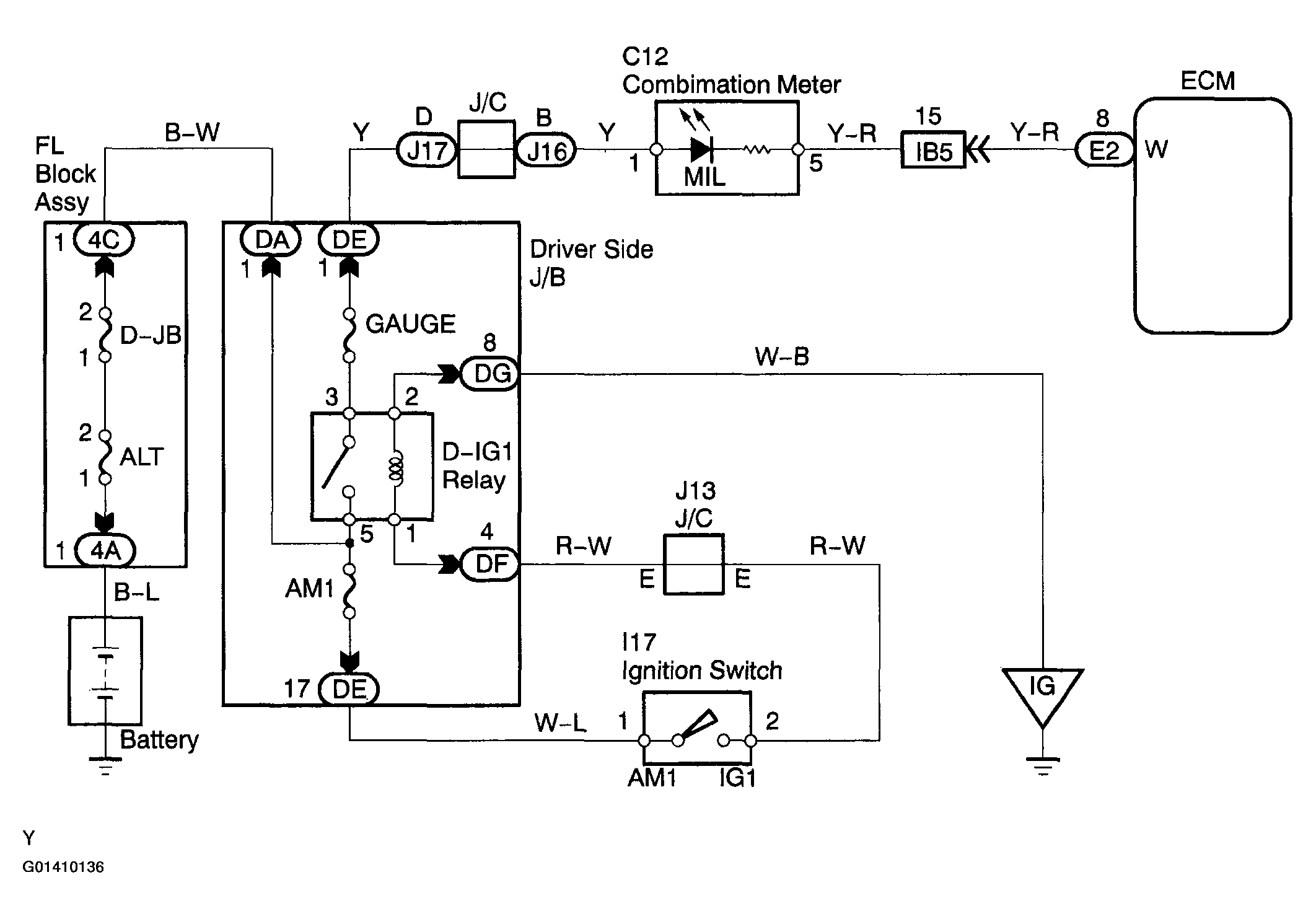

Fig 1: MIL Circuit Wiring Diagram

G01410136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
