Section 473 (Sliding Roof/Convertible)
›
Roof Panel RH Link Sub-ASSY
›
Components
Roof Panel RH Link Sub-ASSY: Components
WARNING:
This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

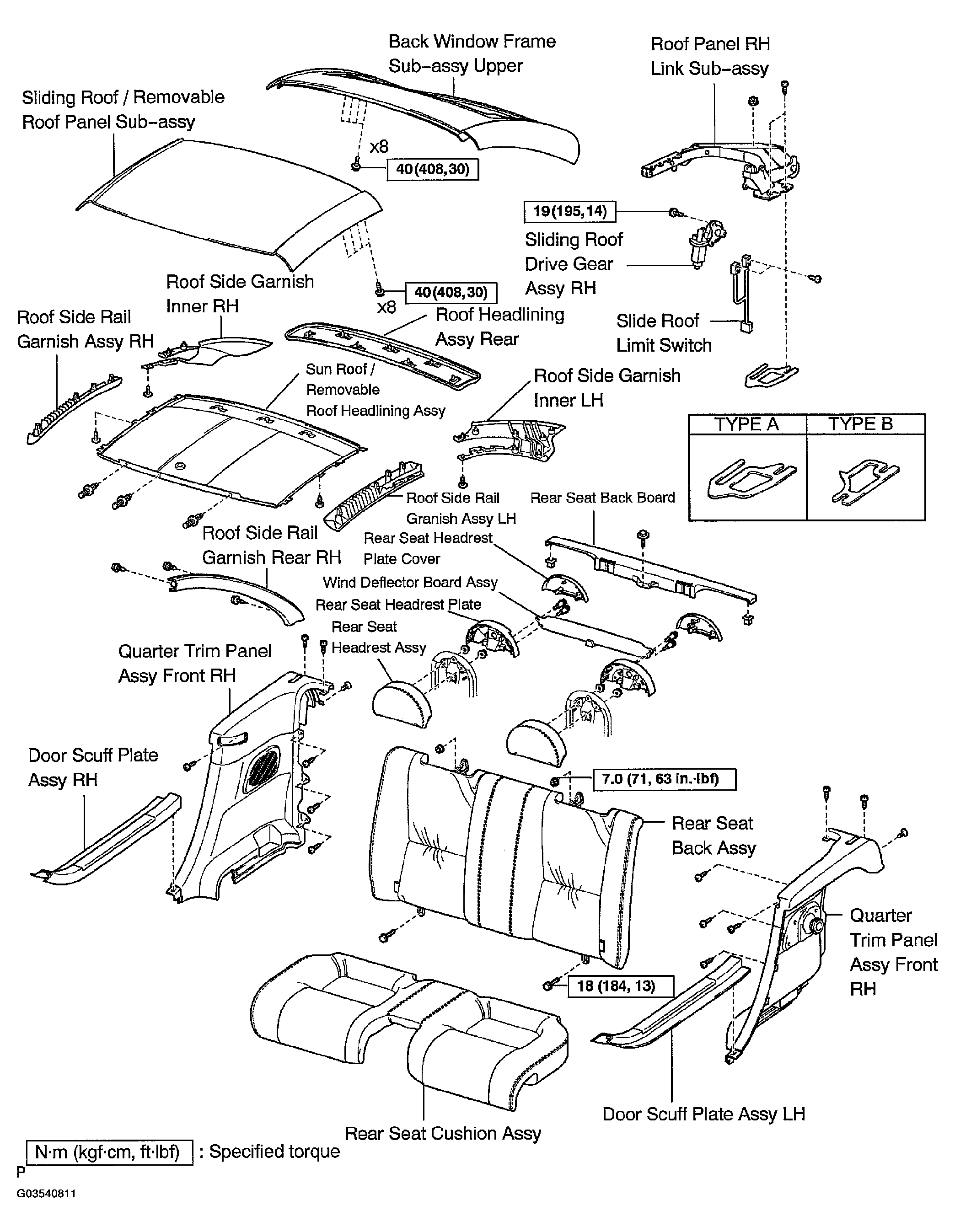

Fig 1: Exploded View Of Roof Panel RH Link Sub-Assy Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

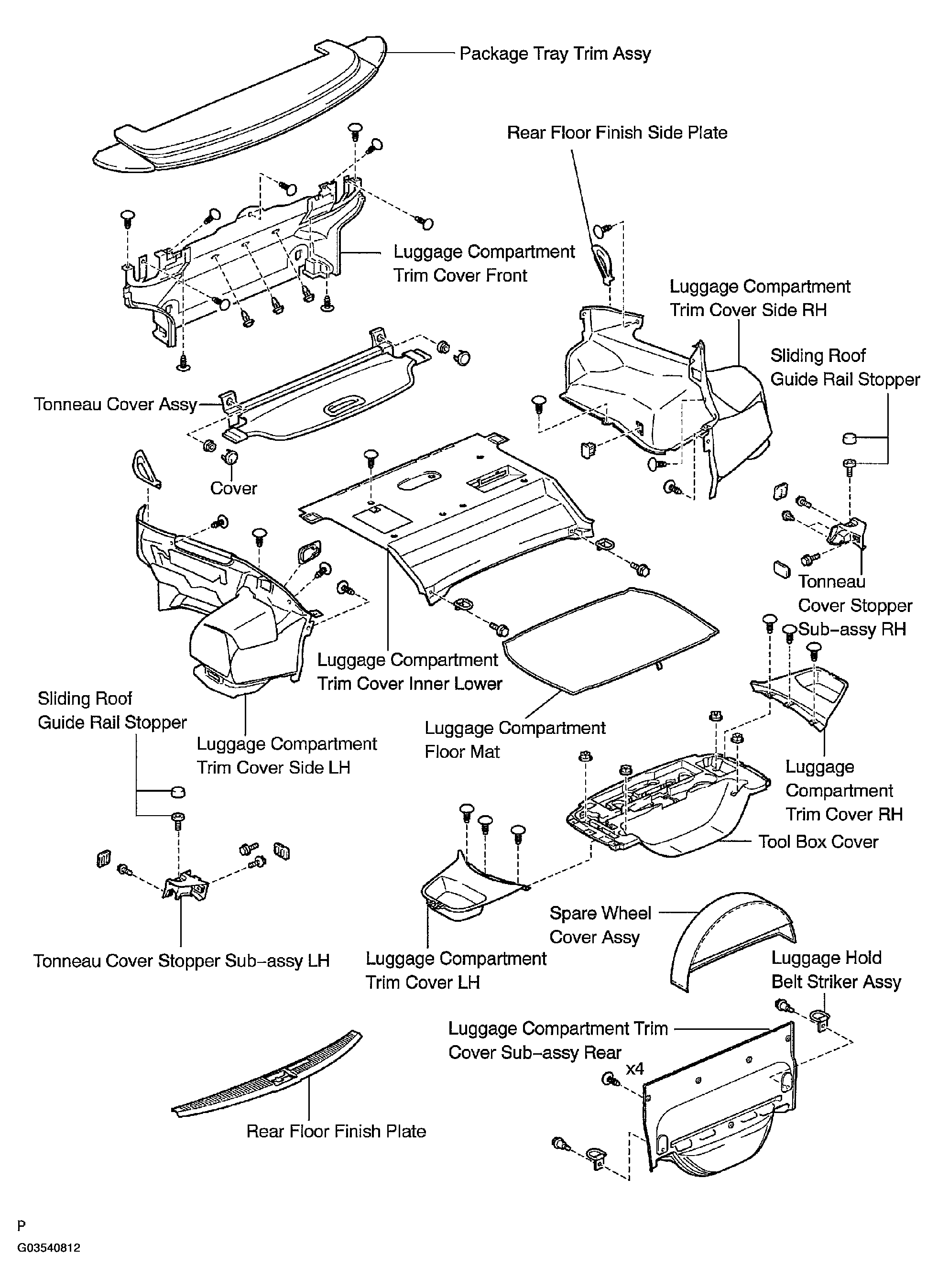

Fig 2: Exploded View Of Roof Panel RH Link Sub-Assy Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
