Inspection And Adjustment Of Joint Angle During Removal And Installation Of Propeller Shaft

  1. When performing operations which involve the removal and installation of the propeller shaft, always check the joint angle. Make adjustments if necessary (see OVERHAUL ).

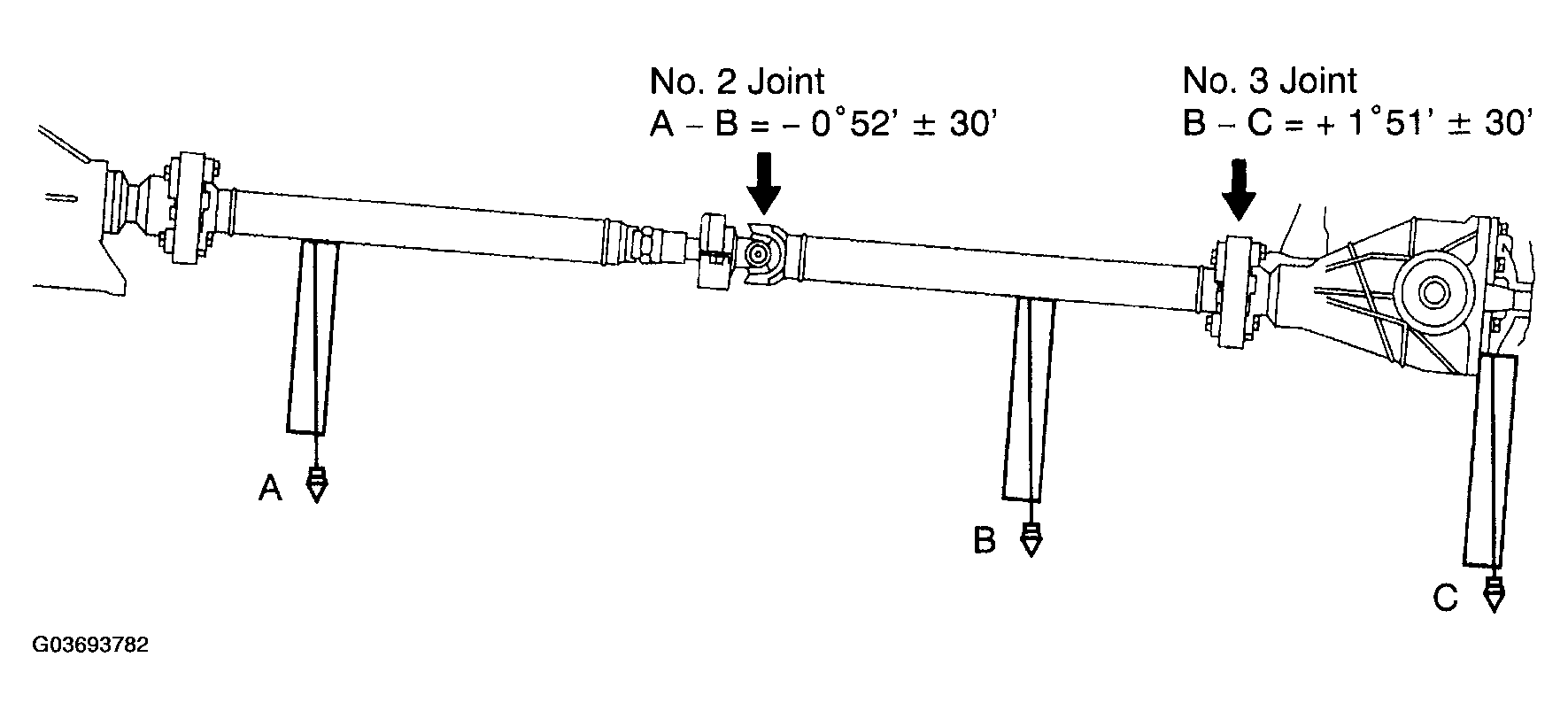

    Fig 1: Identifying Propeller Shaft Joint Angle
    G03693782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
