Front Seat Belt With PRETENSIONER: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the RH side.
• A bolt without a torque specification is shown in the standard bolt chart (See SUSPENSION CONTROL SYSTEM ).

1. REMOVE FRONT DOOR SCUFF PLATE RH (See  OVERHAUL  )
2. REMOVE REAR DOOR SCUFF PLATE RH (See  OVERHAUL  )
3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH (See  OVERHAUL  )
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (See  OVERHAUL  )
5. REMOVE SEAT BELT ANCHOR COVER CAP
   1. Using a screwdriver, pry out the anchor cover cap.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the bolt and floor anchor
      Fig 1: Removing Bolt And Floor Anchor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE CENTER PILLAR GARNISH LOWER RH (See  OVERHAUL  )
7. REMOVE CENTER PILLAR GARNISH UPPER RH (See  OVERHAUL  )
8. REMOVE FRONT SEAT OUTER BELT ASSY RH
   NOTE:

   • Removal of the seat belt pretensioner must be started at least 90 seconds after the ignition switch is turned to the OFF position and the negative (-) terminal cable is disconnected from the battery.
   • Carefully read the notices for the "pretensioner" in the SRS airbag system section and the front seat outer belt section (See AIR BAG SAFETY PRECAUTIONS ).
   1. Disconnect the pretensioner connector, as shown in the illustration.
   2. Disconnect the tension reducer connector.
   3. Remove the 3 bolts and outer belt.

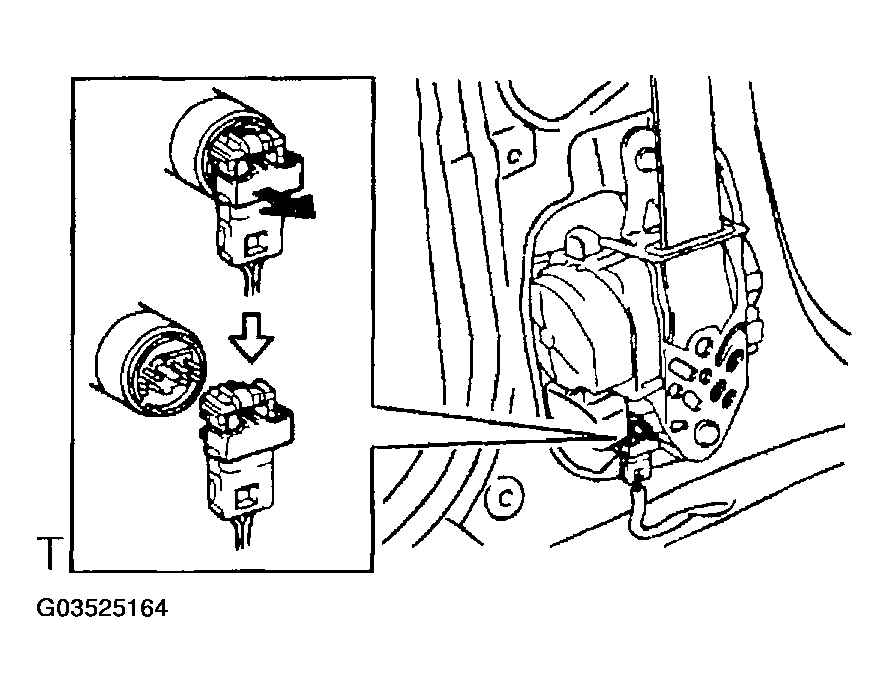

      Fig 2: Disconnecting Pretensioner Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSY
   1. Remove the 2 bolts.
   2. Disconnect the connector and belt anchor adjuster.
10. REMOVE FRONT SEAT INNER BELT ASSY RH
    1. Remove the front seat (See OVERHAUL ).
    2. Disconnect the connector.
    3. Remove the nut and inner belt.
11. INSTALL FRONT SEAT INNER BELT ASSY RH
    1. Install the inner belt with the nut.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

12. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSY
    1. Install the belt anchor adjuster with the 2 bolts.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

13. INSTALL FRONT SEAT OUTER BELT ASSY RH
    NOTE: Do not disassemble the retractor.
    1. Check the amount of inclination required to lock the retractor.
       1. When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

       If operation is not as specified, replace the outer belt assy.

    2. Install the outer belt with the 2 bolts.

       Torque:

       7.5 N.m (76.5 kgf.cm, 66 In.lbf) for upper bolt

       42 N.m (428 kgf.cm, 31 ft.lbf) for lower bolt

       Fig 3: Identifying Front Seat Belt Retractor Tilting Angle

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the pretensioner connector, as shown in the illustration.
    4. Connect the tension reducer connector.
    5. Install the floor anchor cover.
    6. Install the shoulder belt anchor to the shoulder belt anchor adjuster with the bolt.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

    7. Install the front pillar garnish upper.
    8. Install the center pillar garnish lower.
    9. Install the floor anchor to the front seat with the bolt.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

    10. Install the front door scuff plate.
    11. Install the rear door scuff plate.
    12. Install the front door opening trim weatherstrip.
    13. Install the rear door opening trim weatherstrip.

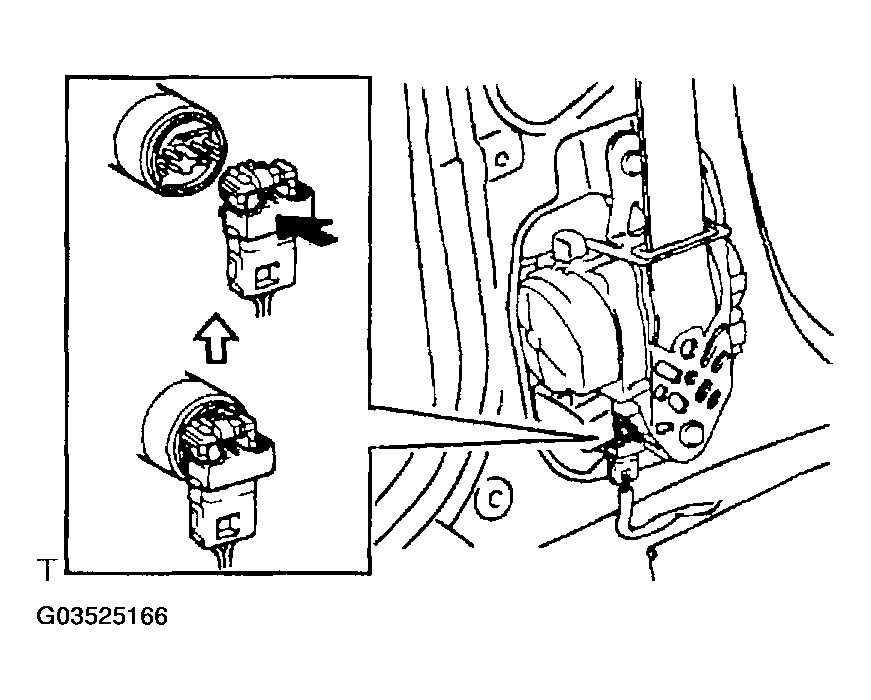

        Fig 4: Connecting Pretensioner Connector

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    14. Check if the ELR locks.
        NOTE: The check should be performed with the outer belt ass installed.
        1. With the belt installed, check that the belt locks when it is pulled out quickly.

        If operation is not as specified, replace the outer belt assy.

    15. Connect the negative battery's terminal.
        NOTE: When disconnecting the negative (-) battery terminal, initialize the following systems after the terminal is reconnected.
        REFERENCE



        System Name	See
        Power Window Control System	INITIALIZATION
        Front Power Seat Control System	INITIALIZATION
        Back Guide Monitor System	INITIALIZATION

    16. Check the SRS warning lamp (See AIR BAG WARNING LIGHT DOES NOT ILLUMINATE ).
