Power Shoulder Belt Anchorage System: Location

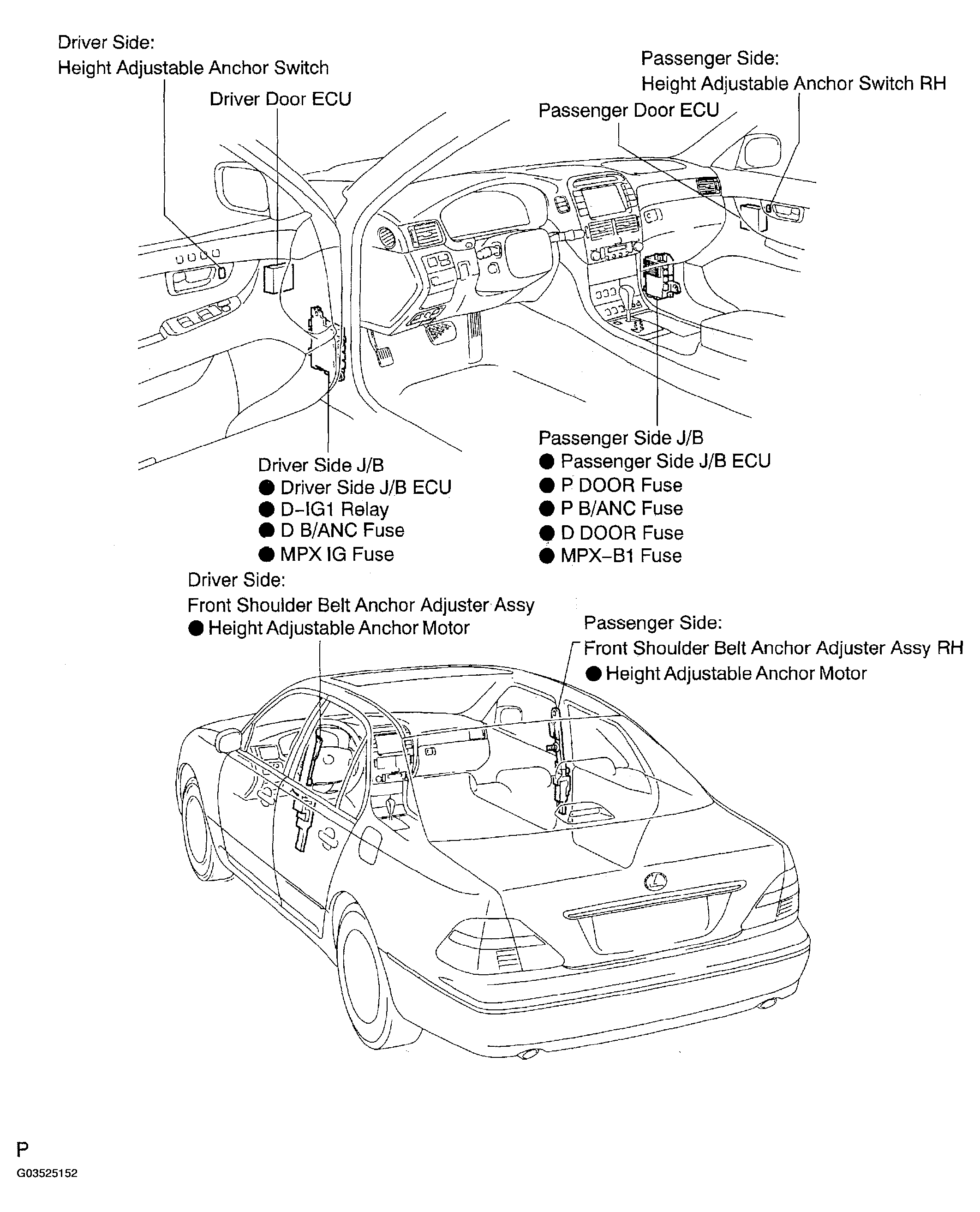

Fig 1: Locating Power Shoulder Belt Anchorage System Components Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
