System Diagram
System Diagram

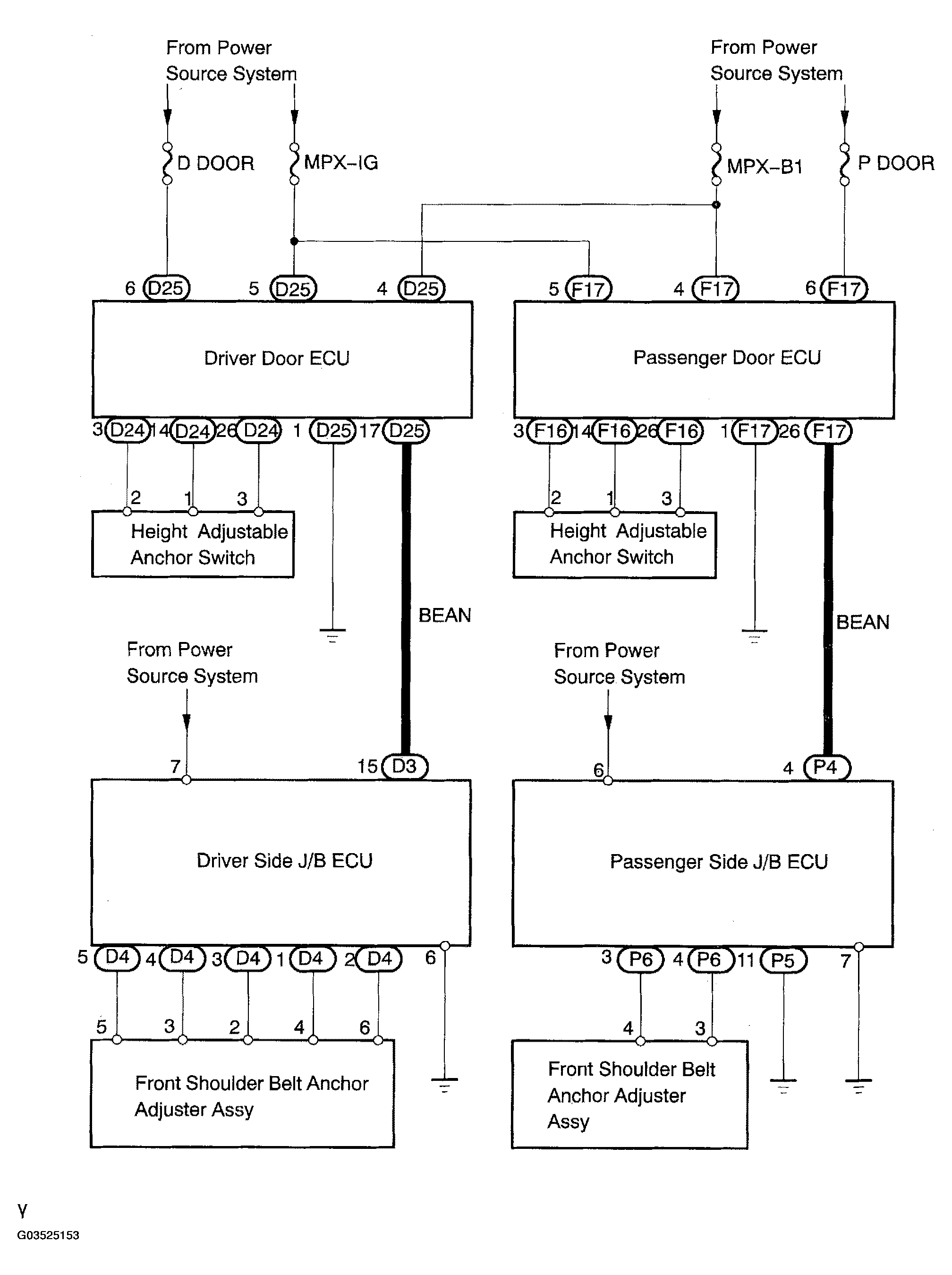

Fig 1: Power Shoulder Belt Anchorage System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
