Seat Belt Warning System: Location

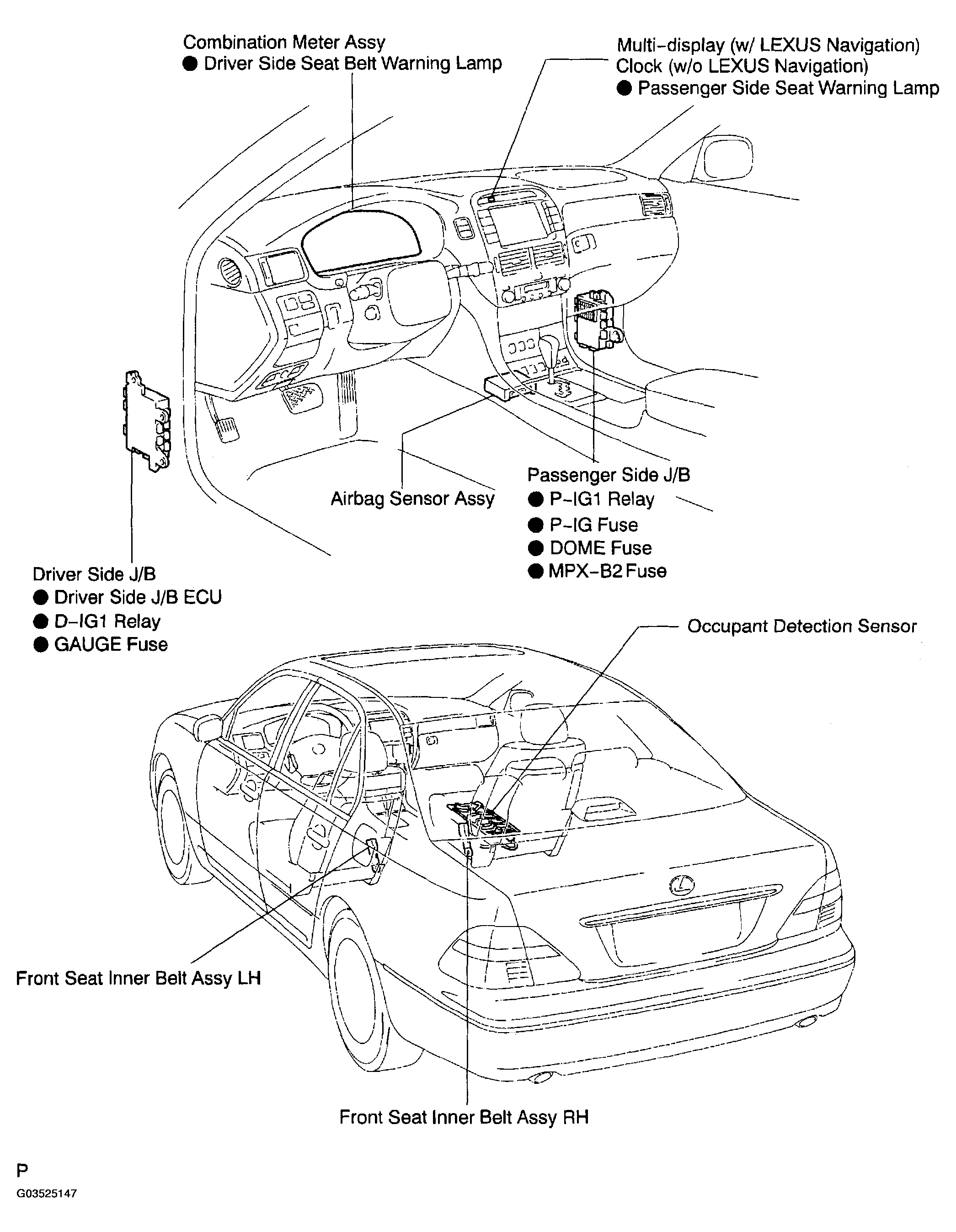

Fig 1: Locating Seat Belt Warning System Components Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
