Seat Belt Warning System - Diagnosis
›
Location
Seat Belt Warning System - Diagnosis: Location

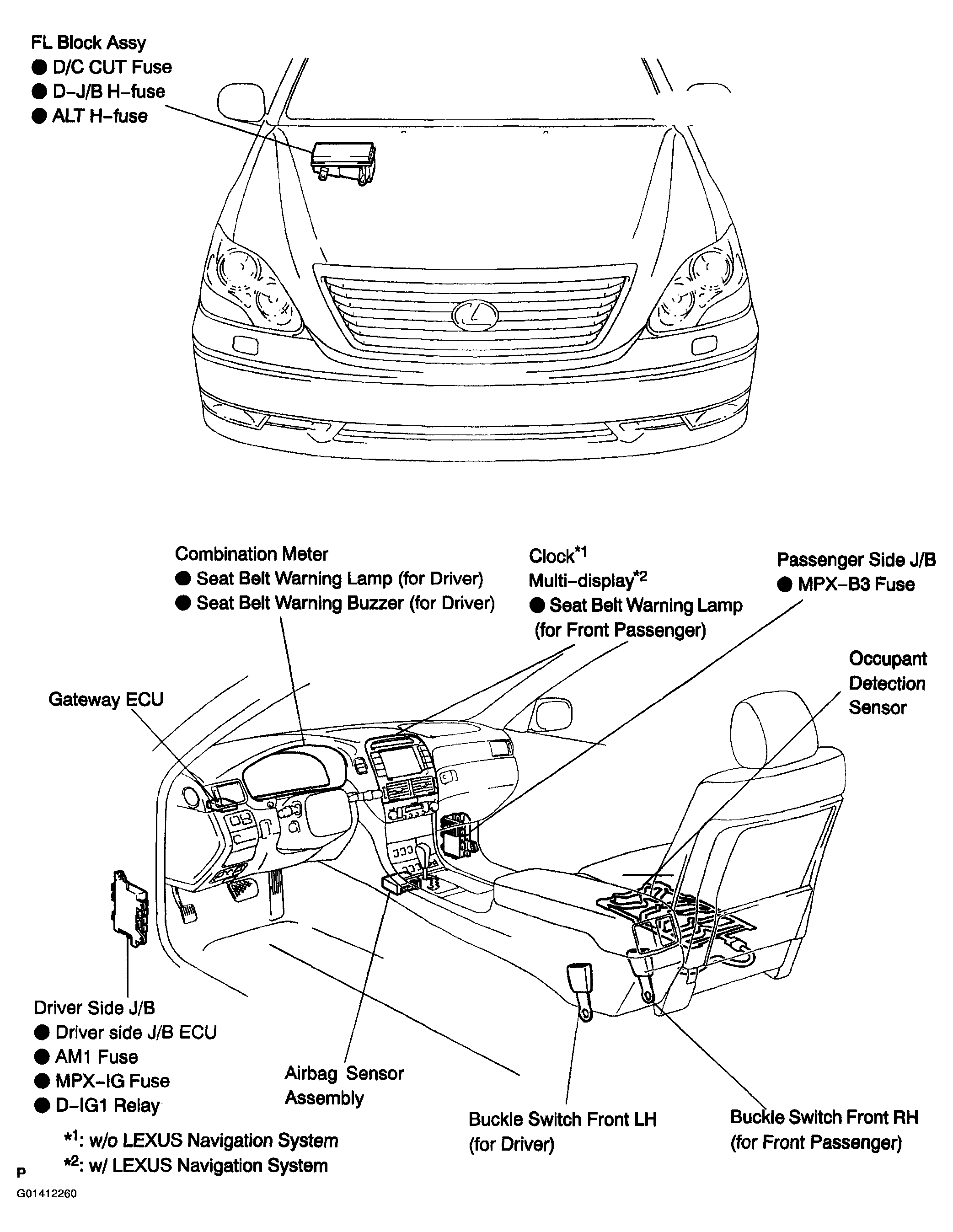

Fig 1: Identifying Component Location Of Seat Belt Warning System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
