Steering Column ASSY: Components

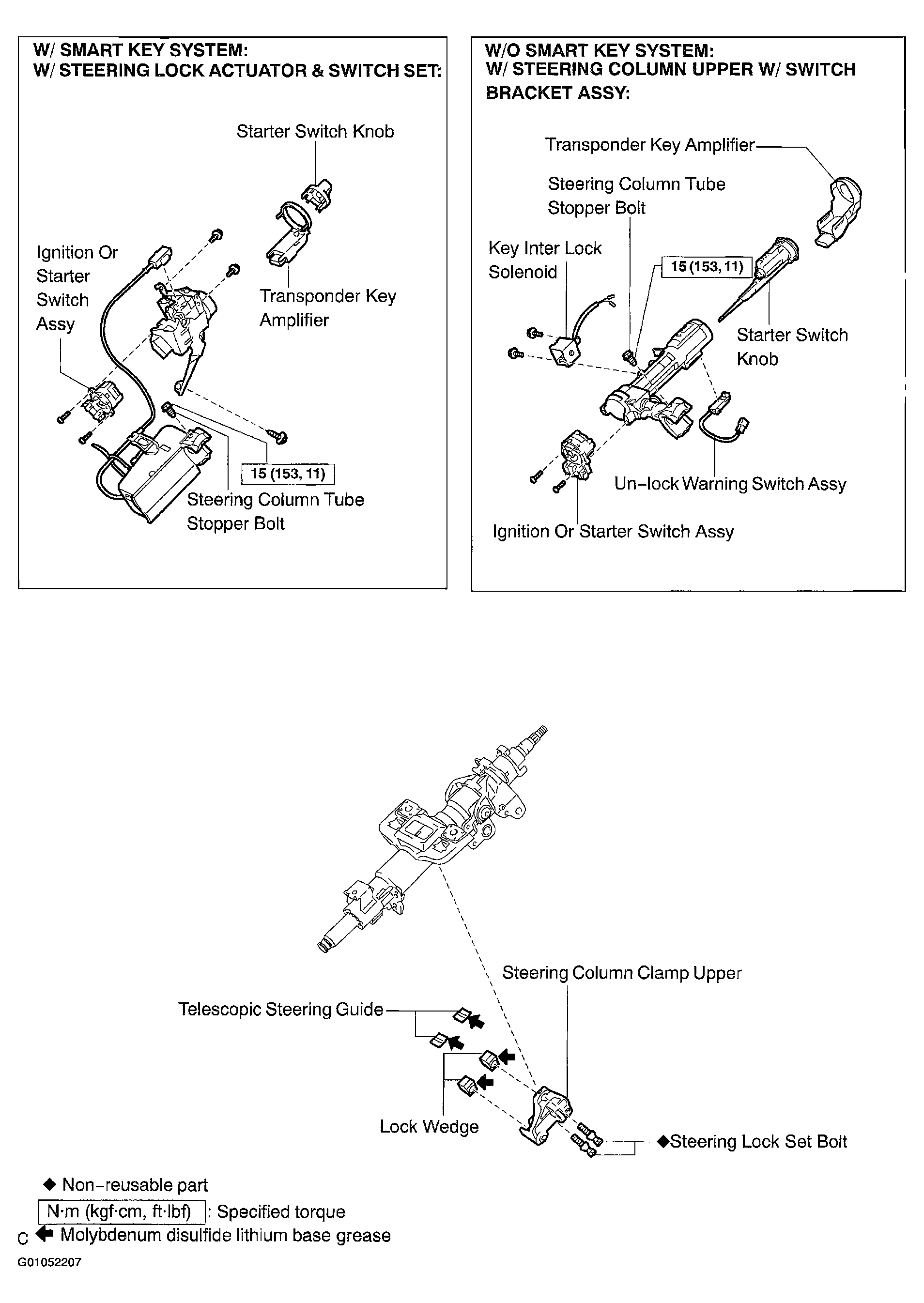

Fig 1: Exploded View Of Steering Column Assy Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

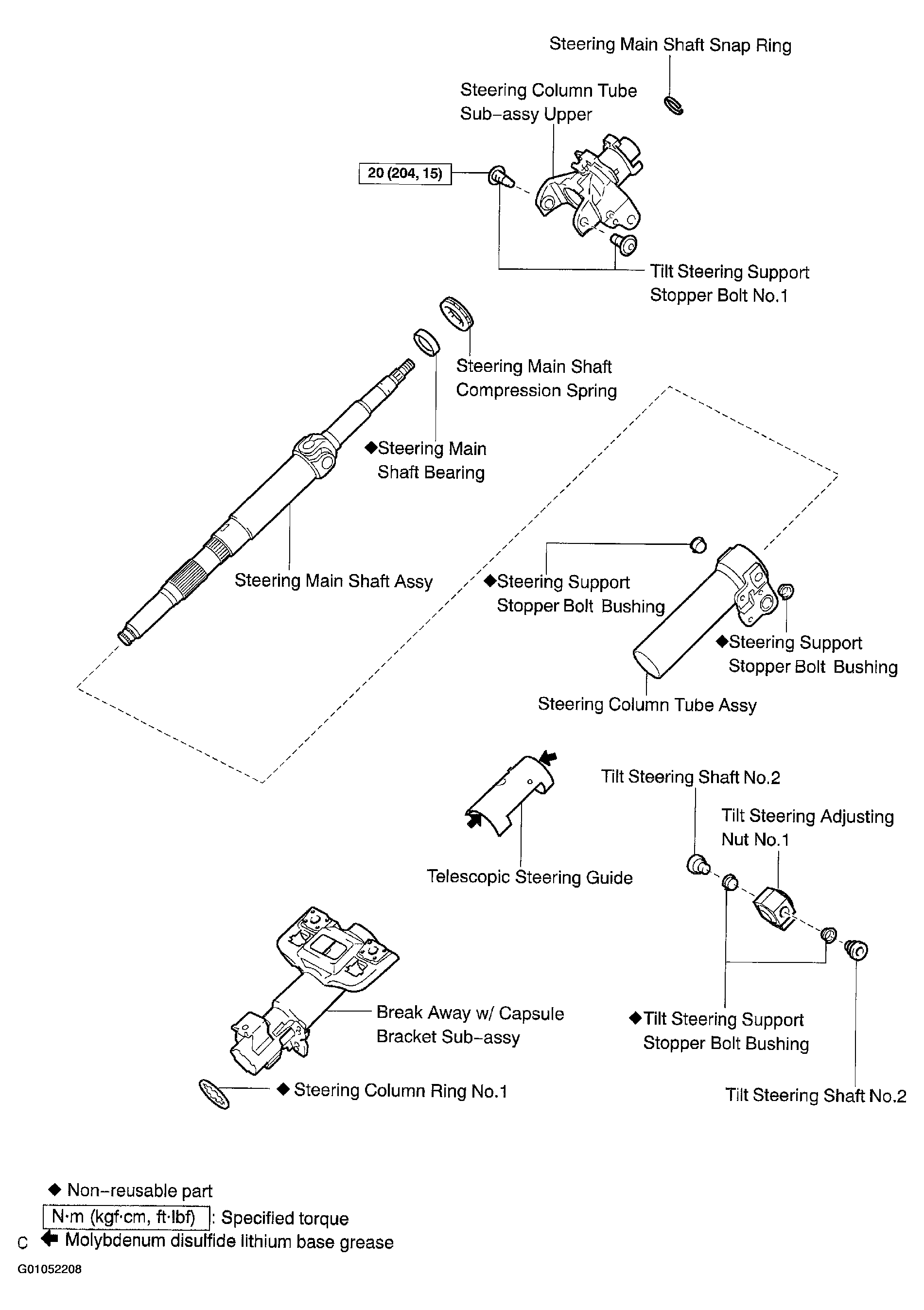

Fig 2: Exploded View Of Steering Column Assy Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

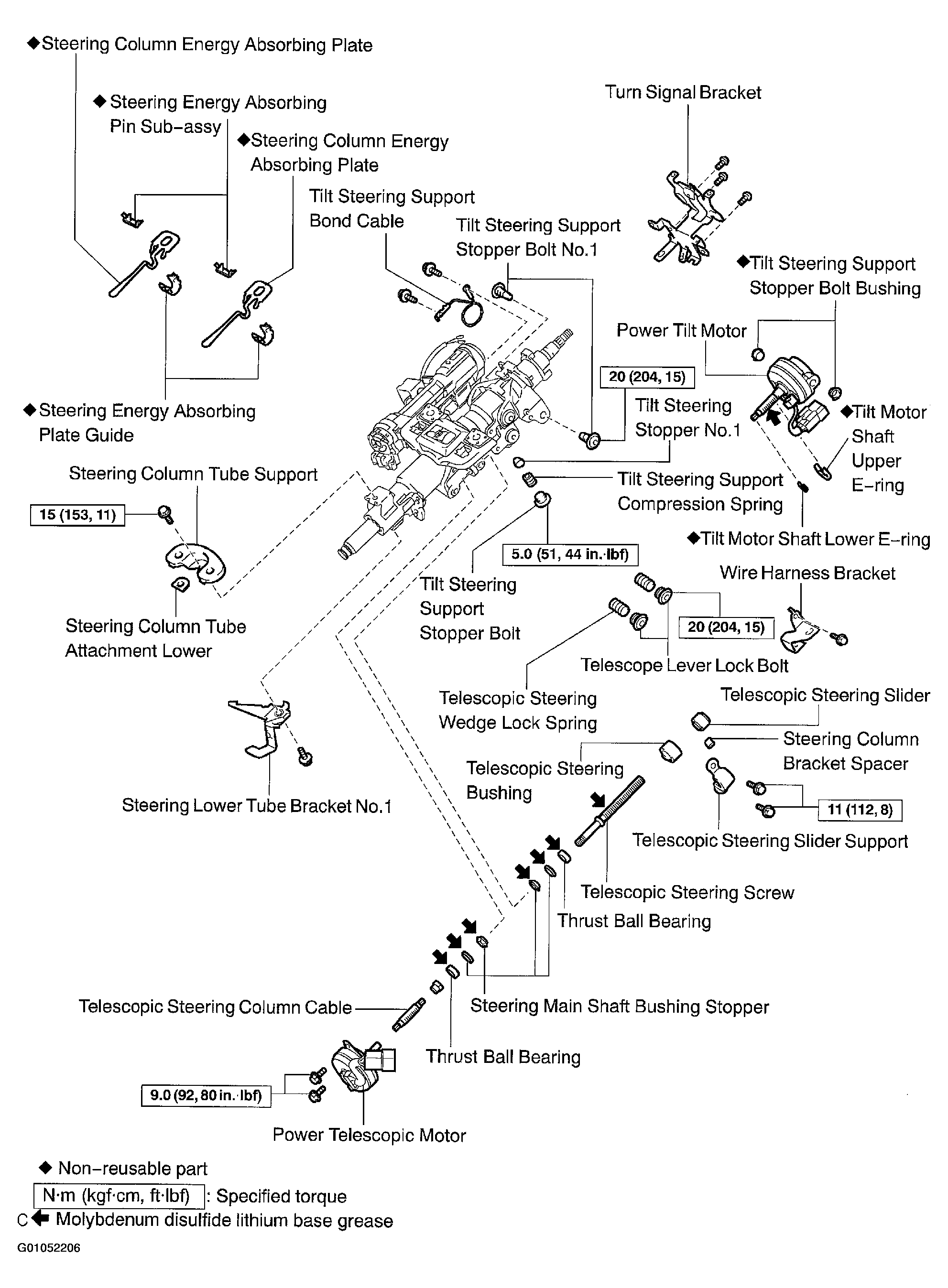

Fig 3: Exploded View Of Steering Column Assy Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

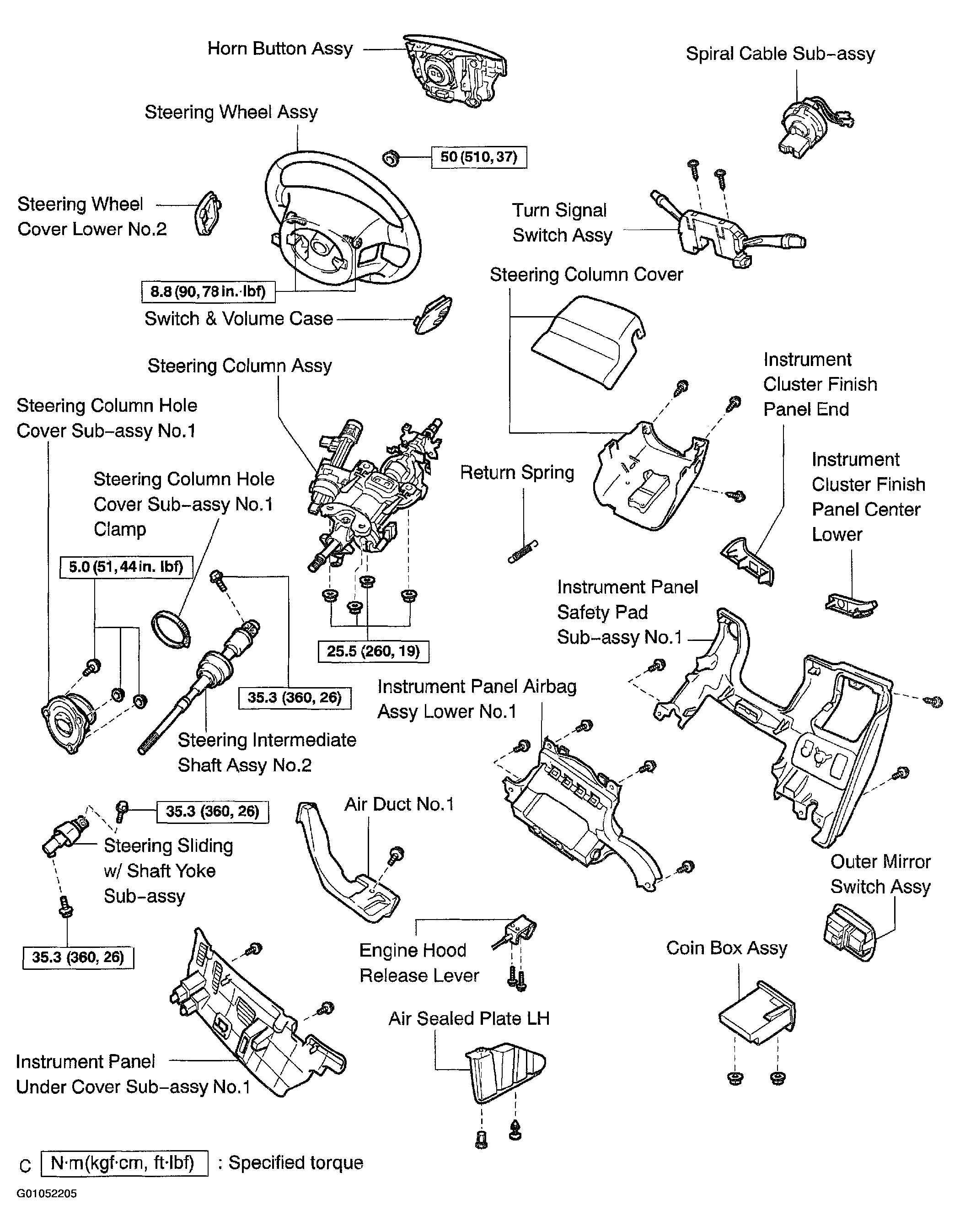

Fig 4: Exploded View Of Steering Column Assy Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
