Diagnostic Trouble Code Table
DIAGNOSTIC TROUBLE CODE
| DTC | Description |
|---|---|
| DTC P0705, P0850 | TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT), PARK/NEUTRAL SWITCH INPUT CIRCUIT |
| DTC P0710, P0712, P0713 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" CIRCUIT, TRANSMISSION FLUID TEMPERATURE SENSOR "A" CIRCUIT LOW INPUT, TRANSMISSION FLUID TEMPERATURE SENSOR "A" CIRCUIT HIGH INPUT |
| DTC P0711 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" PERFORMANCE |
| DTC P0717 | TURBINE SPEED SENSOR CIRCUIT NO SIGNAL |
| DTC P0724 | BRAKE SWITCH "B" CIRCUIT HIGH |
| DTC P0729 | GEAR 6 INCORRECT RATIO |
| DTC P0748 | PRESSURE CONTROL SOLENOID "A" ELECTRICAL (SHIFT SOLENOID VALVE SL1) |
| DTC P0751 | SHIFT SOLENOID "A" PERFORMANCE (SHIFT SOLENOID VALVE S1) |
| DTC P0756 | SHIFT SOLENOID "B" PERFORMANCE (SHIFT SOLENOID VALVE S2) |
| DTC P0761 | SHIFT SOLENOID "C" PERFORMANCE (SHIFT SOLENOID VALVE S3) |
| DTC P0766 | SHIFT SOLENOID "D" PERFORMANCE (SHIFT SOLENOID VALVE S4) |
| DTC P0778 | PRESSURE CONTROL SOLENOID "B" ELECTRICAL (SHIFT SOLENOID VALVE SL2) |
| DTC P0781 | 1-2 SHIFT (1-2 SHIFT VALVE) |
| DTC P0973, P0974 | SHIFT SOLENOID "A" CONTROL CIRCUIT LOW (SHIFT SOLENOID VALVE S1), SHIFT SOLENOID "A" CONTROL CIRCUIT HIGH (SHIFT SOLENOID VALVE S1 |
| DTC P0976, P0977 | SHIFT SOLENOID "B" CONTROL CIRCUIT LOW (SHIFT SOLENOID VALVE S2), SHIFT SOLENOID "B" CONTROL CIRCUIT HIGH (SHIFT SOLENOID VALVE S2) |
| DTC P0979, P0980 | SHIFT SOLENOID "C" CONTROL CIRCUIT LOW (SHIFT SOLENOID VALVE S3), SHIFT SOLENOID "C" CONTROL CIRCUIT HIGH (SHIFT SOLENOID VALVE S3) |
| DTC P0982, P0983 | SHIFT SOLENOID "D" CONTROL CIRCUIT LOW (SHIFT SOLENOID VALVE S4), SHIFT SOLENOID "D" CONTROL CIRCUIT HIGH (SHIFT SOLENOID VALVE S4) |
| DTC P0985, DTC P0986 | SHIFT SOLENOID "E" CONTROL CIRCUIT LOW (SHIFT SOLENOID VALVE SR), SHIFT SOLENOID "E" CONTROL CIRCUIT HIGH (SHIFT SOLENOID VALVE SR) |
| DTC P2714 | PRESSURE CONTROL SOLENOID "D" PERFORMANCE (SHIFT SOLENOID VALVE SLT) |
| DTC P2716 | PRESSURE CONTROL SOLENOID "D" ELECTRICAL (SHIFT SOLENOID SLT) |
| DTC P2757 | TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID PERFORMANCE (SHIFT SOLENOID VALVE SLU) |
| DTC P2759 | TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID CONTROL CIRCUIT ELECTRICAL (SHIFT SOLENOID VALVE SLU) |

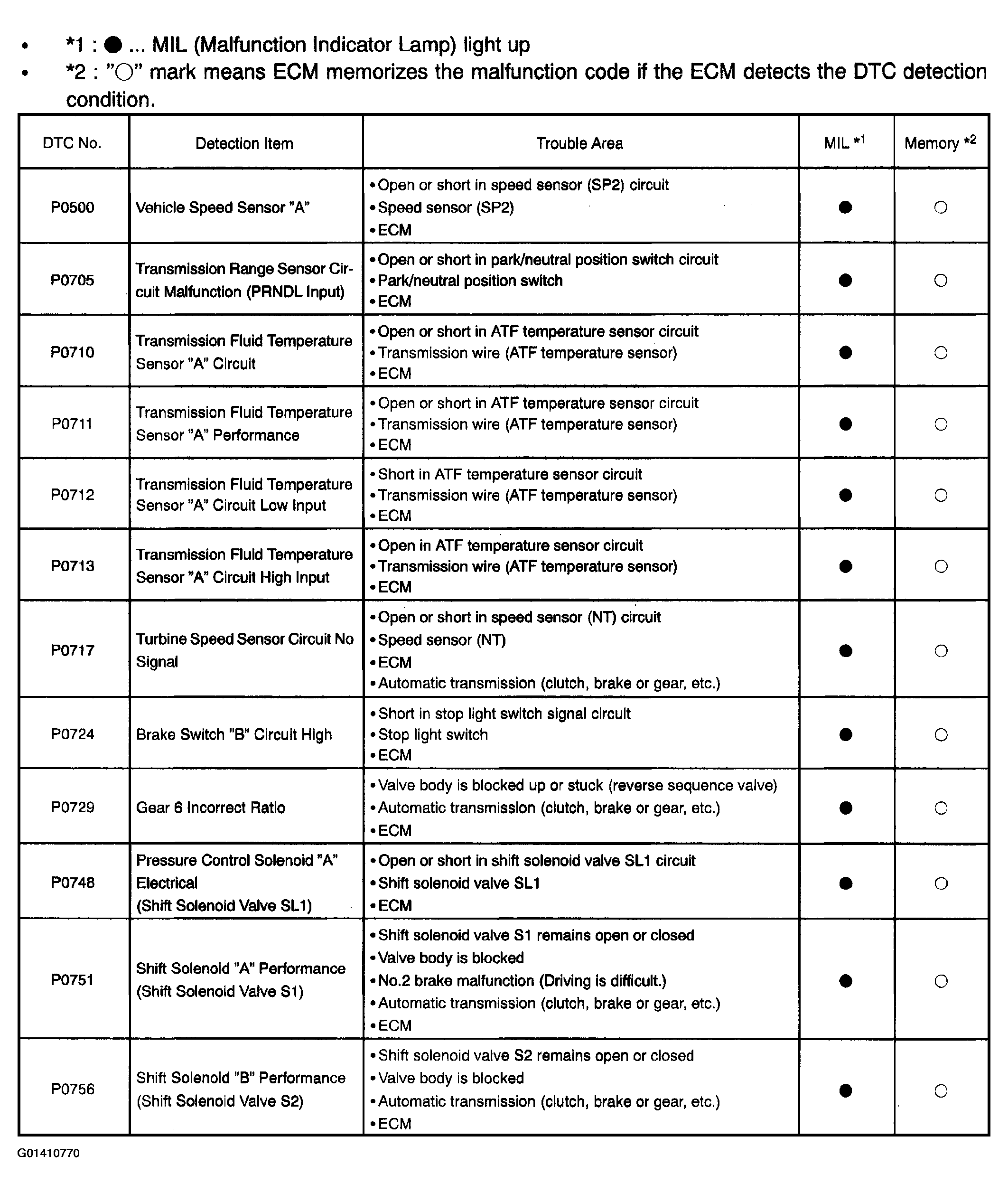

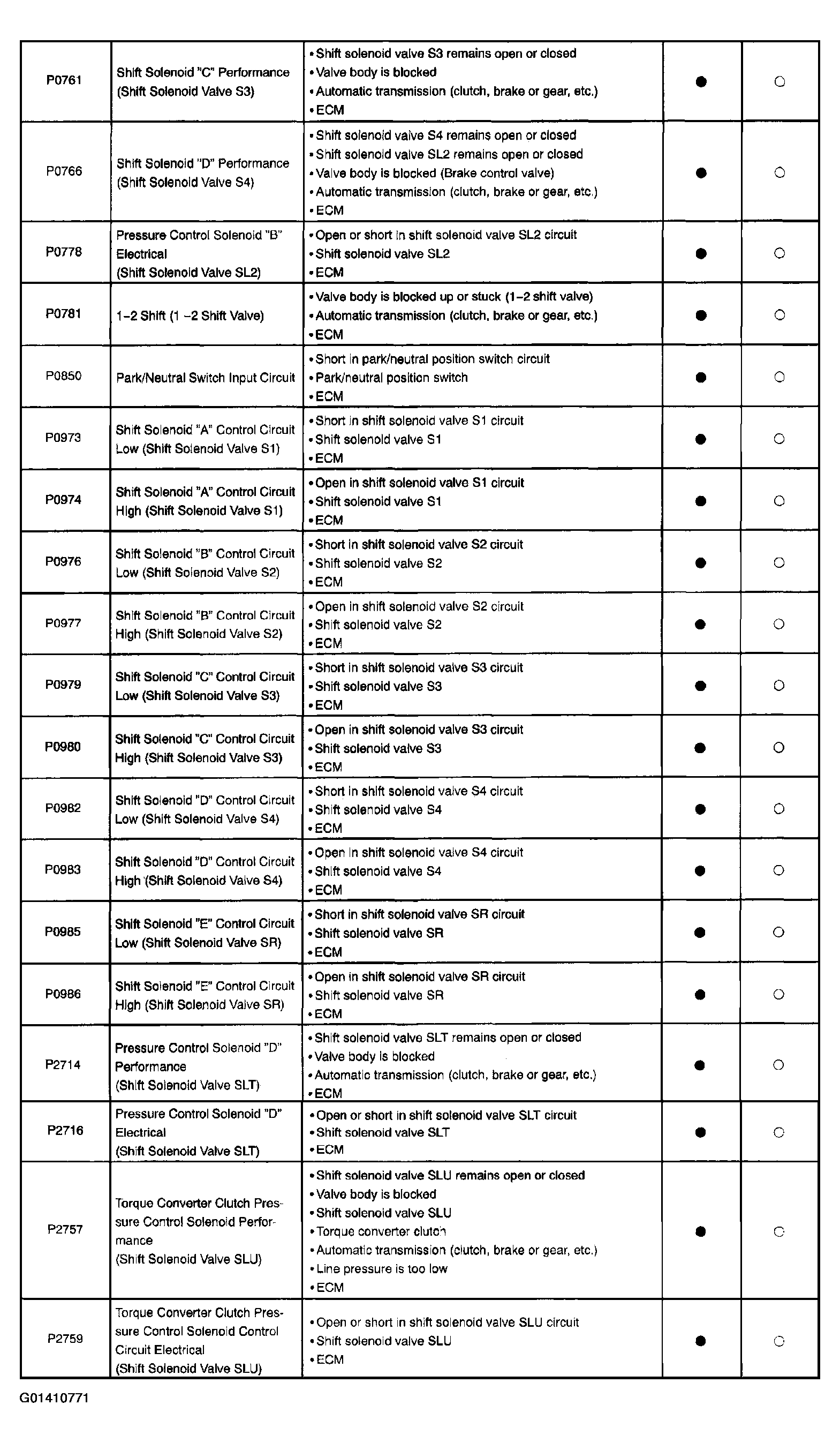

If a DTC is displayed during the DTC check, check the parts listed in Fig 1 below and proceed to the page given.
HINT:
- This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
