Inspection Procedure

  1. DRIVING TEST
    1. Start the engine.
    2. Turn the ECT SNOW switch "OFF" (Normal drive mode).
    3. Confirm vehicle response by driving from a parked position to fully depressing the accelerator pedal.
    4. Turn the ECT SNOW switch "ON" and perform the same check as (c).

      Confirm that there is a difference between ECT SNOW switch "ON" and "OFF".

      • Driving test should be done on a paved road (a nonskid road).
      • Make sure not to use the TRAC system when testing a vehicle equipped with one.

        OK:

        There is a difference in acceleration between "ON" and "OF".

    1. NG: Go to step 2
    2. OK: GO TO NEXT STEP.

    PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE   )

  2. CHECK HARNESS AND CONNECTOR (PATTERN SELECT SWITCH ASSY NO. 1 - BODY GROUND)
    1. Disconnect the connector of pattern select switch.
    2. Fig 1: Identifying Pattern Select Switch Assy No. 1 Connectors
      G01411125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in Fig 2 below.

      Standard:

      Fig 2: Pattern Select Switch Assy No. 1 - Body Ground Resistance Chart
      G01411124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
    2. OK: Go to next step.
  3. INSPECT PATTERN SELECT SWITCH ASSY NO. 1
    1. Measure the resistance according to the value(s) in Fig 4 below.
      Fig 3: Identifying Pattern Select Switch Assy No. 1 Connectors
      G01411127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      Fig 4: Pattern Select Switch Assy No. 1 Resistance Chart
      G01411126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE PATTERN SELECT SWITCH ASSY NO. 1
    2. OK: Go to next step.
  4. CHECK HARNESS AND CONNECTOR (PATTERN SELECT SWITCH ASSY NO. 1 - MULTIPLEX NETWORK BODY ECU)
    1. Connect the connector of pattern select switch.
    2. Disconnect the passenger side junction block assy (multiplex network body ECU) connector.
    3. Measure the resistance between terminal SNOW of passenger side junction block assy (multiplex network body ECU) and body ground.

      Standard:

      Fig 5: Terminal SNOW Of Passenger Side Junction Block Assy Resistance Chart
      G01411128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

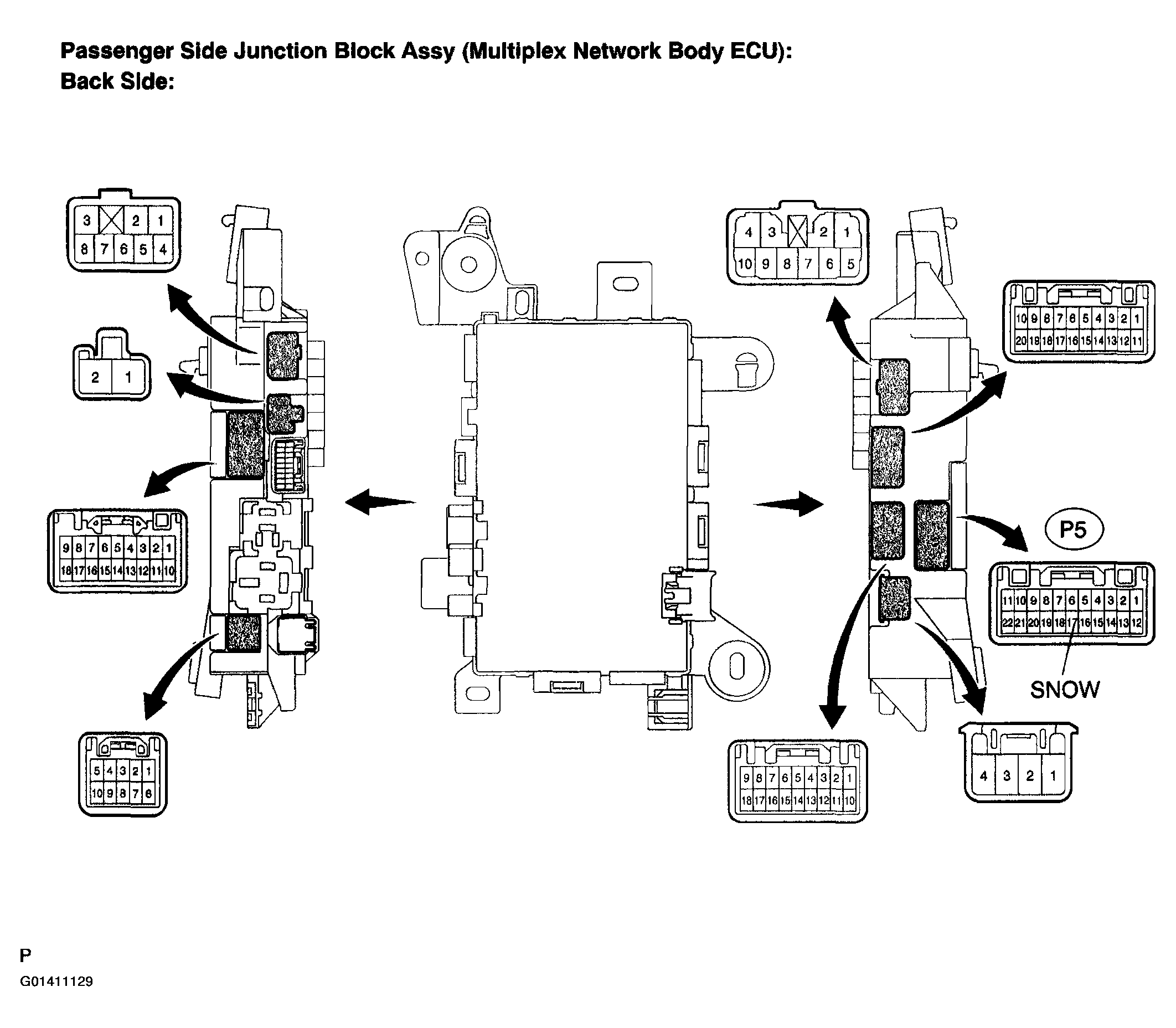

    Fig 6: Identifying Passenger Side Junction Block Assy ECU Connectors
    G01411129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
    2. OK: GO TO NEXT STEP.
