Inspection Procedure

1. Disconnect the transmission control switch connector of shift lock control unit assy.
Fig 1: Identifying Transmission Control Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in Fig 2 below.

   Standard:

   Fig 2: Transmission Control Switch Connector Voltage Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. OK: Go to next step.

1. Measure the resistance according to the value(s) in Fig 4 below.
   Fig 3: Identifying Transmission Control Switch - Body Ground Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

   Fig 4: Transmission Control Switch - Body Ground Connector Resistance Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. OK: Go to next step.

1. Measure resistance between each terminal of shift lock control unit assy when the shift lever is moved to each position.
   Fig 5: Identifying Transmission Control Switch Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

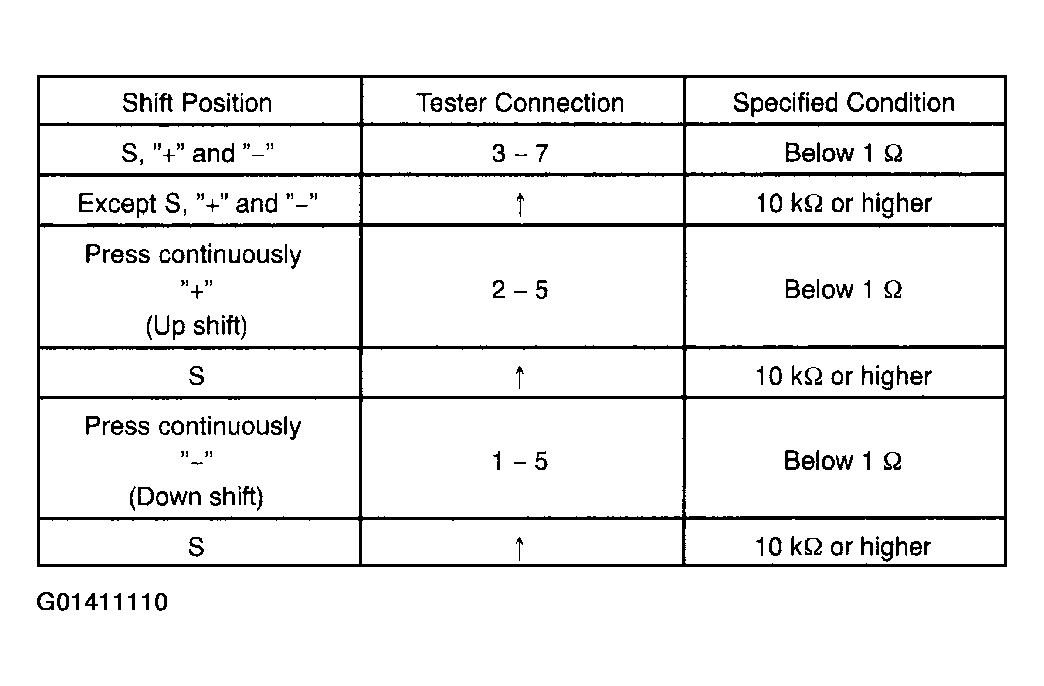

   Fig 6: Transmission Control Switch Terminal Resistance Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE TRANSMISSION CONTROL SWITCH (SEE  FLOOR SHIFT ASSY  )
2. OK: Go to next step.

1. Connect the transmission control switch connector of lock control unit assy.
2. Turn the ignition switch to the ON position, and measure the voltage according to the value(s) in Fig 8 below when the shift lever is moved to each position.

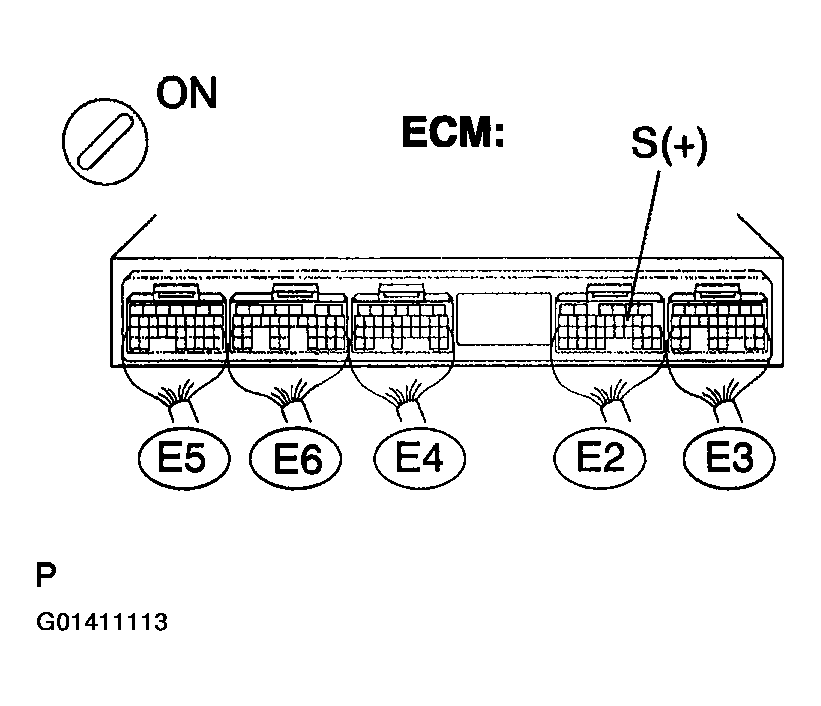

   Fig 7: Identifying Transmission Control Switch - ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

   Fig 8: Transmission Control Switch - ECM Connector Voltage Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn the ignition switch to the LOCK position.
4. Disconnect the ECM connector.
5. Measure the resistance according to the value(s) in Fig 10 below when the shift lever is moved to each position.

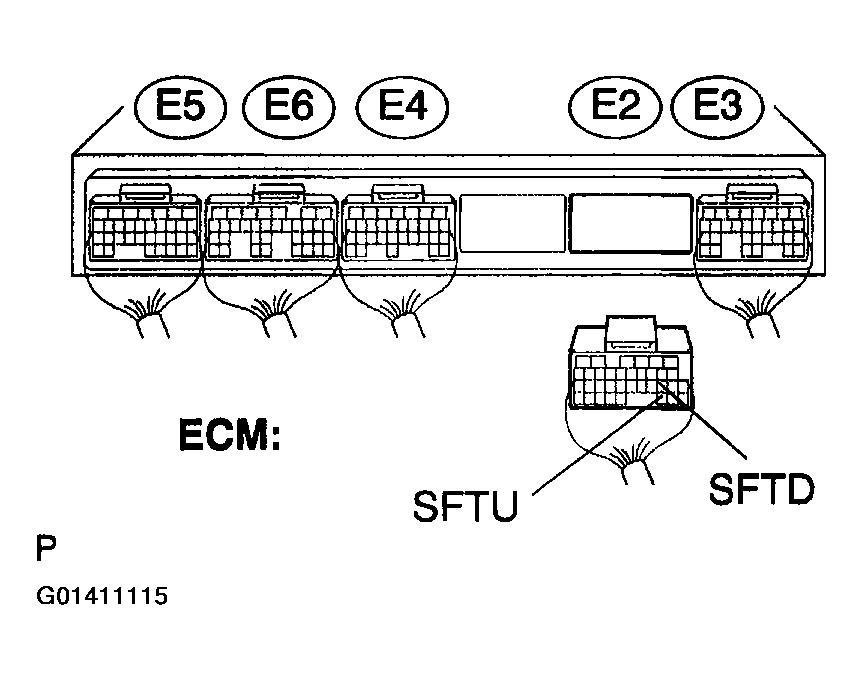

   Fig 9: Identifying Transmission Control Switch - ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

   Fig 10: Transmission Control Switch - ECM Connector Resistance Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. OK: GO TO NEXT STEP.

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE   )
