Outside Rear View Mirror: Removal

REMOVE LOWER FRAME BRACKET GARNISH
Using a screwdriver, remove the lower frame bracket garnish.

HINT:

Tape up the screwdriver tip before use.

Fig 1: Removing Lower Frame Bracket Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER WINDOW SWITCH
1. Using a screwdriver, remove the power window switch as shown in Fig 2 .
  HINT:

  Tape up the screwdriver tip before use.
2. Disconnect the connector.

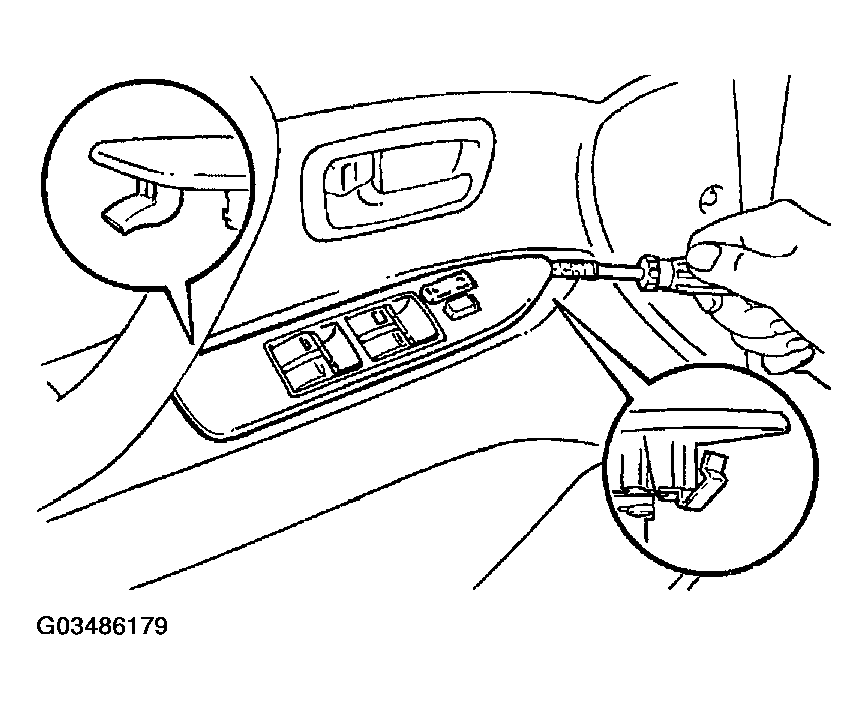

  Fig 2: Removing Power Window Switch Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Mark Levinson: REMOVE CENTER SPEAKER
1. Disconnect the connector.
2. Using a screwdriver, remove the center speaker.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 3: Disconnecting Center Speaker Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR INSIDE HANDLE BEZEL NO. 2
Using a screwdriver, remove the door inside handle bezel No. 2 as shown in Fig 4 .

HINT:

Tape up the screwdriver tip before use.

Fig 4: Removing Door Inside Handle Bezel No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR INSIDE HANDLE BEZEL NO. 1
1. Remove the screw.
2. Using a screwdriver, remove the door inside handle bezel No. 1 as shown in Fig 5 .
  HINT:

  Tape up the screwdriver tip before use.

  Fig 5: Removing Door Inside Handle Bezel No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR COURTESY LIGHT
Using a screwdriver, remove the door courtesy light then disconnect the connector.

HINT:

Tape up the screwdriver tip before use.
REMOVE SEAT MEMORY SWITCH
1. Using a screwdriver, remove the seat memory switch.
  HINT:

  Tape up the screwdriver tip before use.
2. Disconnect the connector.

  Fig 6: Removing Door Courtesy Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR TRIM
1. Remove the 2 caps and the 7 screws.
2. Remove the 3 clips.
3. Insert a screwdriver between the door and the door trim to pry the trim.
  NOTE: Be careful not to damage the door and door trim.

  HINT:

  Tape up the screwdriver tip before use.
4. Pull the trim upward to remove it.

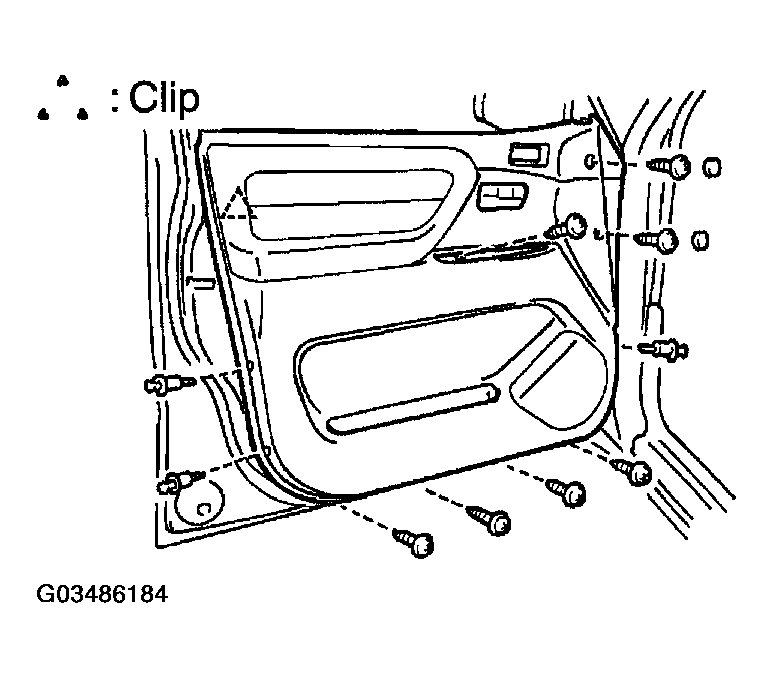

  Fig 7: Removing Door Trim Caps & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TWEETER SPEAKER
Disconnect the connector, then remove the screw and the tweeter speaker.

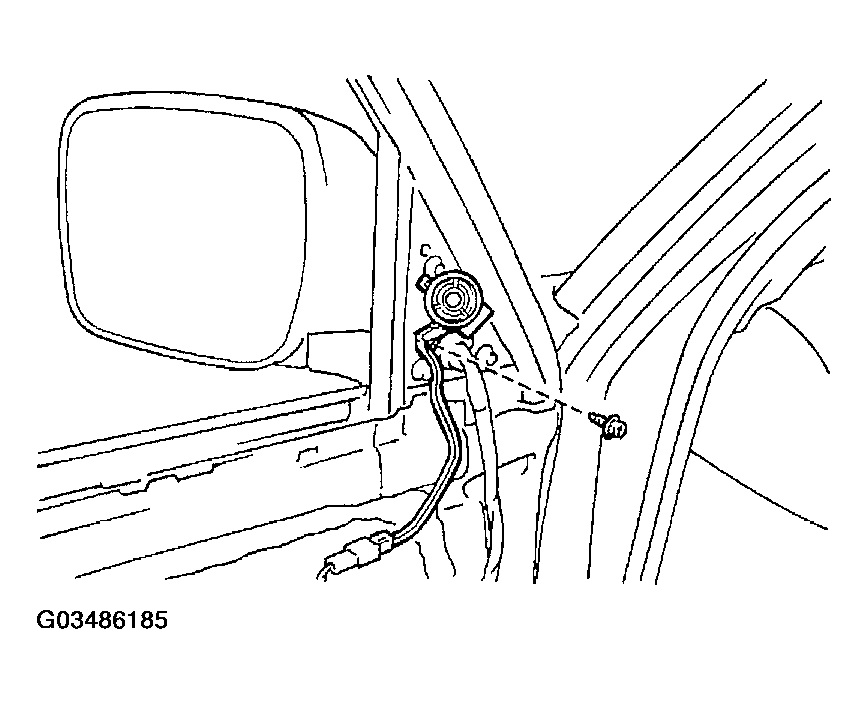

Fig 8: Removing Tweeter Speaker
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OUTSIDE REAR VIEW MIRROR
1. Disconnect the connector.
2. Remove the 3 bolts.
3. Remove the outside rear view mirror.

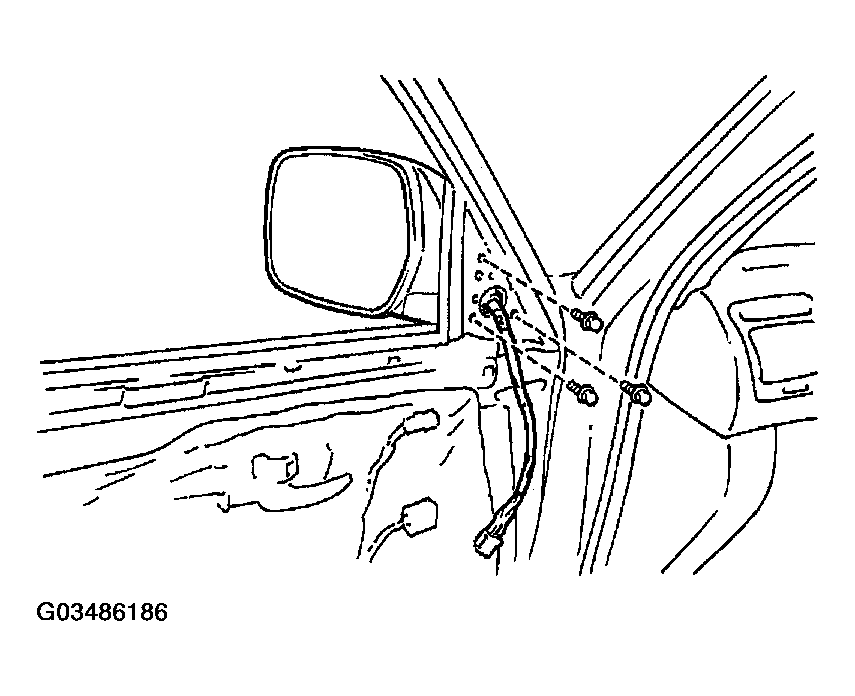

  Fig 9: Removing Outside Rear View Mirror
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
