Front Seat: Reassembly

Driver's Side:
INSTALL SEAT POSITION SENSOR

Install the seat position sensor with a new bolt, then connect the connector.

Fig 1: Installing Seat Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Part No.:

Bolt: 90119-06871

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
INSTALL SEAT POSITION CONTROL RELAY
Install the 2 bolts and the seat position control relay, then connect the connectors.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
INSTALL SEATBACK COVER
Install the seatback cover to the seatback pad with new hog rings.
INSTALL POWER SEAT MOTOR ASSEMBLY
Install the power seat motor assembly with the 4 screws.

Fig 2: Installing Power Seat Motor Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUMBER SUPPORT
Install the lumber support and the spacer with the 2 bolts.

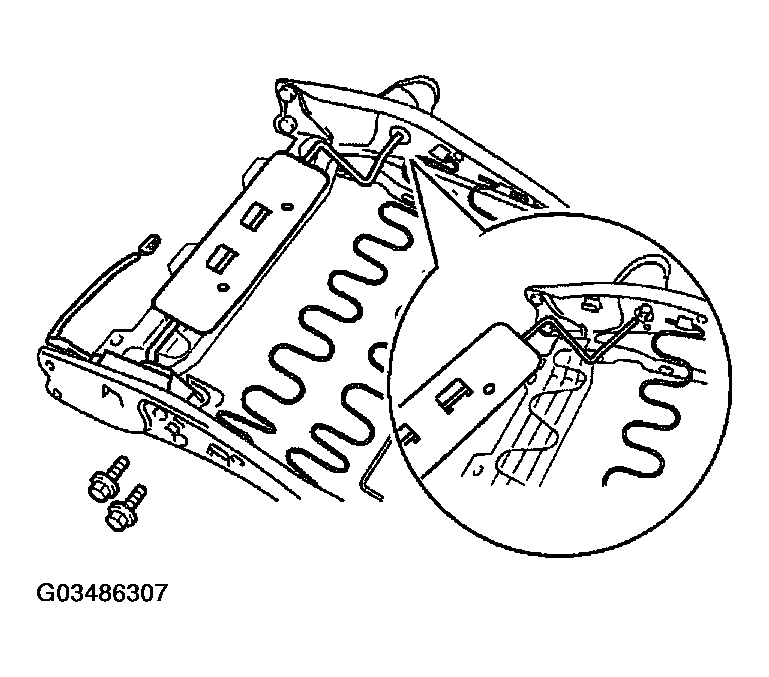

Fig 3: Installing Lumber Support & Spacer With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEATBACK FRAME
1. Install the seatback cover to the seatback frame.
2. Install new hog rings the clamps, and the 2 bolts.
  Torque: 4.7 N.m (48 kgf.cm, 42 in.lbf)
3. Install the 2 headrest supports.

  Fig 4: Installing Seatback Cover To Seatback Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEATBACK ASSEMBLY
1. Place the airbag connector along the inner seat adjuster, and then install the RH reclining adjuster inside shield with the screw so that the connector is placed in between.

  Fig 5: Placing Airbag Connector Along Inner Seat Adjuster
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
2. Install the LH reclining adjuster inside shield with the screw.

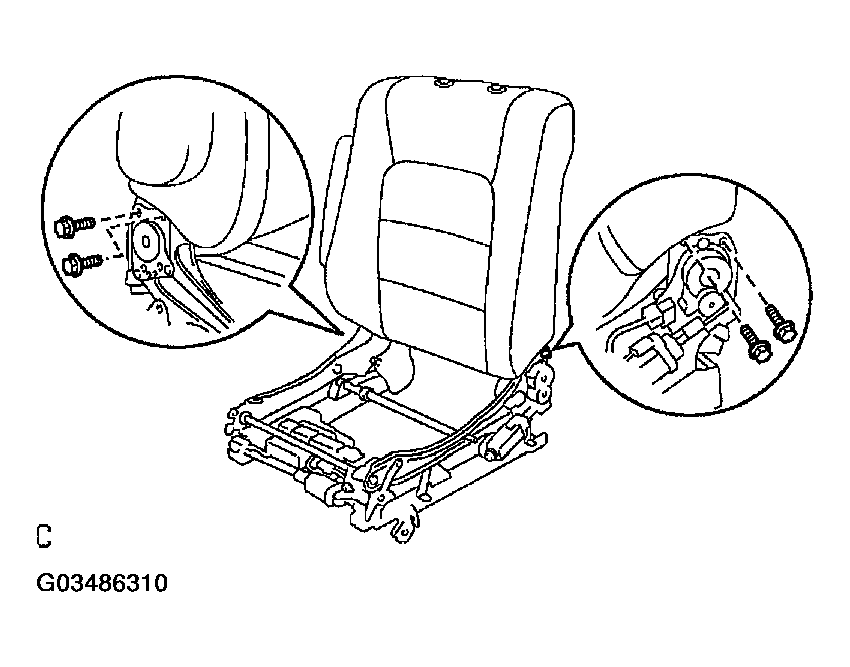

3. Install the seatback assembly with the 4 bolts.
  Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
4. Install new hog rings.

  Fig 6: Installing Seatback Assembly & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Hang the hook.
6. Connect the connectors.

  Fig 7: Connecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ARMREST
Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)
INSTALL HEADREST
INSTALL SEAT CUSHION COVER (See REPLACEMENT )

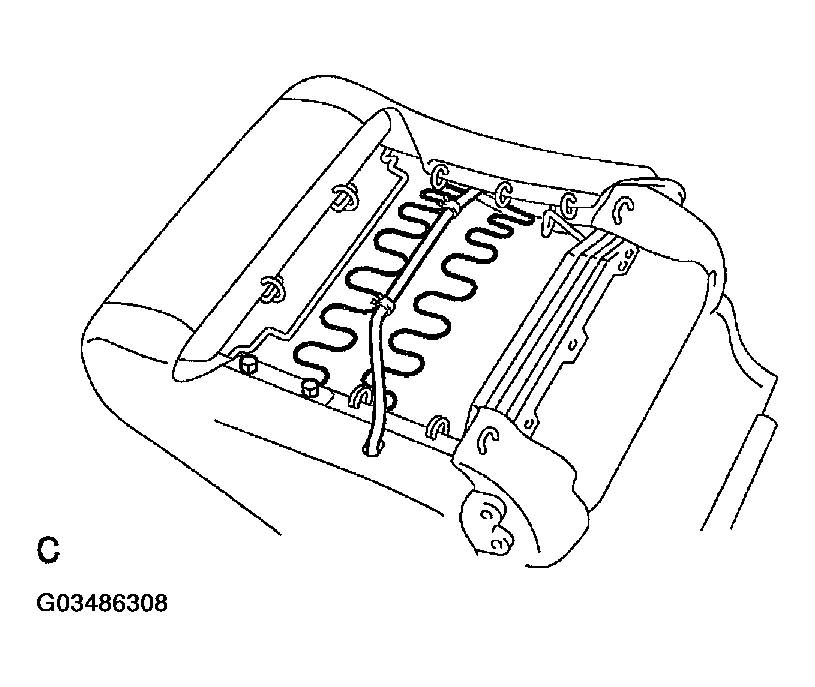

INSTALL SEAT CUSHION FRAME
1. Install the seat cushion frame with new hog rings to the seat cushion cover with pad.

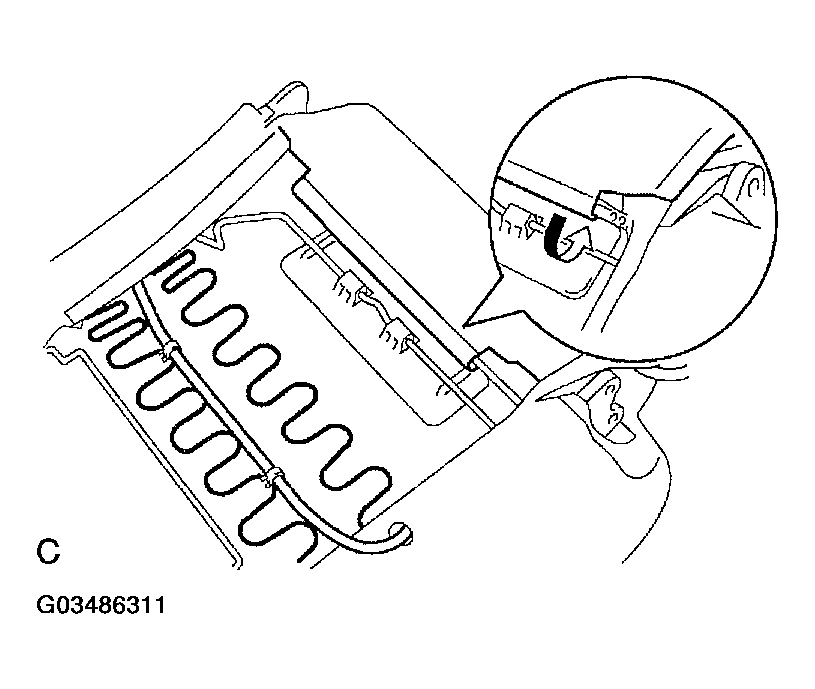

2. Hang the hook.

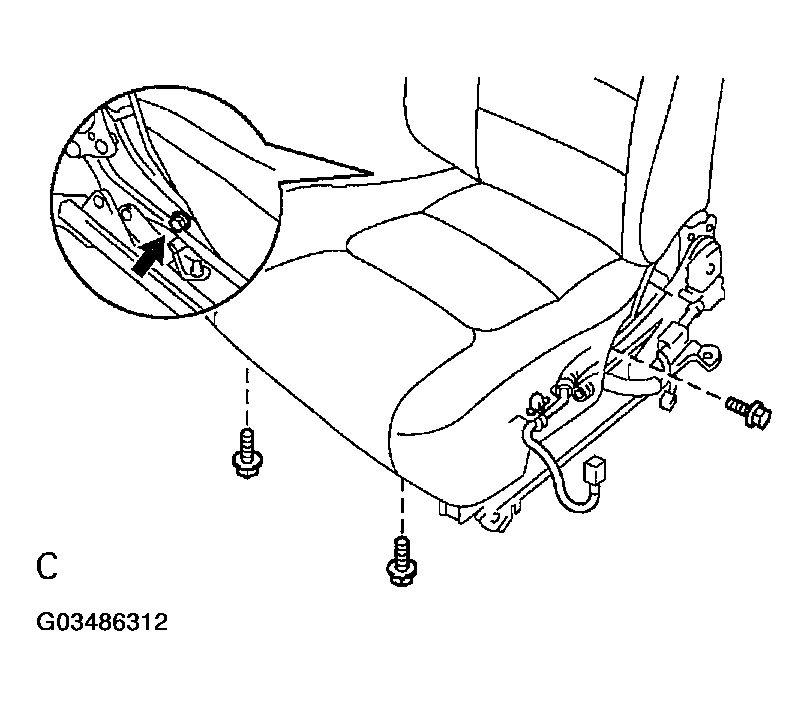

INSTALL SEAT CUSHION ASSEMBLY
1. Install the seat cushion assembly with the 4 bolts to the seat adjuster.
  Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)
2. Engage the wire harness clamp.

  Fig 8: Engaging Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT CUSHION SHIELD
Install the seat cushion shield with the screw.

Fig 9: Installing Front Seat Cushion Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER SEAT CUSHION SHIELD
Install the seat cushion shield with the screw.

Fig 10: Installing Lower Seat Cushion Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CUSHION INNER SHIELD
Install the seat cushion inner shield with the 3 screws.

Fig 11: Installing Seat Cushion Inner Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT INNER BELT
1. Engage the clamp, then connect the connector.
2. Install the inner belt with the bolt.
  Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

  Fig 12: Installing Front Seat Inner Belt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CUSHION OUTER SHIELD
1. Install the power seat switch with the 3 screws.
2. Install the lumber support switch with the 2 screws.
3. Connect the connectors as shown in Fig 13 .

  Fig 13: Installing Seat Cushion Outer Shield
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the seat cushion outer shield with the 4 screws.
5. Install the power seat switch knobs.
INSTALL SEATBACK BOARD
