How To Proceed With Troubleshooting

HINT:

ECU of this system is connected to the multiplex communication system. Therefore, before starting troubleshooting, make sure to check that there is no trouble in the multiplex communication system.

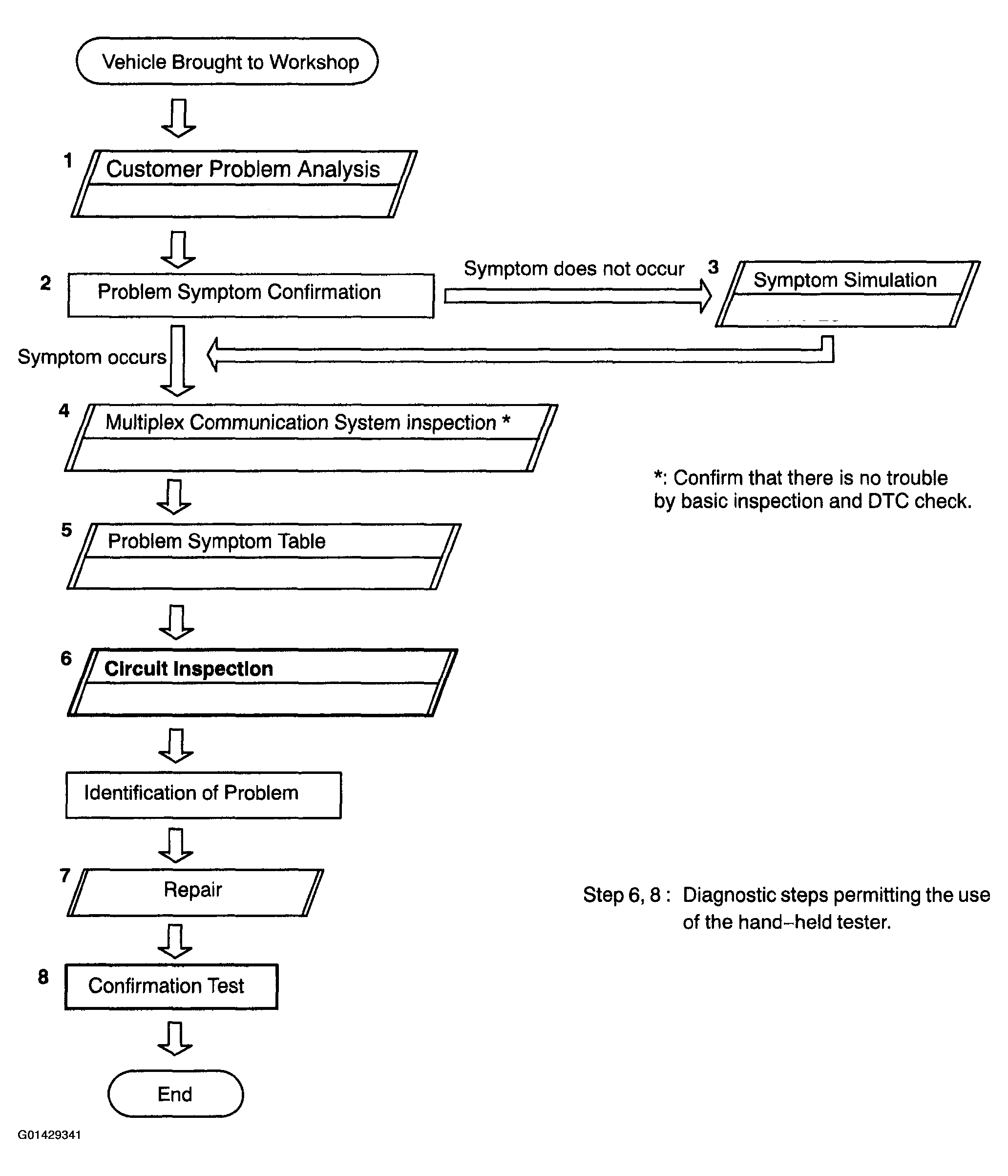

Fig 1: Power Seat Control System Troubleshooting Flow Chart
