Power Rear Quarter Window System: Location

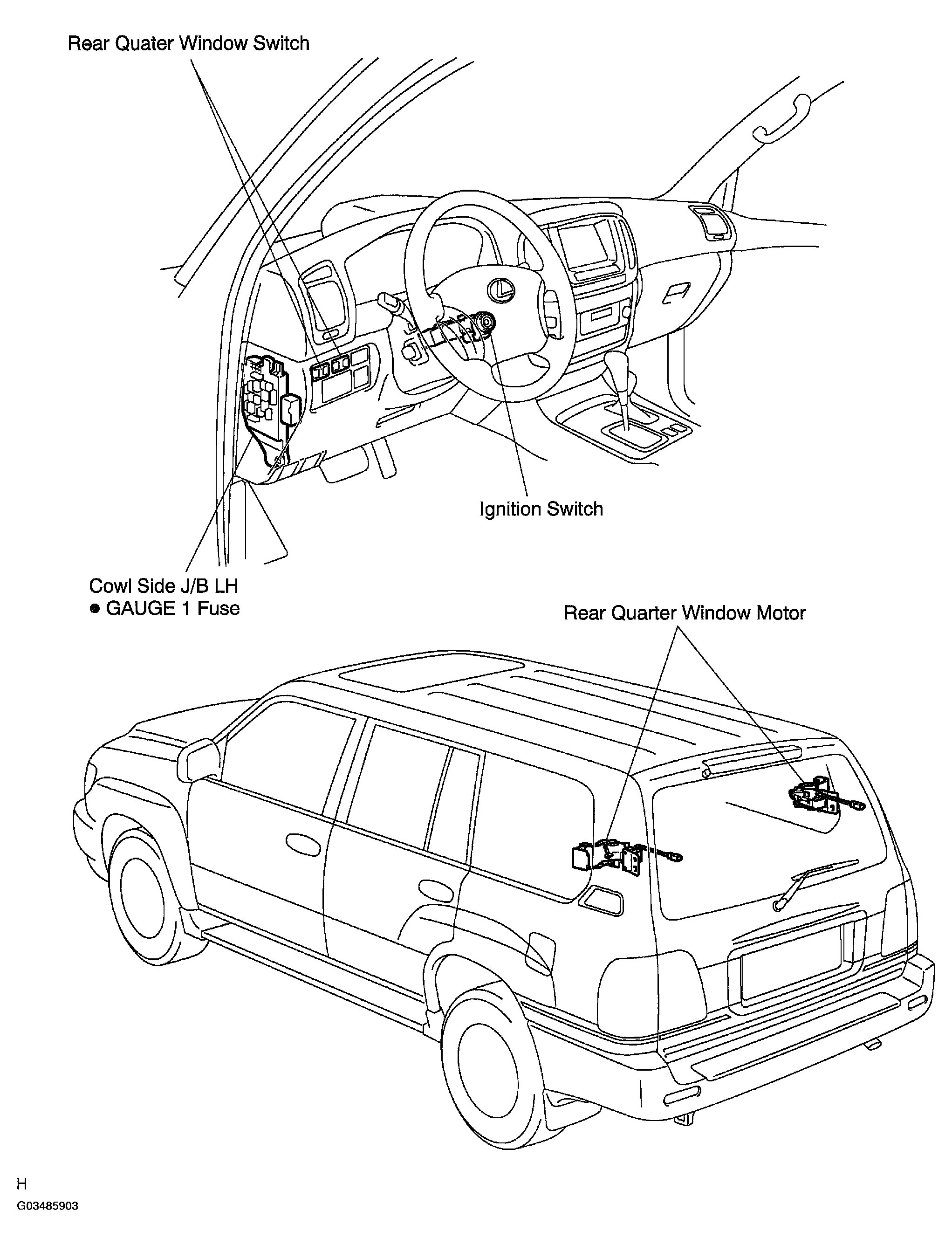

Fig 1: Locating Power Rear Quarter Window System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
