Inspection Procedure

HINT:

Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, as well as other data from the time when a malfunction occurred.

1. Check voltage between terminal FPR and E1 of ECM.

   CHECK:

   Measure the voltage between terminals of E8 and E10 ECM connectors.

   Fig 1: Checking Voltage Between Terminal FPR And E1 Of ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   Fig 2: Voltage Reference Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. OK: Replace ECM (See  ENGINE CONTROL MODULE (ECM)  ).
   2. NG: Go to next step
2. Check fuel pump relay.

   PREPARATION:

   Remove the fuel pump relay from the engine room R/B.

   CHECK:

   Inspect the fuel pump relay.

   Fig 3: Checking Fuel Pump Relay

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   Fig 4: Tester Connection Reference Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: Replace fuel pump relay.
   2. OK: Go to next step
3. Check for open and short in harness and connector between fuel pump relay and ECM.

   PREPARATION:

   1. Remove the fuel pump relay from the engine room J/B.

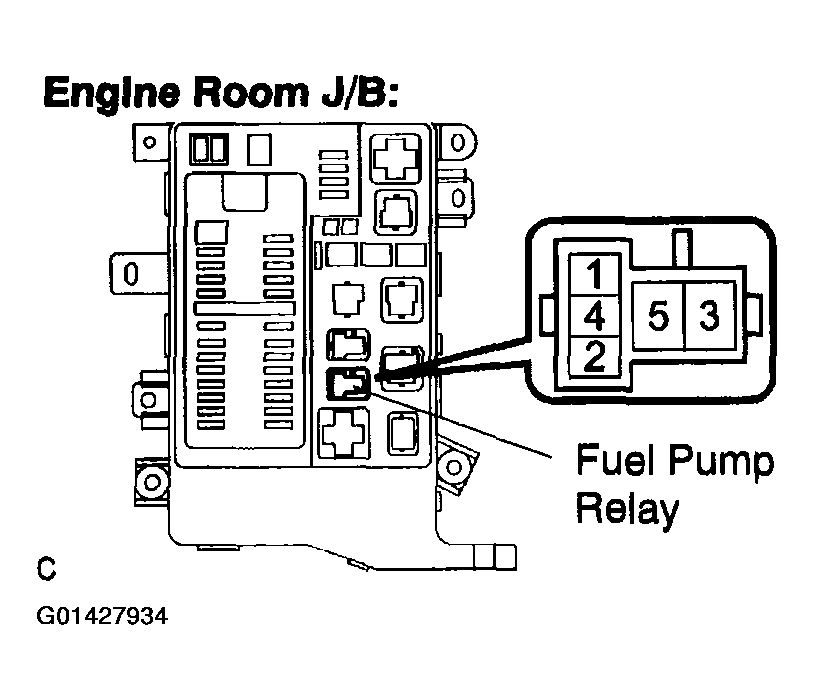

   Fig 5: Removing Fuel Pump Relay From Engine Room J/B
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the E8 ECM connector.
   Fig 6: Disconnecting E8 ECM Connector
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   CHECK:

   Measure the resistance between wire harness side connectors.

   OK:

   Fig 7: Resistance Reference Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: Repair or replace harness or connector.
   2. OK: Replace ECM (See  ENGINE CONTROL MODULE (ECM)  ).
