Lexus
›
2004
›
LX 470
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System - Diagnosis
›
Parts Location
Parts Location

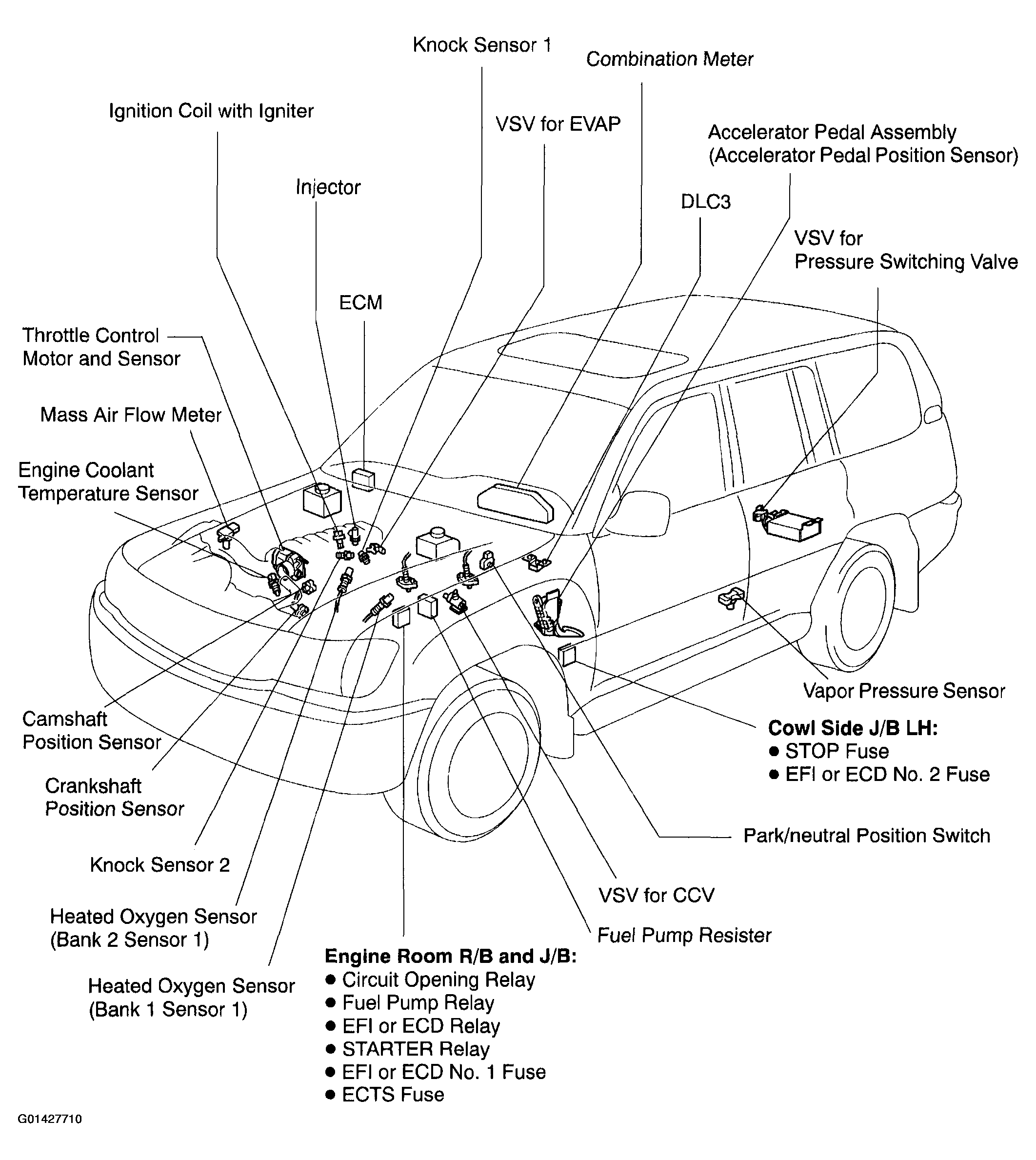

Fig 1: Identifying Location Of Engine Component
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
