Engine Control Module (ECM): Components

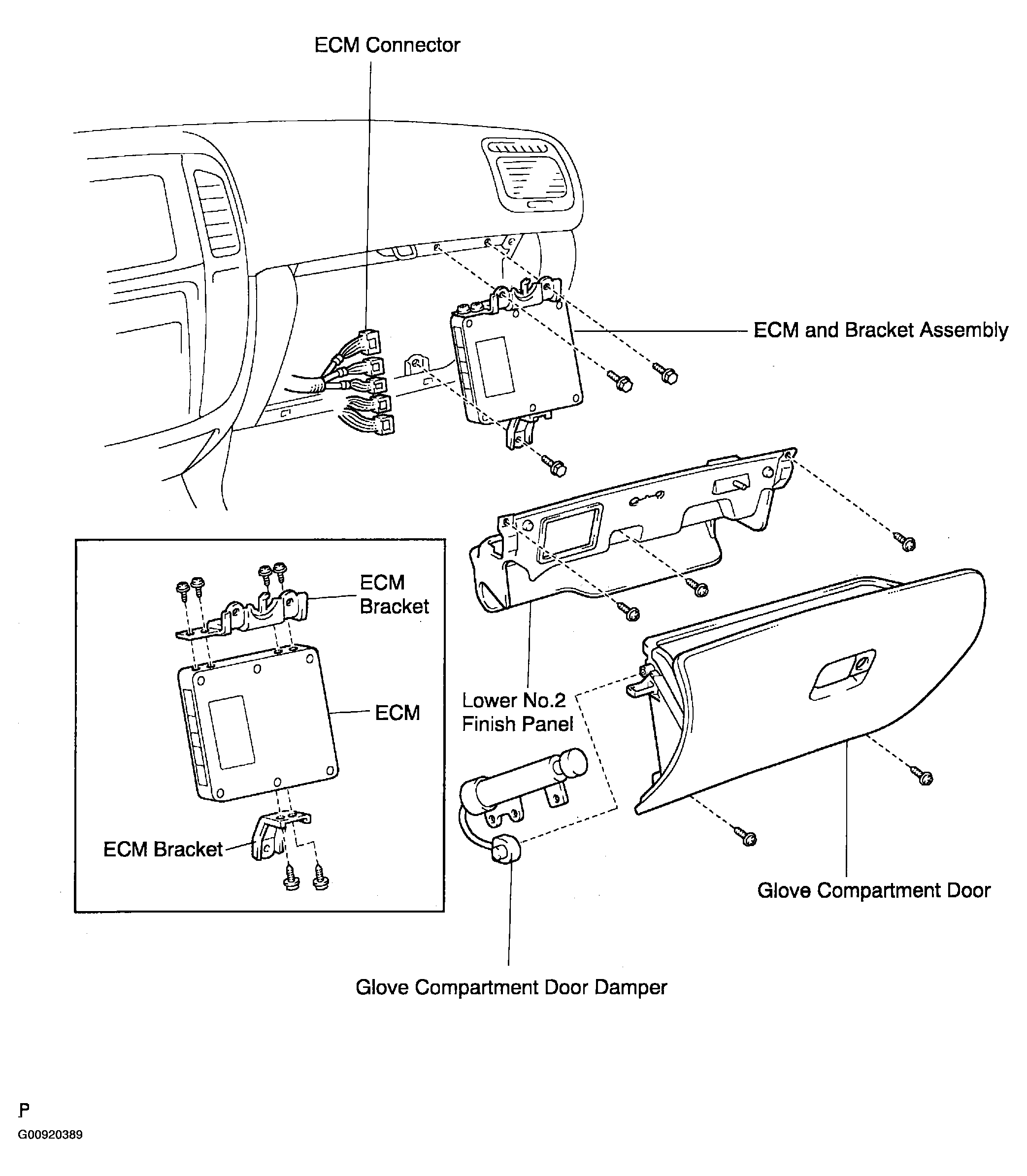

Fig 1: Identifying Engine Control Module Components
G00920389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
