SFI System: Injector: Components

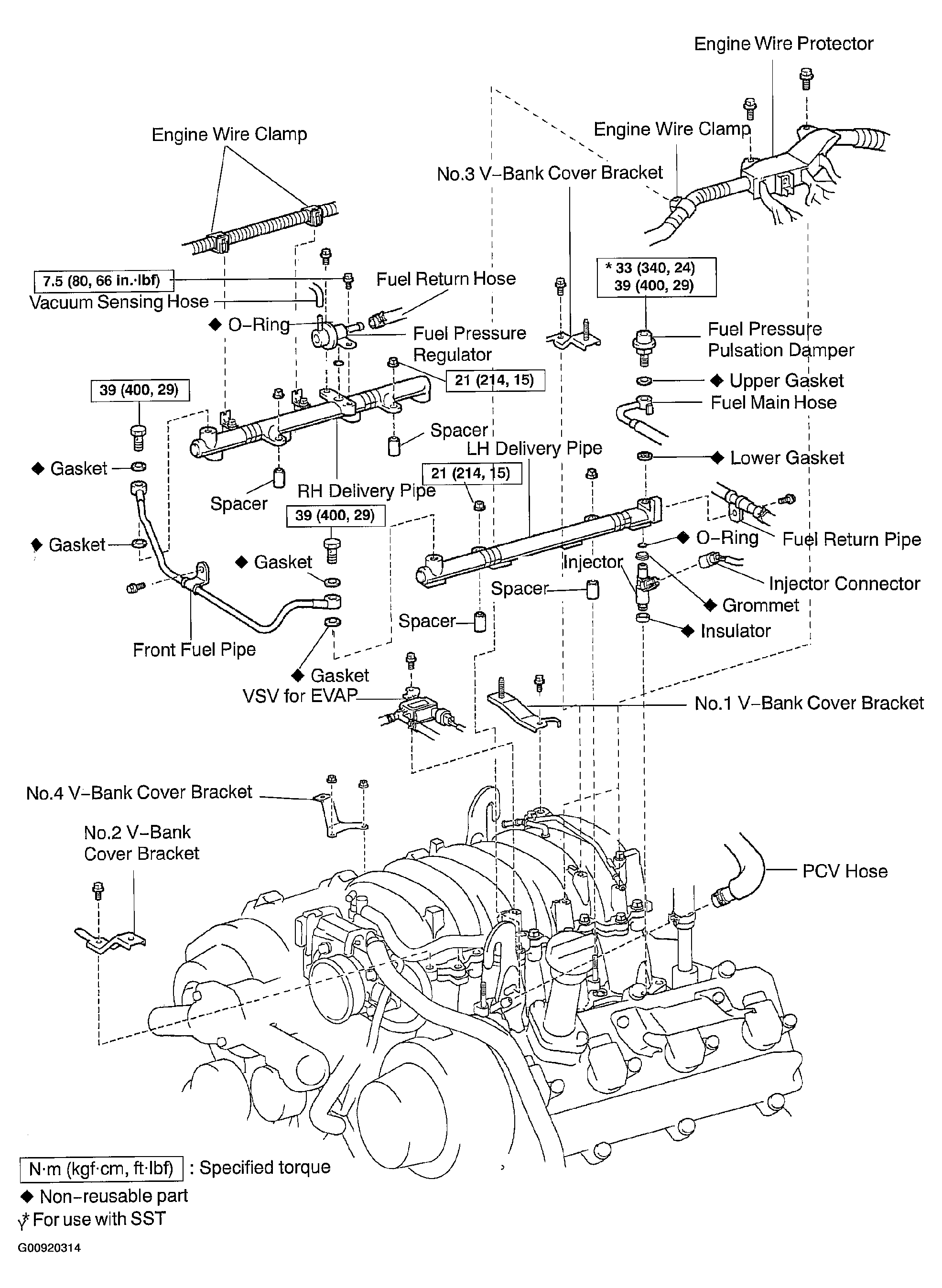

Fig 1: Identifying Injector Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Injector Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
