Home › Lexus › 2004 › LX 470 › Repair and Diagnosis › Suspension › Electronic Suspension › Control Valve Assembly › Components

Control Valve Assembly: Components

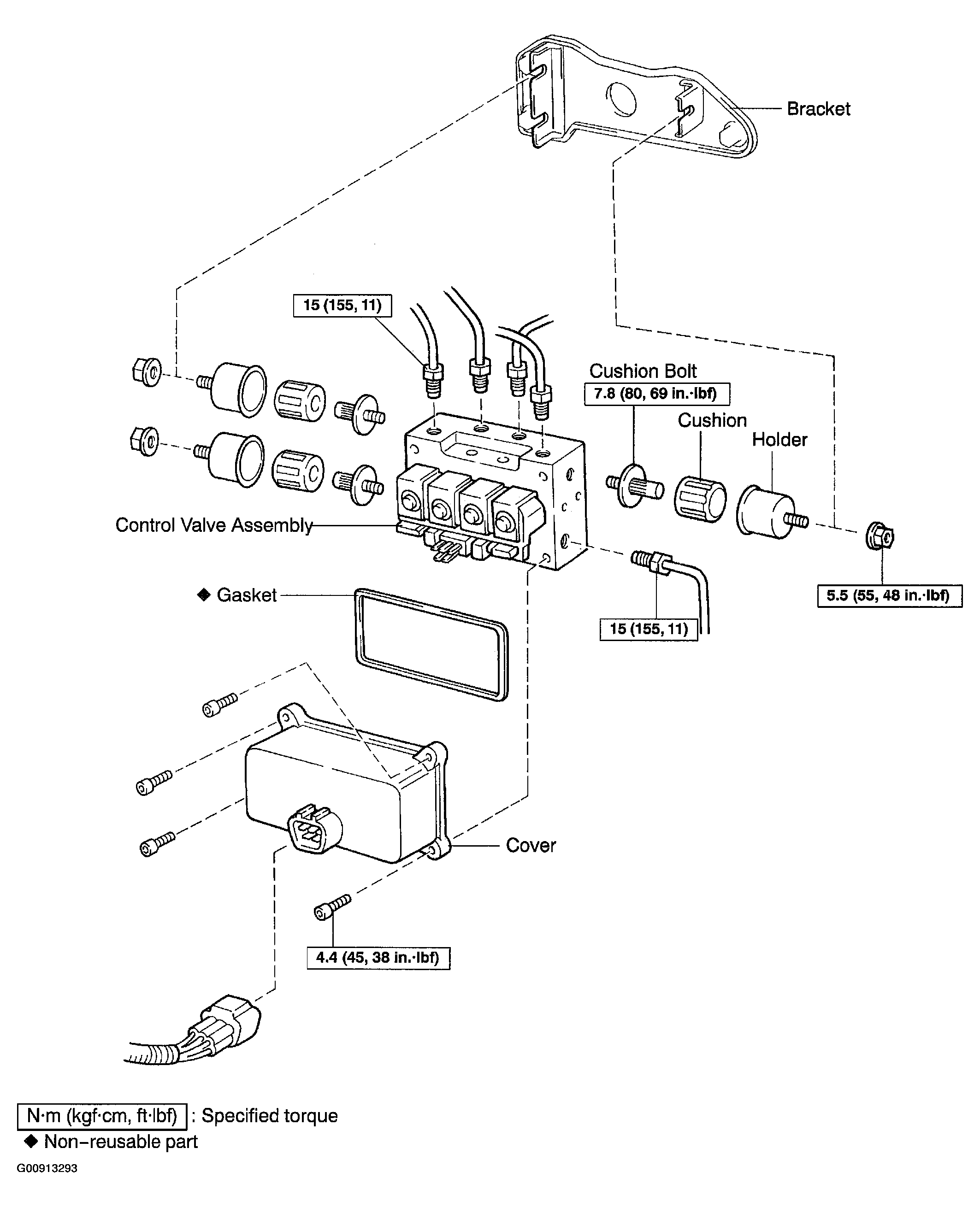

Fig 1: Identifying Control Valve Assembly
G00913293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
