Height Control Accumulator: Components

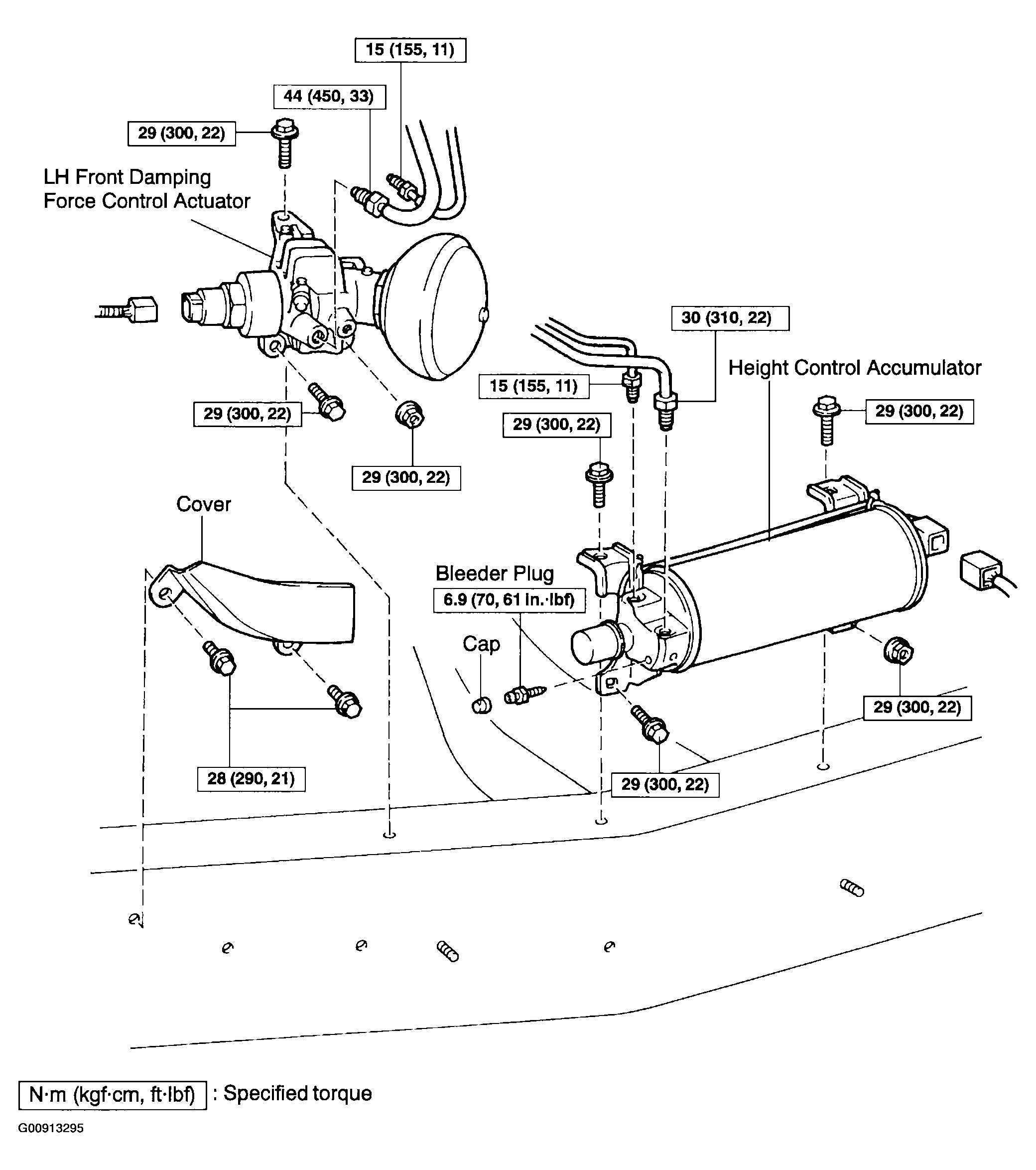

Fig 1: Identifying Height Control Accumulator Components
G00913295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
