Height Control Sensor: Components

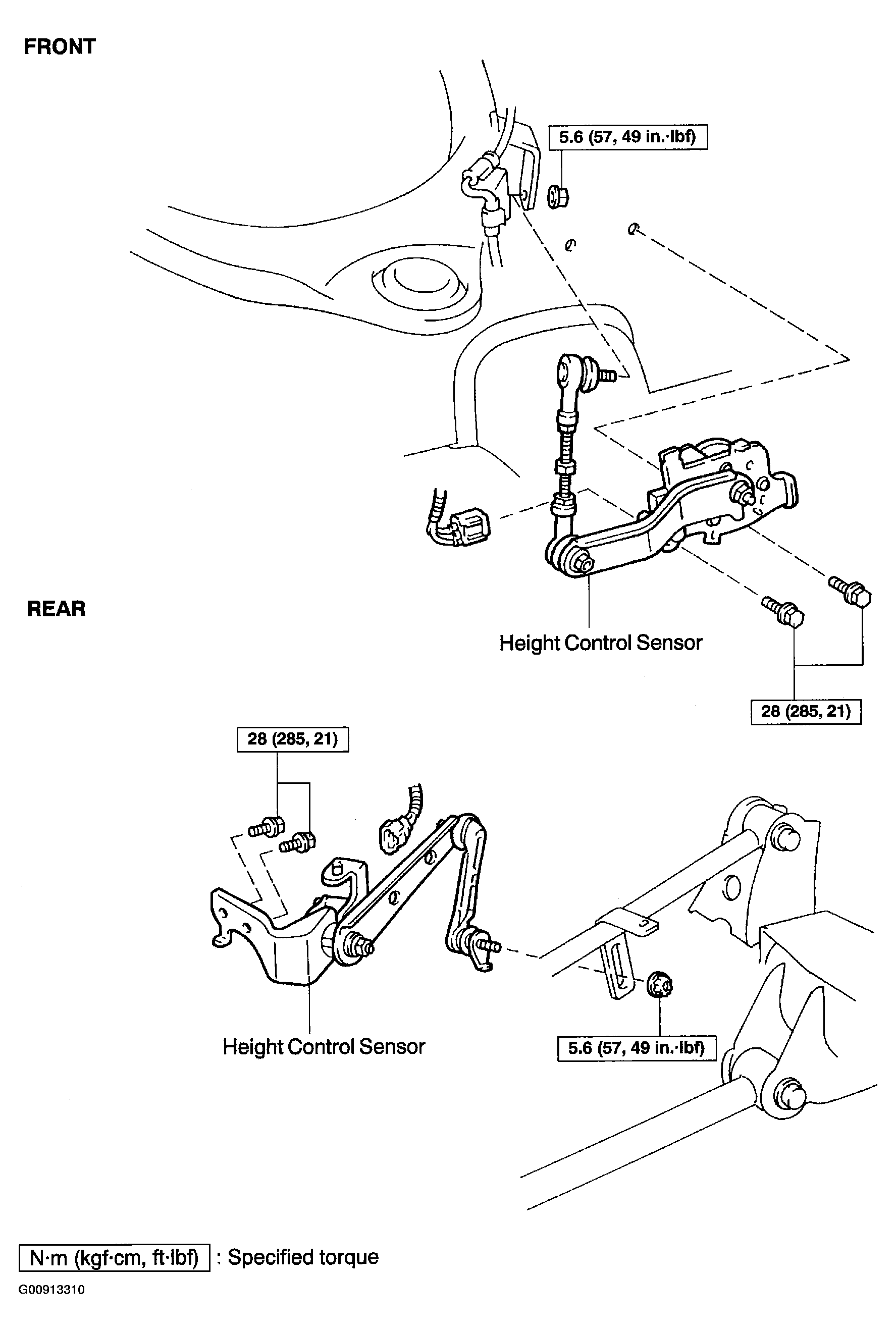

Fig 1: Identifying Components (Height Control Sensor)

G00913310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
