Specifications & Procedures: Specifications

Use illustrations for wheel alignment specifications. See Fig 1.

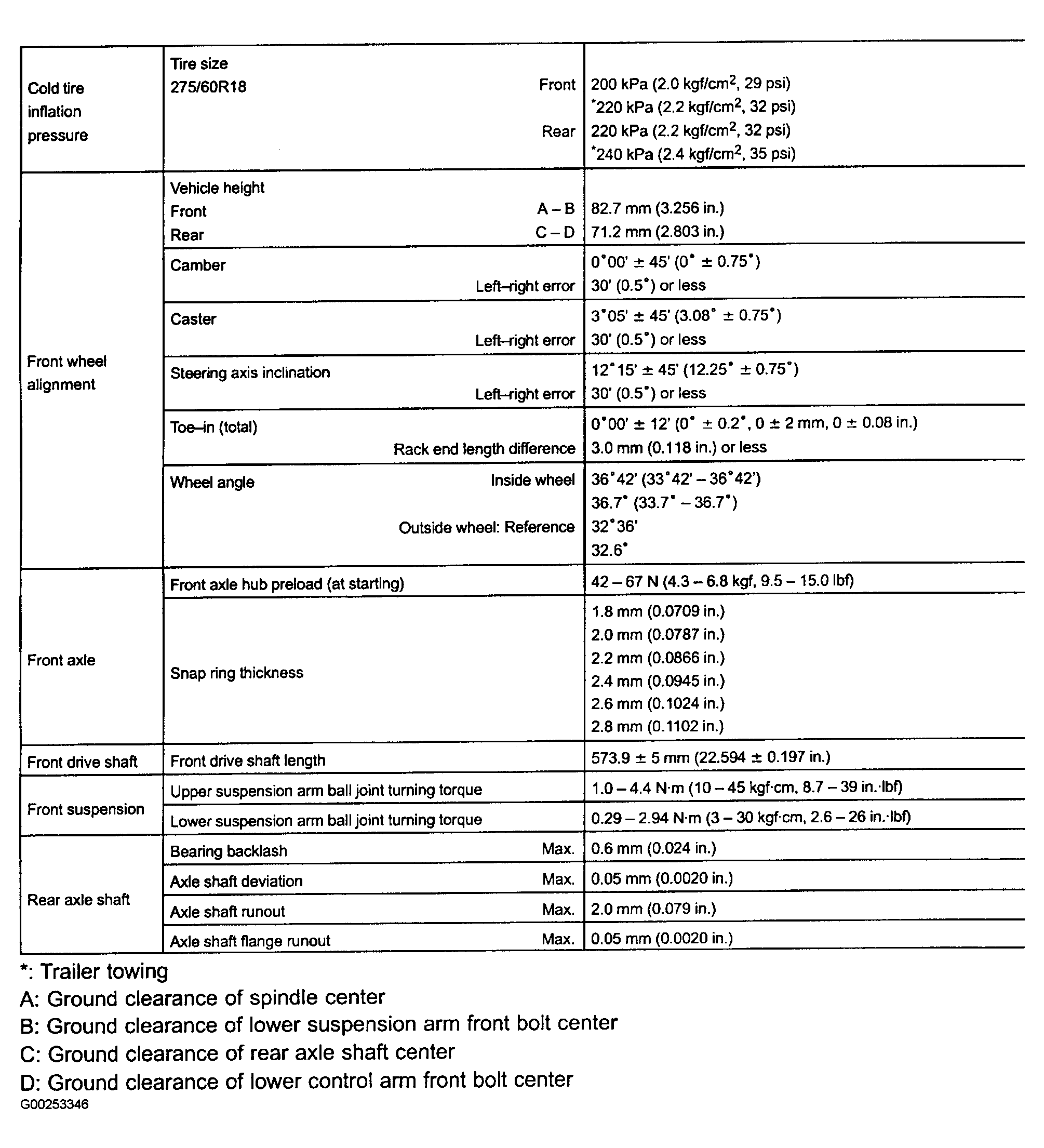

Fig 1: Front & Rear Wheel Alignment Specifications (LX 470)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
