Automatic Transmission Unit: Components

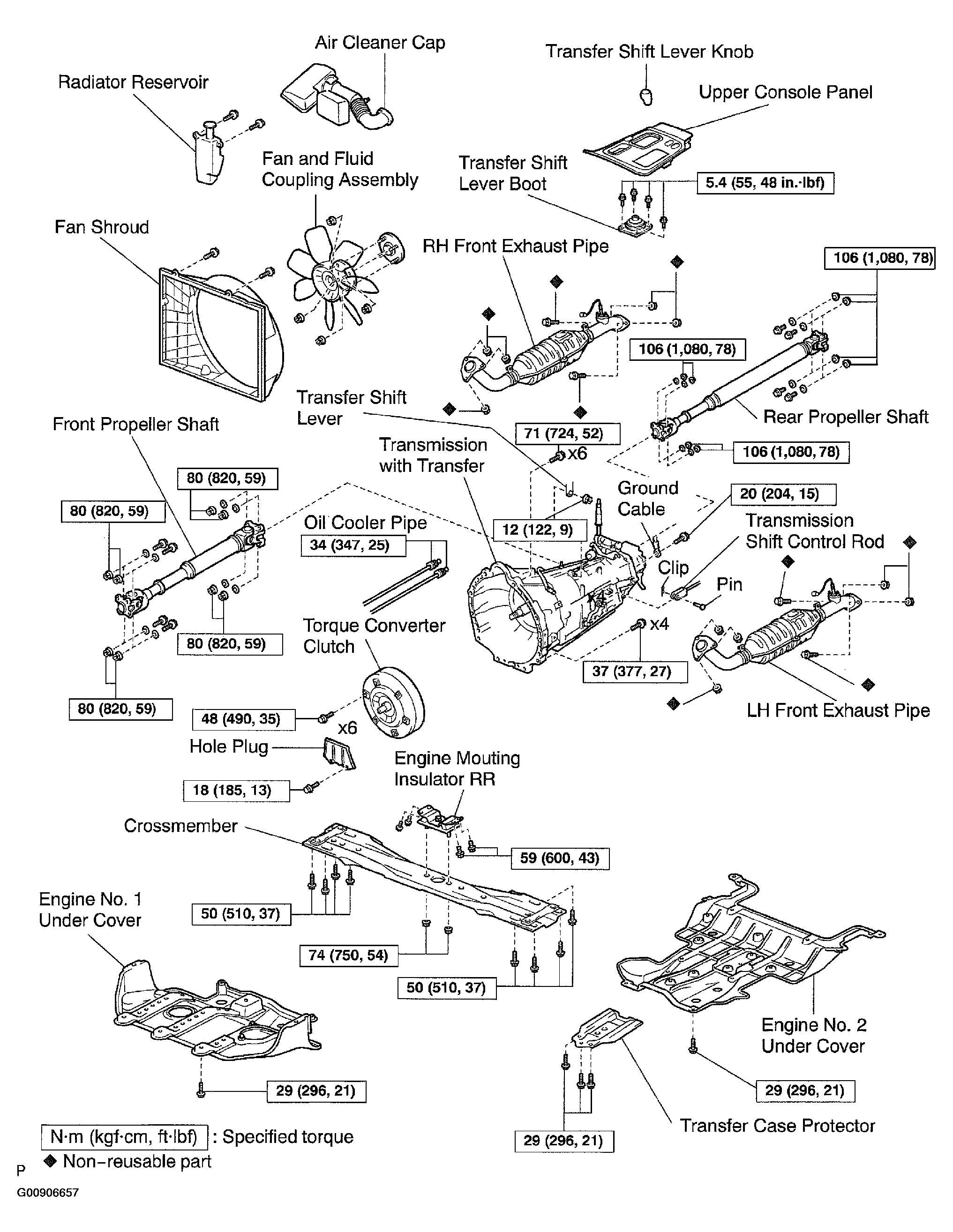

Fig 1: Identifying Automatic Transmission Unit Removal & Installation Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
