Center Differential: Components

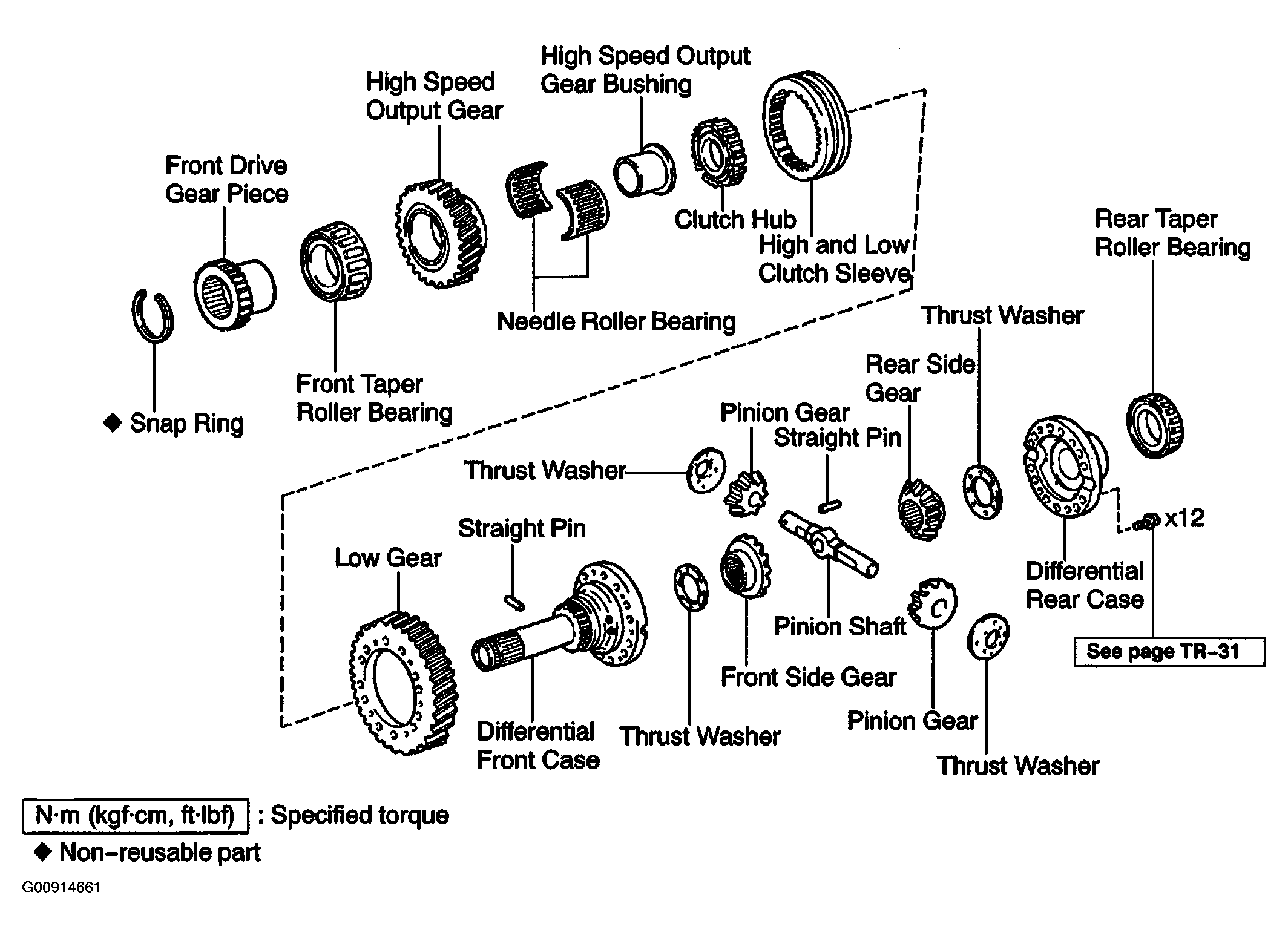

Fig 1: Identifying Components Of Center Differential

G00914661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
