Front Extension Housing: Components

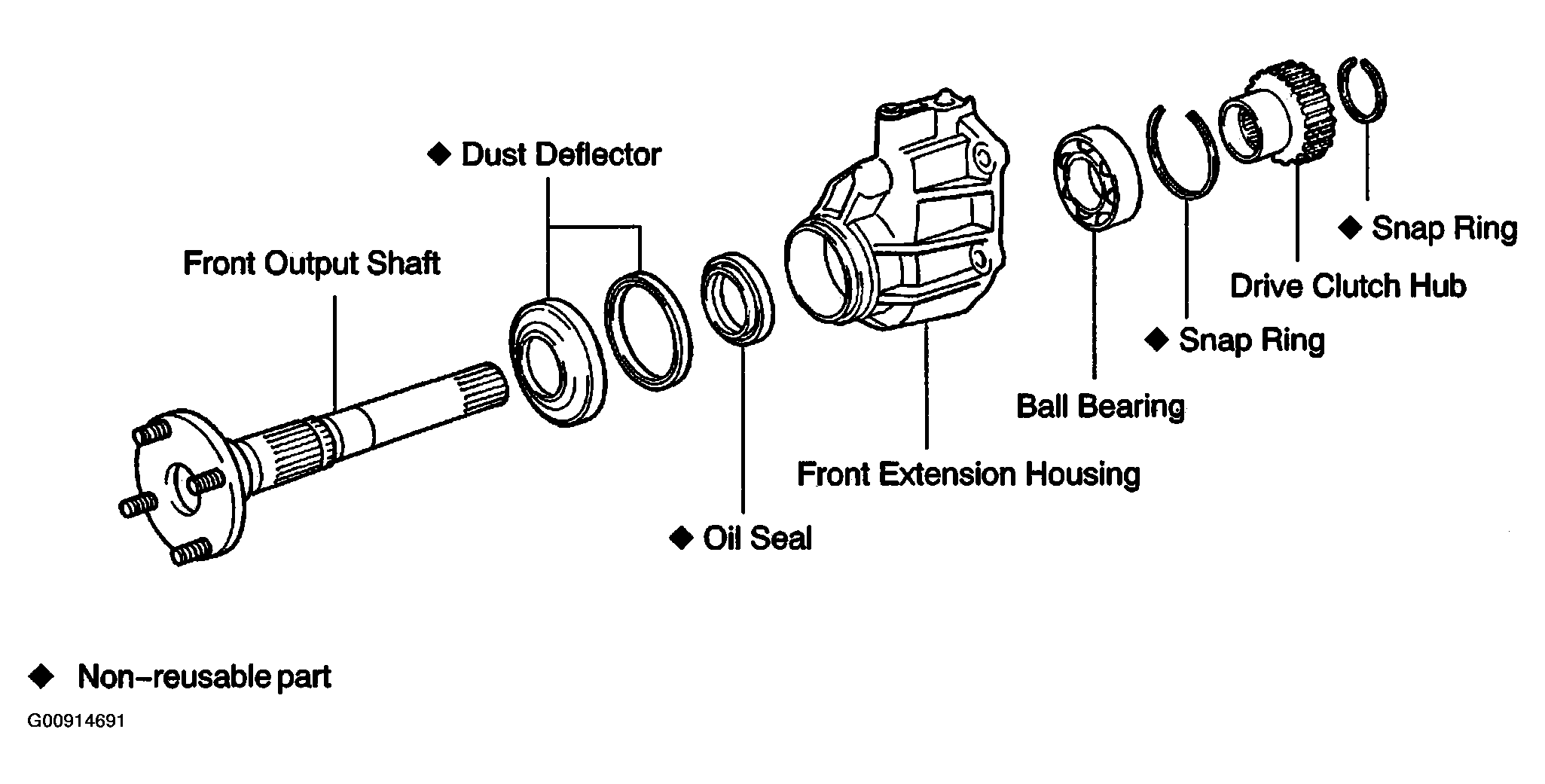

Fig 1: Identifying Components Of Front Extension Housing

G00914691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
