Idler Gear: Inspection

Using a micrometer, measure the idler gear diameter.

1. Standard diameter: 38.48 - 38.50 mm (1.5149 - 1.5157 in.)
2. Maximum diameter: 38.50 mm (1.5157 in.)

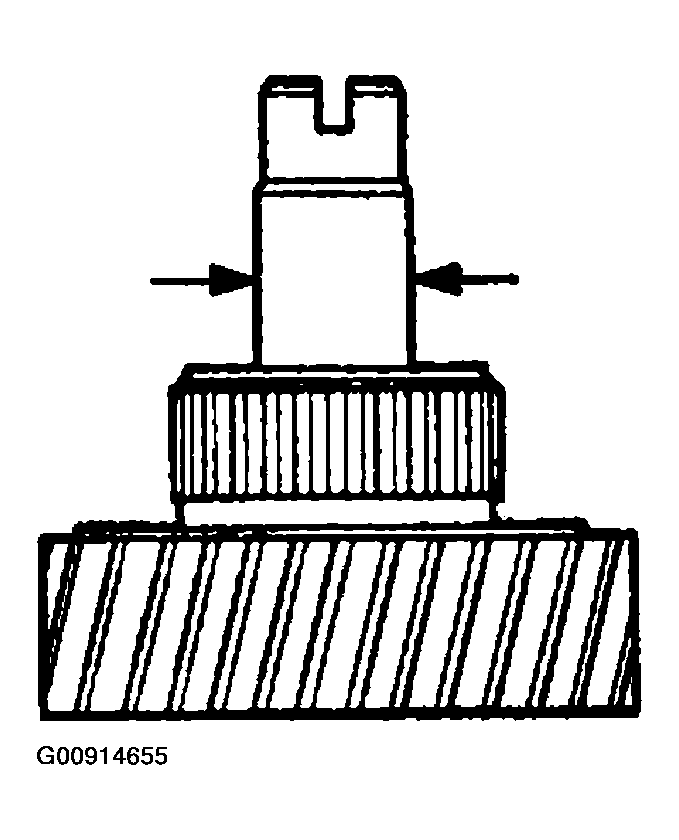

Fig 1: Inspecting Idler Gear Using Micrometer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a cylinder gauge, measure the idler low gear diameter.

1. Standard diameter: 45.52 - 45.54 mm (1.7922 - 1.7930 in.)
2. Maximum diameter: 45.54 mm (1.7930 in.)

Fig 2: Measuring Idler Low Gear Diameter Using Cylinder Gauge

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
