Motor Shift Control System
›
Location
Motor Shift Control System: Location

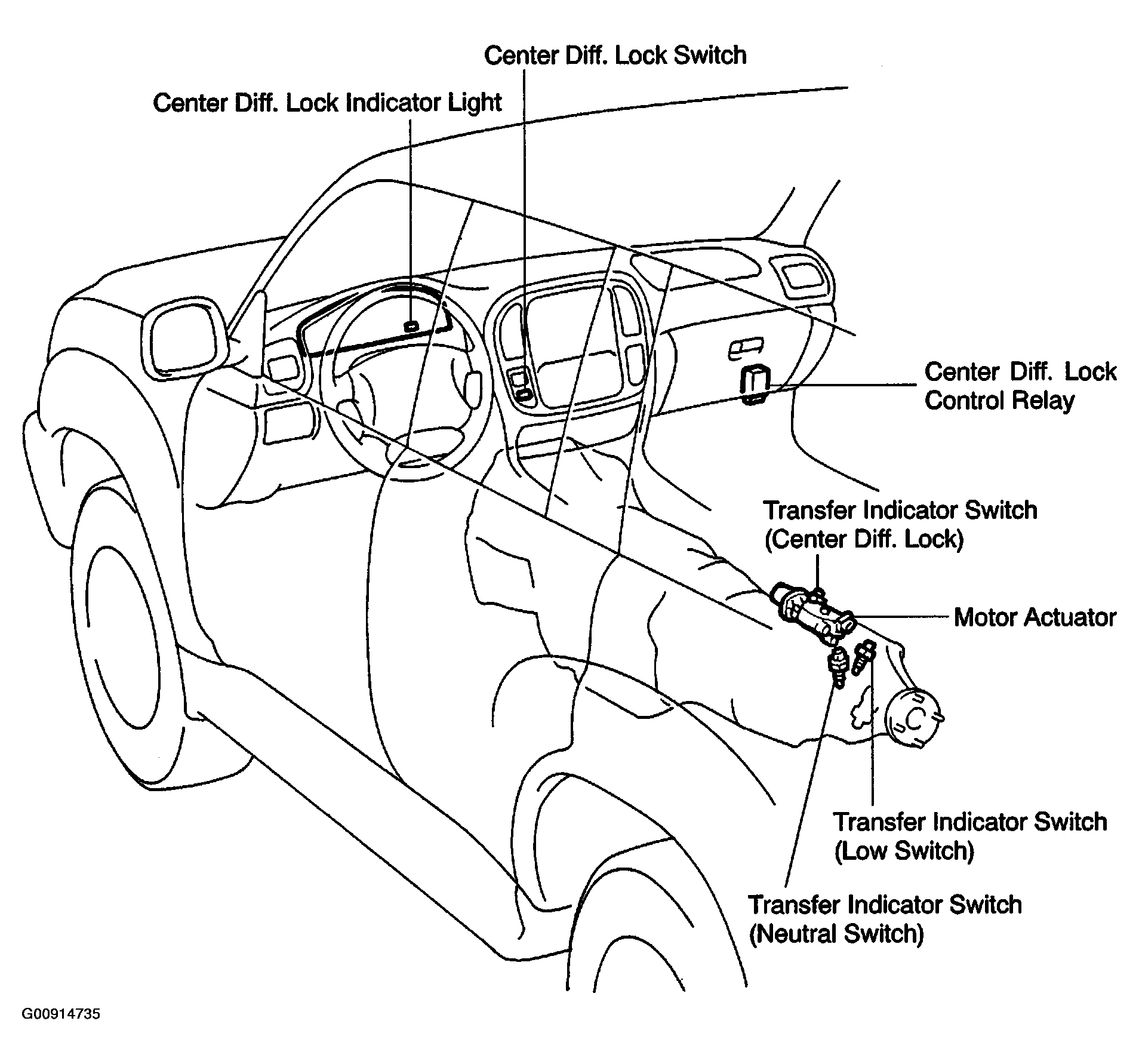

Fig 1: Identifying Components Of Motor Shift Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
