Rear Extension Housing: Components

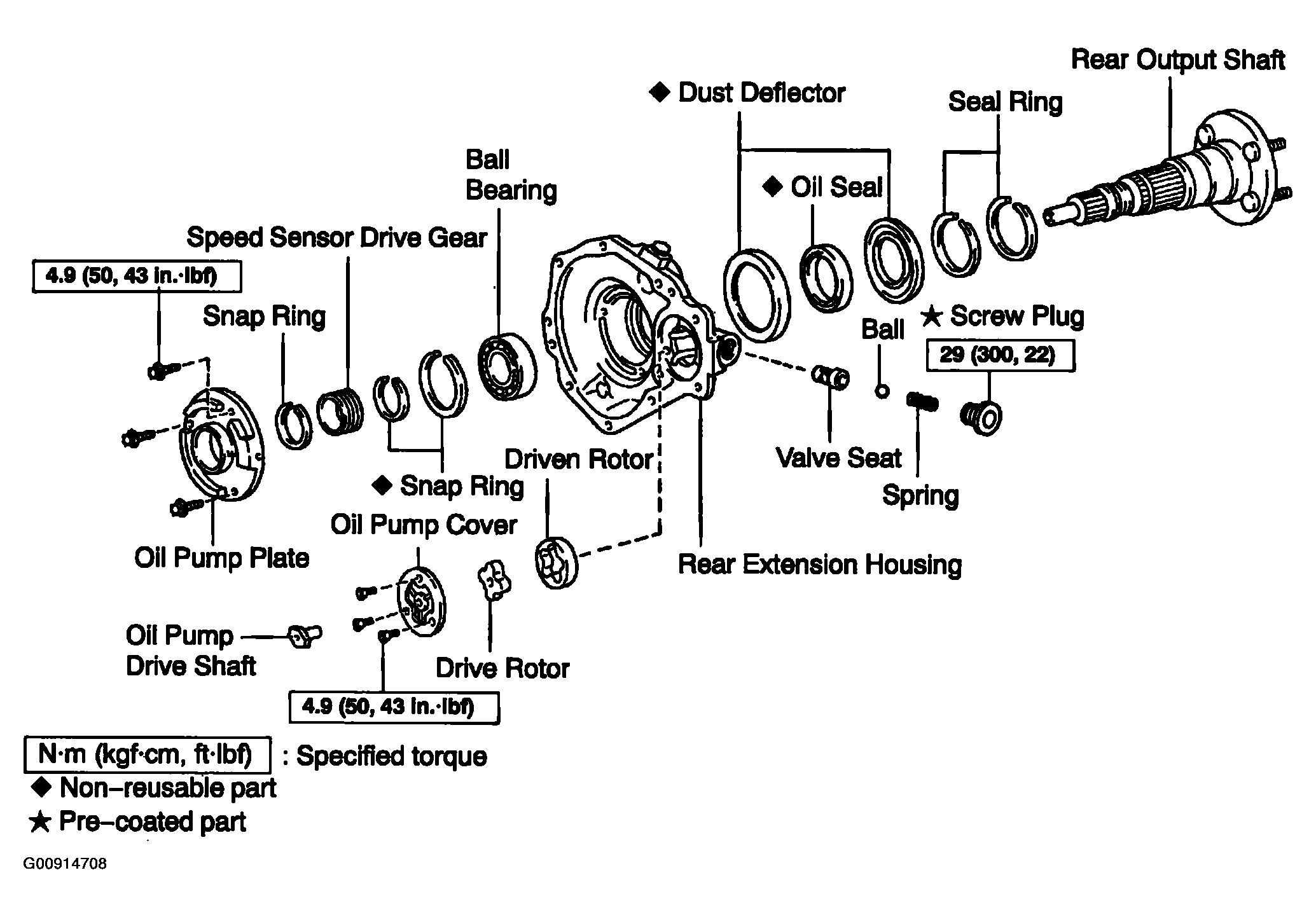

Fig 1: Identifying Components Of Rear Extension Housing

G00914708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
