Window Defogger System: Location

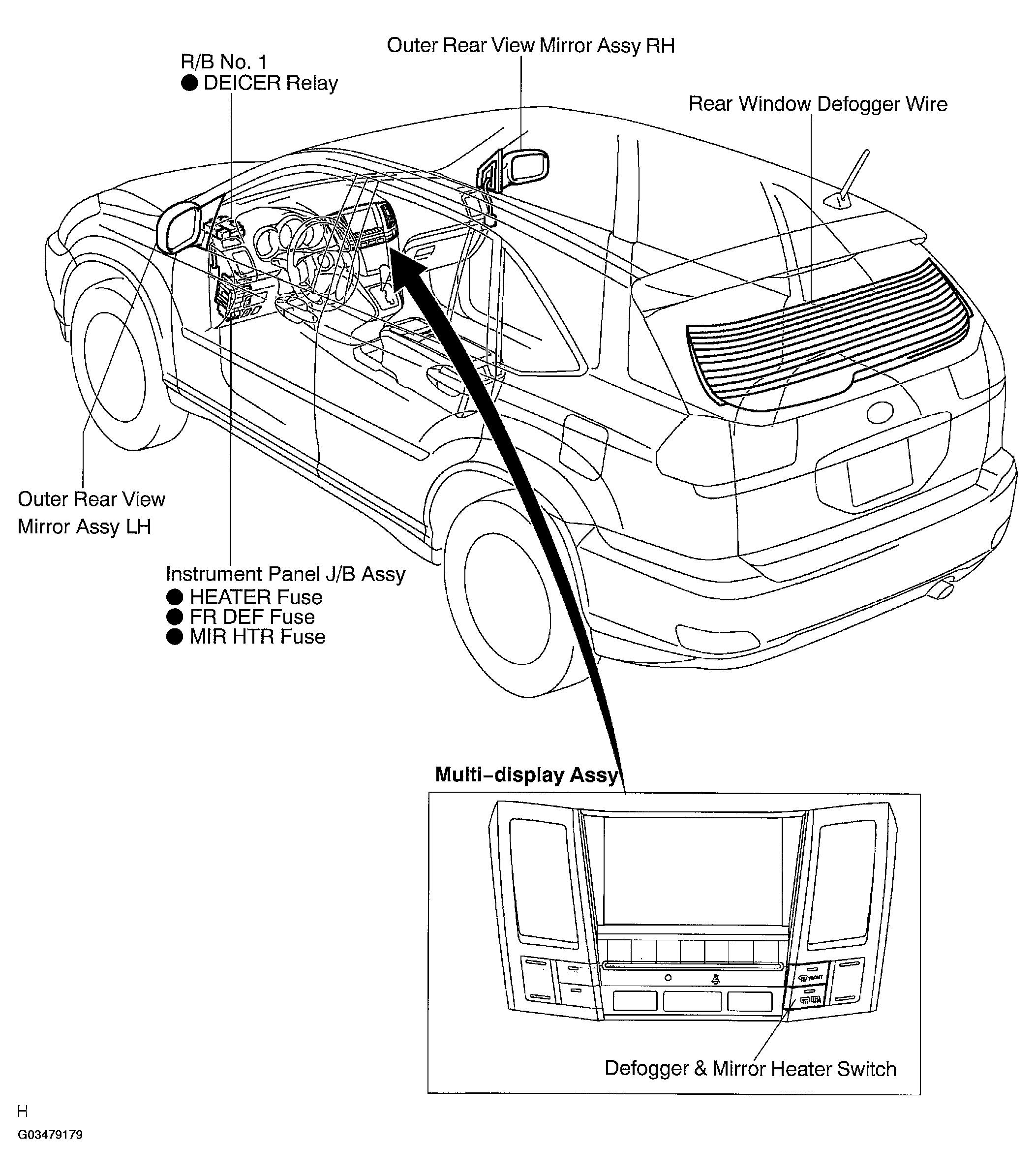

Fig 1: Locating Window Defogger System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

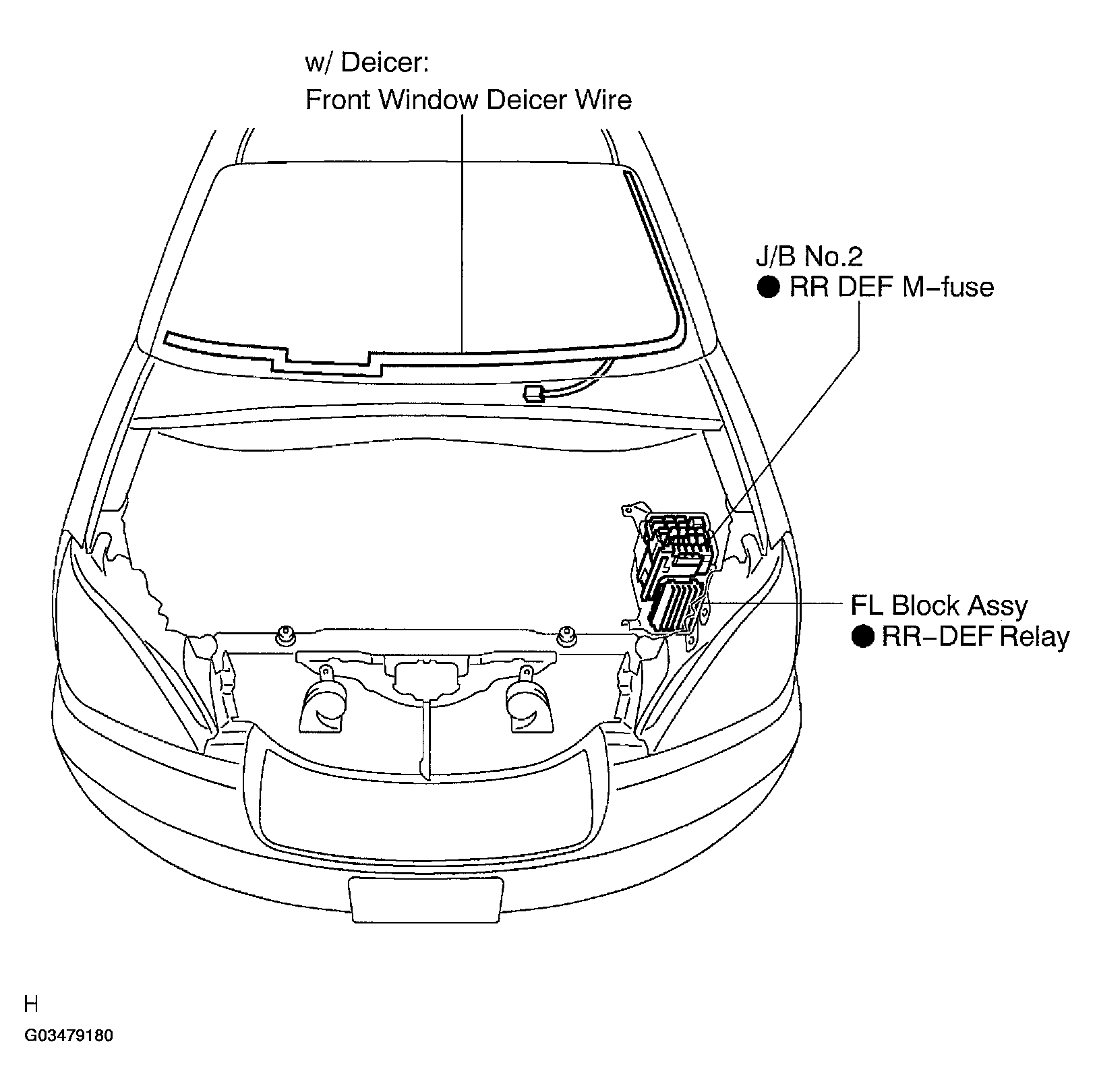

Fig 2: Locating Window Defogger System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
