Power Window Control System - Diagnosis
›
Manual Up/Down Function Does Not Operate At Rear LH
›
Wiring Diagram
Manual Up/Down Function Does Not Operate At Rear LH: Wiring Diagram

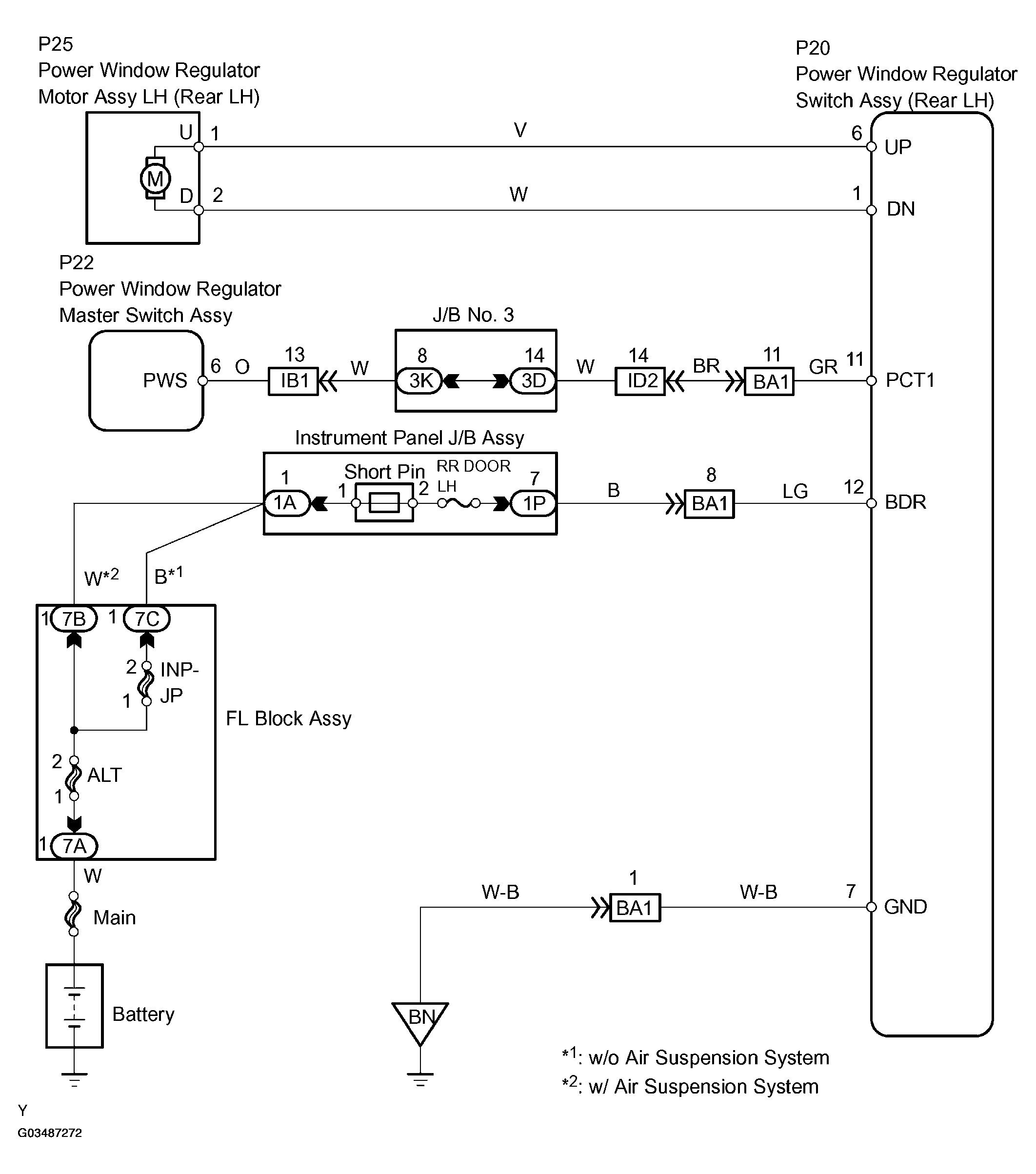

Fig 1: Wiring Diagram - Manual UP/DOWN Function Not Operate At Rear LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
