Power Window Control System - Diagnosis
›
Manual Up/Down Function Does Not Operate At Rear RH
›
Wiring Diagram
Manual Up/Down Function Does Not Operate At Rear RH: Wiring Diagram

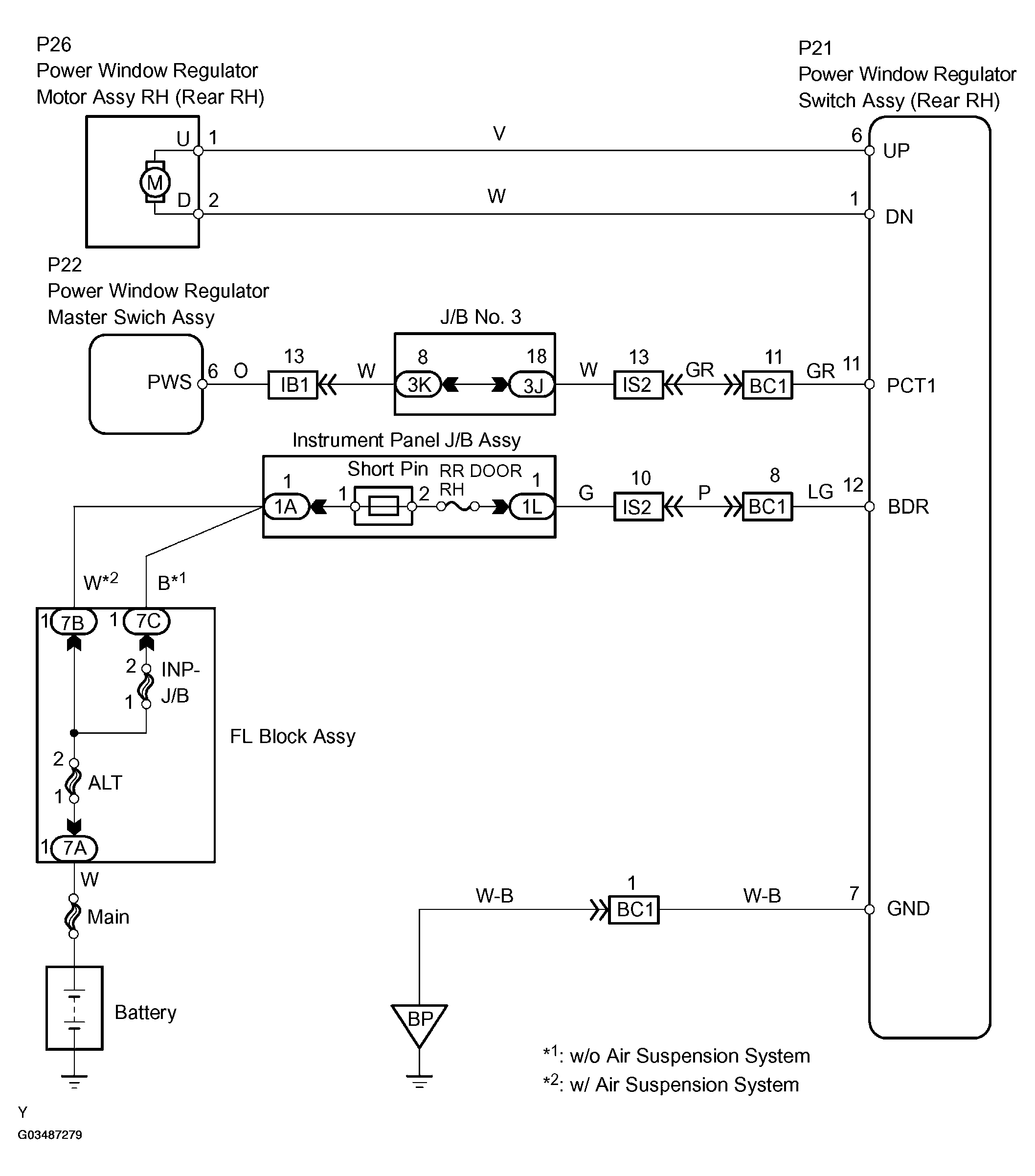

Fig 1: Wiring Diagram - Manual UP/DOWN Function Not Operate At Rear RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
