Combination Meter ASSY: Overhaul

REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
1. Disengage the 4 clips and remove the instrument cluster finish panel sub-assy.

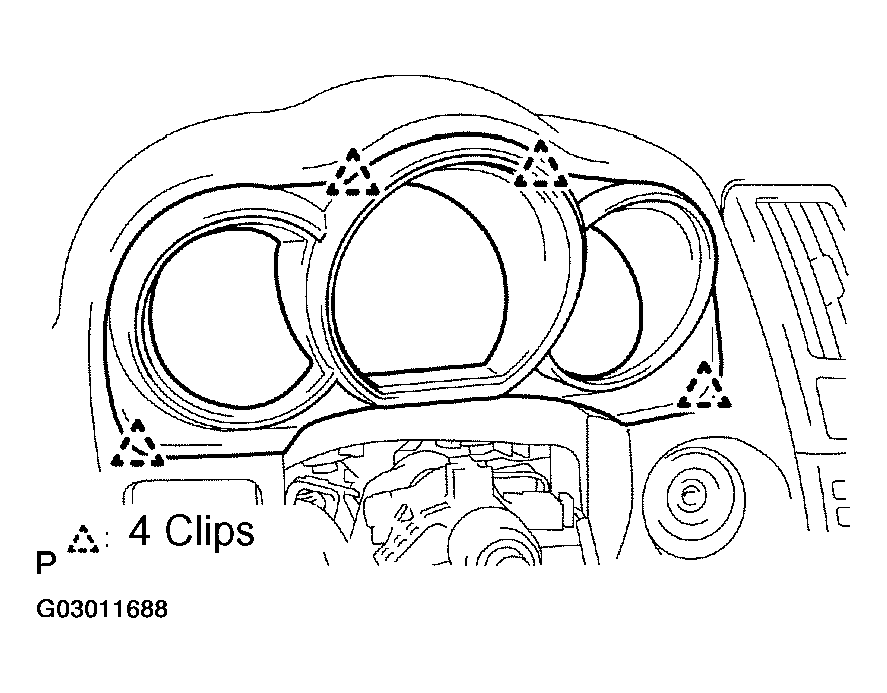

  Fig 1: Removing Instrument Cluster Finish Panel Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSY
1. Remove the 4 screws.
2. Pull out the combination meter assy, then disconnect the connectors.

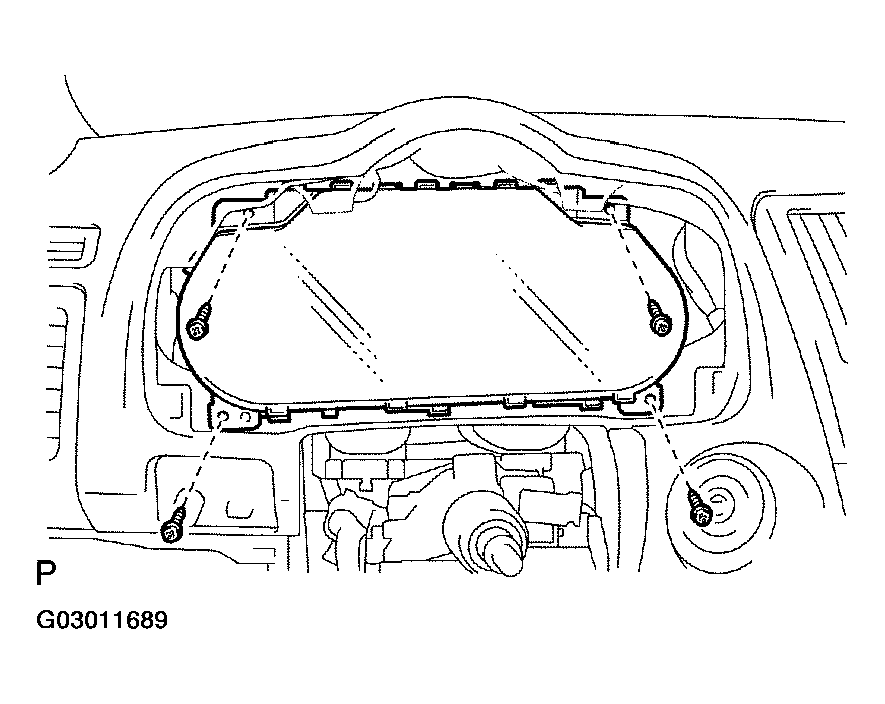

  Fig 2: Removing Combination Meter Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS
1. Disengage the 8 claws and remove the combination meter glass.

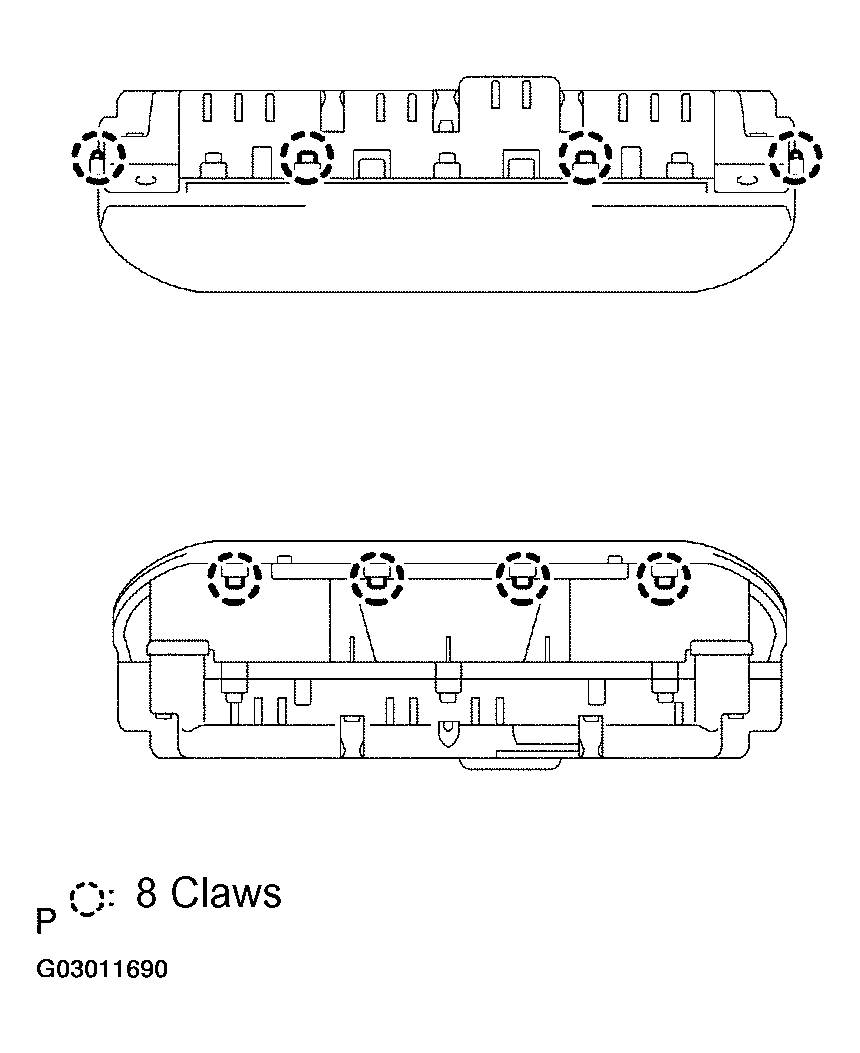

  Fig 3: Removing Combination Meter Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
