Lexus
›
2004
›
RX 330 AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
SFI System - Diagnosis
›
Active Control Engine Mount
›
Wiring Diagram
Active Control Engine Mount: Wiring Diagram

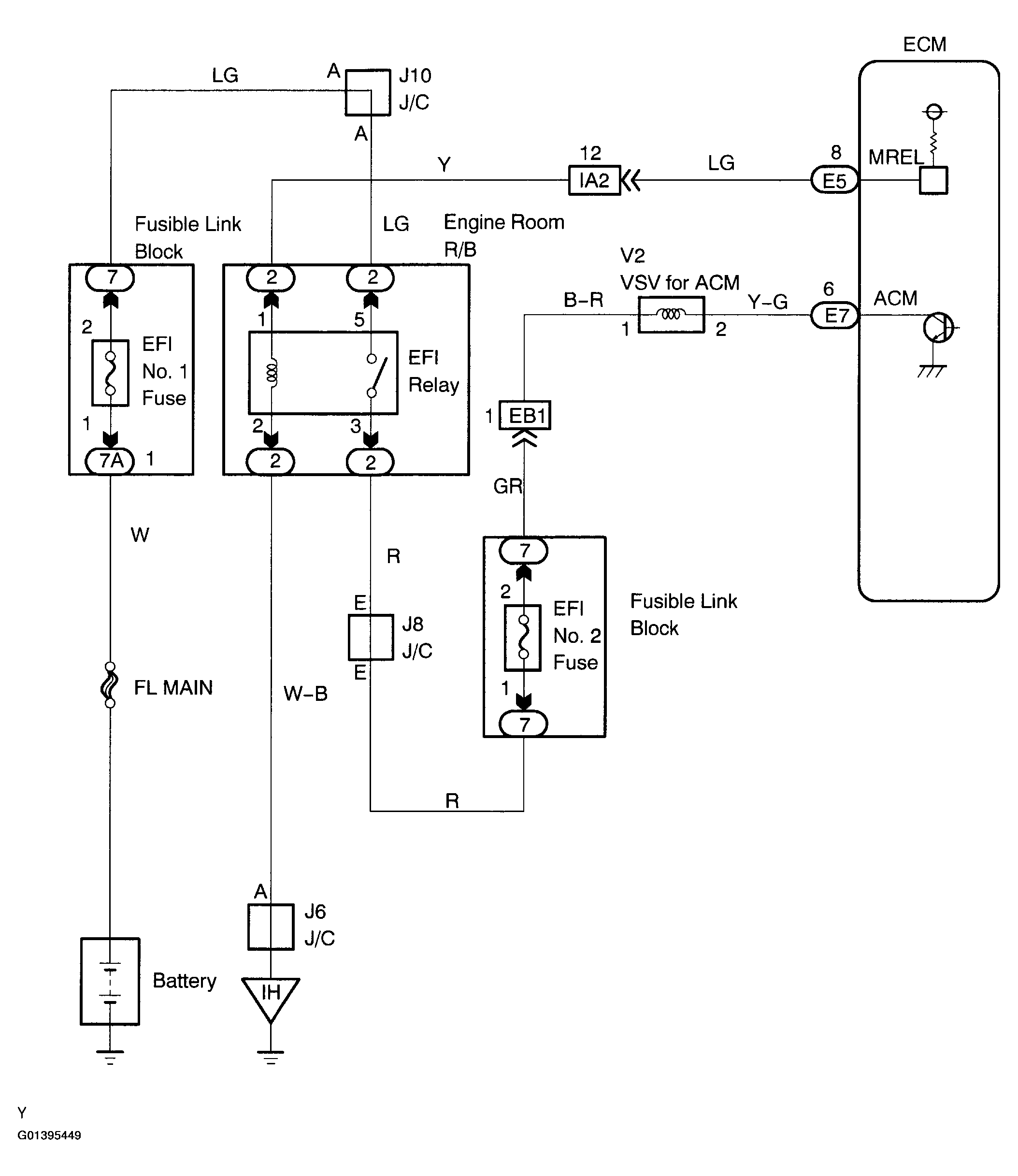

Fig 1: Active Control Engine Mount Circuit
