Section 377 (Power Window Control System (W/Jam Protection) - Diagnostics)
›
Auto Up/Down Function Does Not Operate
›
Wiring Diagram
Auto Up/Down Function Does Not Operate: Wiring Diagram
WARNING:
This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

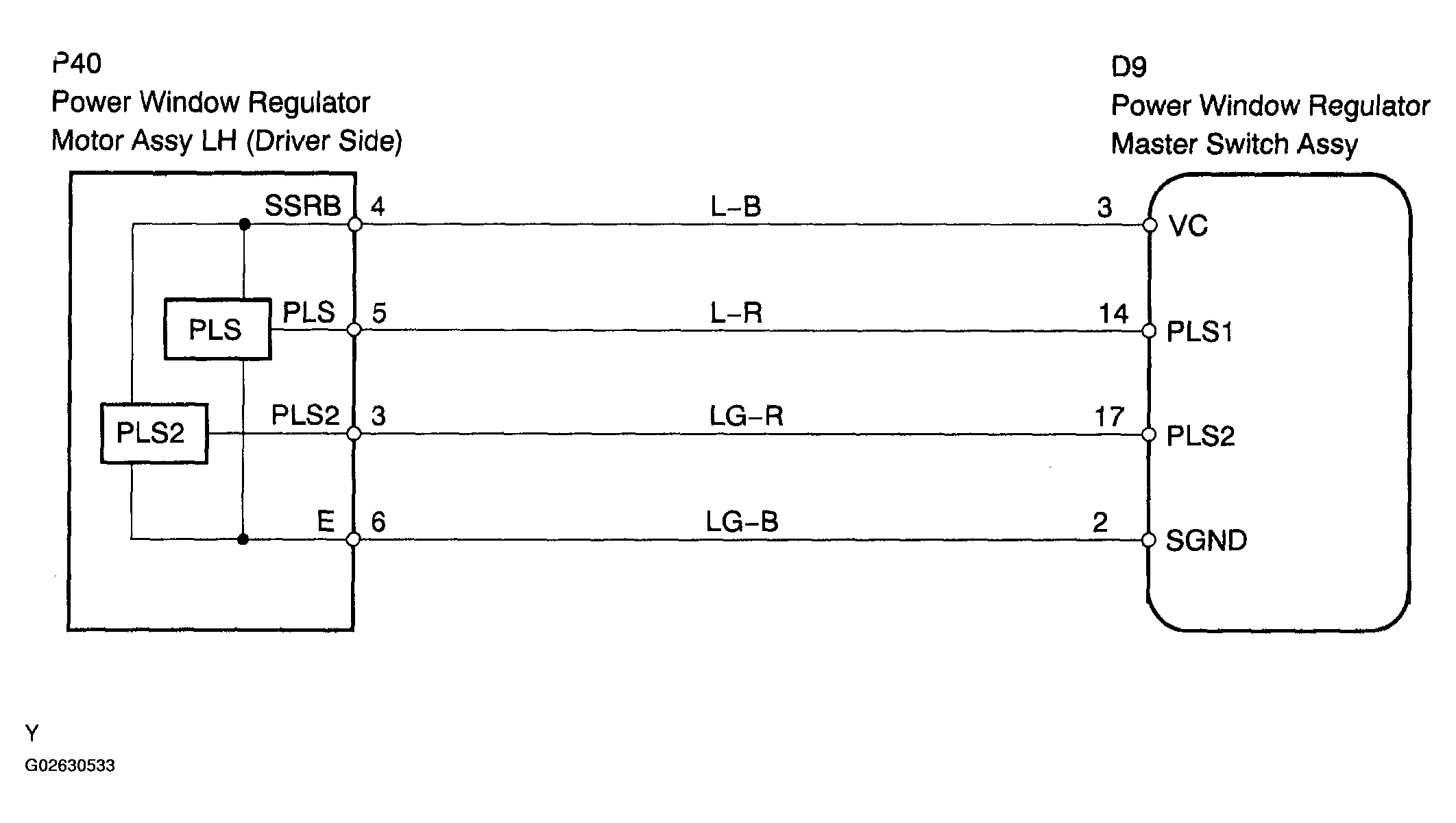

Fig 1: Power Window Regulator Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
