Section 439 (Audio System - Diagnostics): Location

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

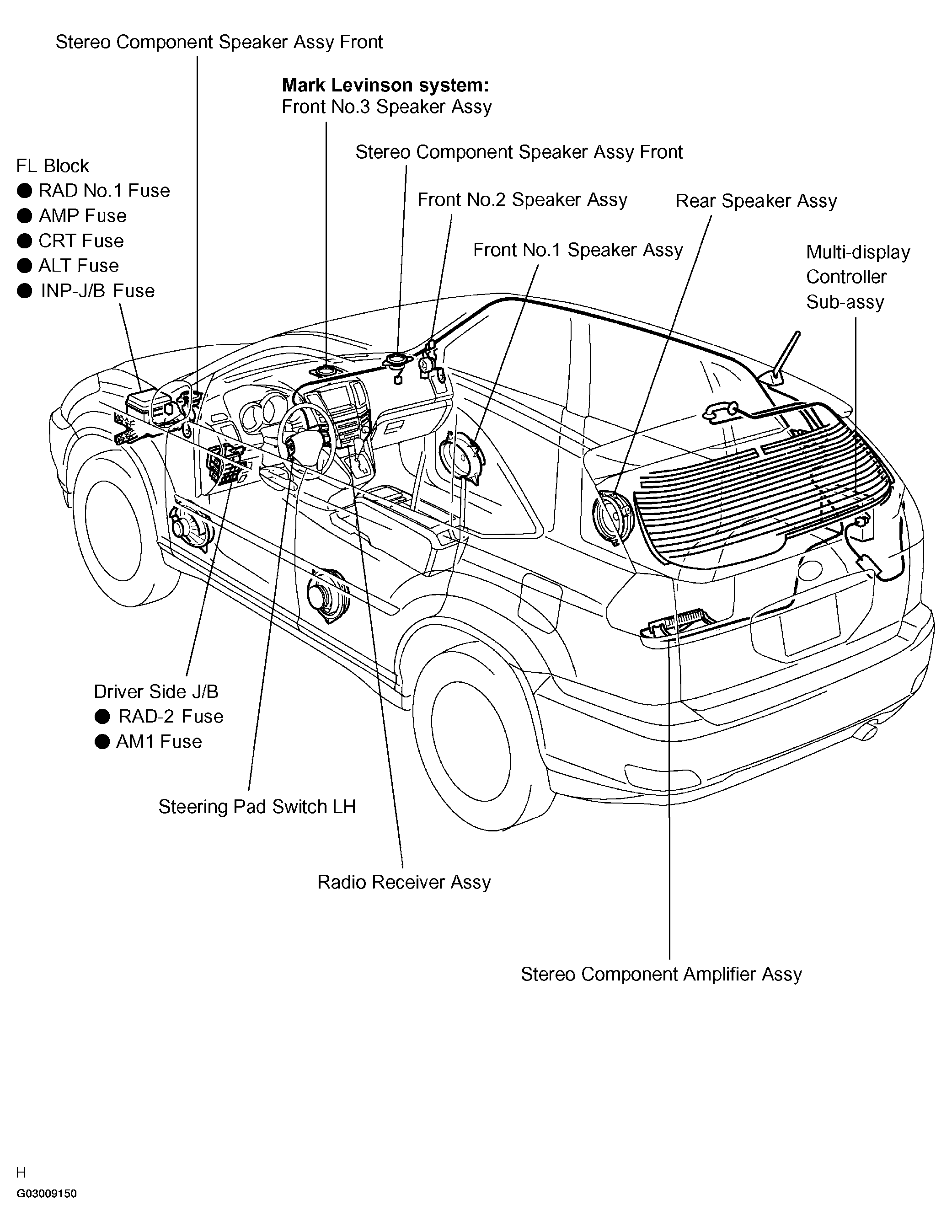

Fig 1: Locating Audio System Components

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
