System Diagram

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

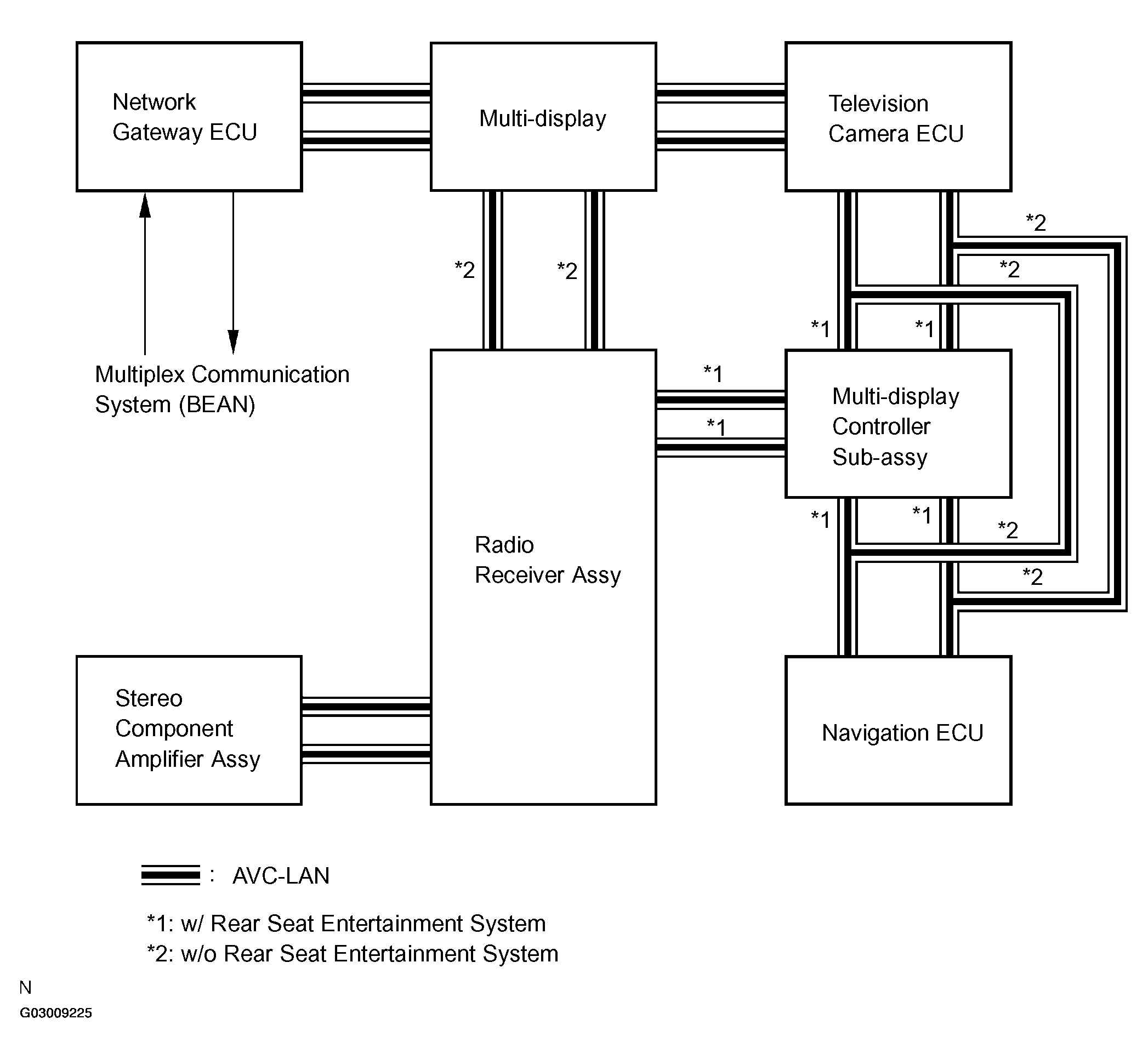

Fig 1: Lexus Navigation System - System Diagram (1 Of 2)
G03009225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

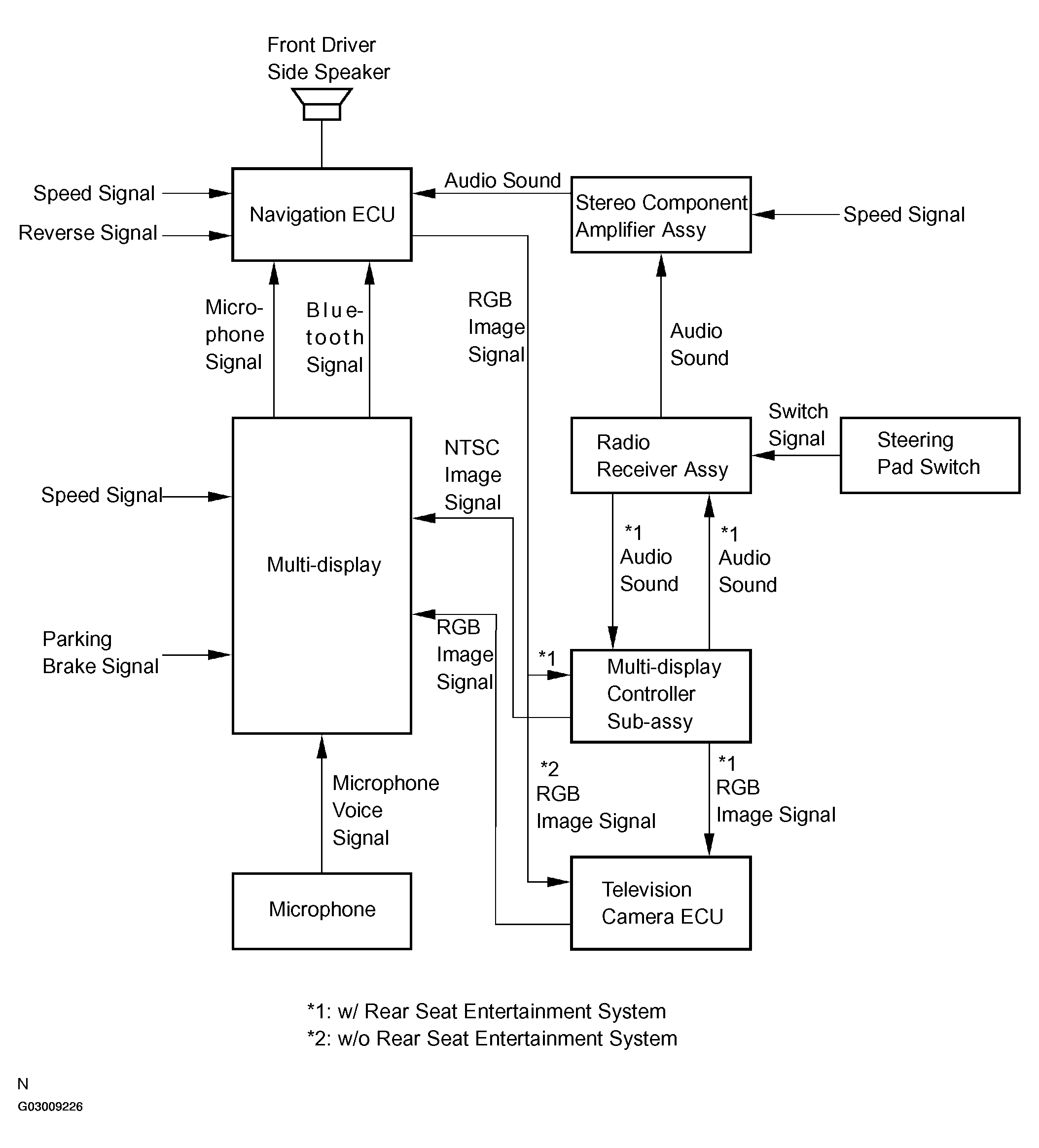

Fig 2: Lexus Navigation System - System Diagram (2 Of 2)
G03009226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
