Multi-Display ASSY: Replacement
WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
- DISCONNECT BATTERY NEGATIVE TERMINAL (See SUPPLEMENTAL RESTRAINT SYSTEM )
- REMOVE SHIFT LEVER KNOB SUB-ASSY (See OVERHAUL )
- REMOVE CONSOLE PANEL UPPER FRONT (See REPLACEMENT )
- REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See REPLACEMENT )
- REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (See RADIO RECEIVER ASSY )
- REMOVE MULTI-DISPLAY ASSY

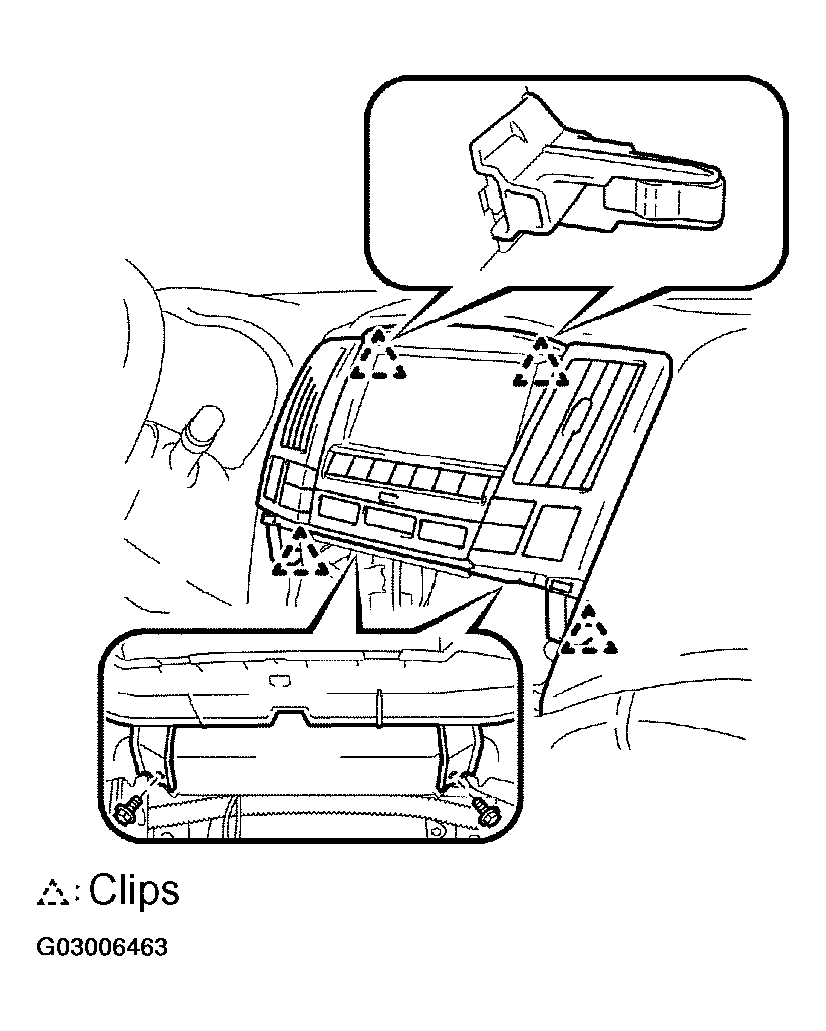

- Remove the 2 bolts, and disengage the 4 clips.
- Disconnect the connector.
- Remove the multi-display assy.
