Telephone Antenna Code: Replacement

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS:

See ROOF HEADLINING ASSY , REAR SEAT ASSY LH , REAR SEAT ASSY RH

  1. REMOVE REAR DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  2. REMOVE REAR DOOR SCUFF PLATE LH
  3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (See  REPLACEMENT  )
  4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  5. REMOVE DECK BOARD SUB-ASSY (See step 15 in  REPLACEMENT  )
  6. REMOVE REAR SEAT ASSY RH (4-2-4 SPLIT SEAT TYPE) (See  OVERHAUL  )
  7. REMOVE REAR SEAT ASSY LH (4-2-4 SPLIT SEAT TYPE) (See  OVERHAUL  )
  8. REMOVE TONNEAU COVER ASSY
  9. REMOVE DECK FLOOR BOX FRONT (See step 19 in  REPLACEMENT  )
  10. REMOVE DECK FLOOR BOX REAR (See step 20 in  REPLACEMENT  )
  11. REMOVE DECK BOARD SUB-ASSY NO. 2 (See step 21 in  REPLACEMENT  )
  12. REMOVE DECK BOARD SUB-ASSY NO. 3
  13. REMOVE BACK DOOR WEATHERSTRIP (See step 23 in  REPLACEMENT  )
  14. REMOVE DECK SIDE TRIM BOX RH (See step 24 in  REPLACEMENT  )
  15. REMOVE DECK SIDE TRIM BOX LH
  16. REMOVE REAR FLOOR FINISH PLATE (See step 26 in  REPLACEMENT  )
  17. REMOVE REAR FLOOR FINISH SIDE PLATE RH (See step 27 in  REPLACEMENT  )
  18. REMOVE REAR FLOOR FINISH SIDE PLATE LH
  19. REMOVE DECK SIDE TRIM COVER RH (See step 29 in  REPLACEMENT  )
  20. REMOVE DECK SIDE TRIM COVER LH
  21. REMOVE REAR SEAT SIDE COVER RH (See  OVERHAUL  )
  22. REMOVE REAR SEAT SIDE COVER LH
  23. REMOVE ROPE HOOK (See step 33 in  REPLACEMENT  )
  24. REMOVE DECK TRIM SIDE PANEL ASSY RH (See step 34 in  REPLACEMENT  )
  25. REMOVE DECK TRIM SIDE PANEL ASSY LH
  26. REMOVE REAR SEAT SUB FLOOR PANEL ASSY
    1. Remove the 3 bolts, 3 nuts and the rear seat sub floor panel assy.
  27. REMOVE ROOF SIDE GARNISH ASSY INNER RH (See step 37 in  REPLACEMENT  )
  28. REMOVE TELEPHONE ANTENNA CODE
    1. Disconnect the connectors.
    2. Remove the 8 clamps and the telephone antenna cord.

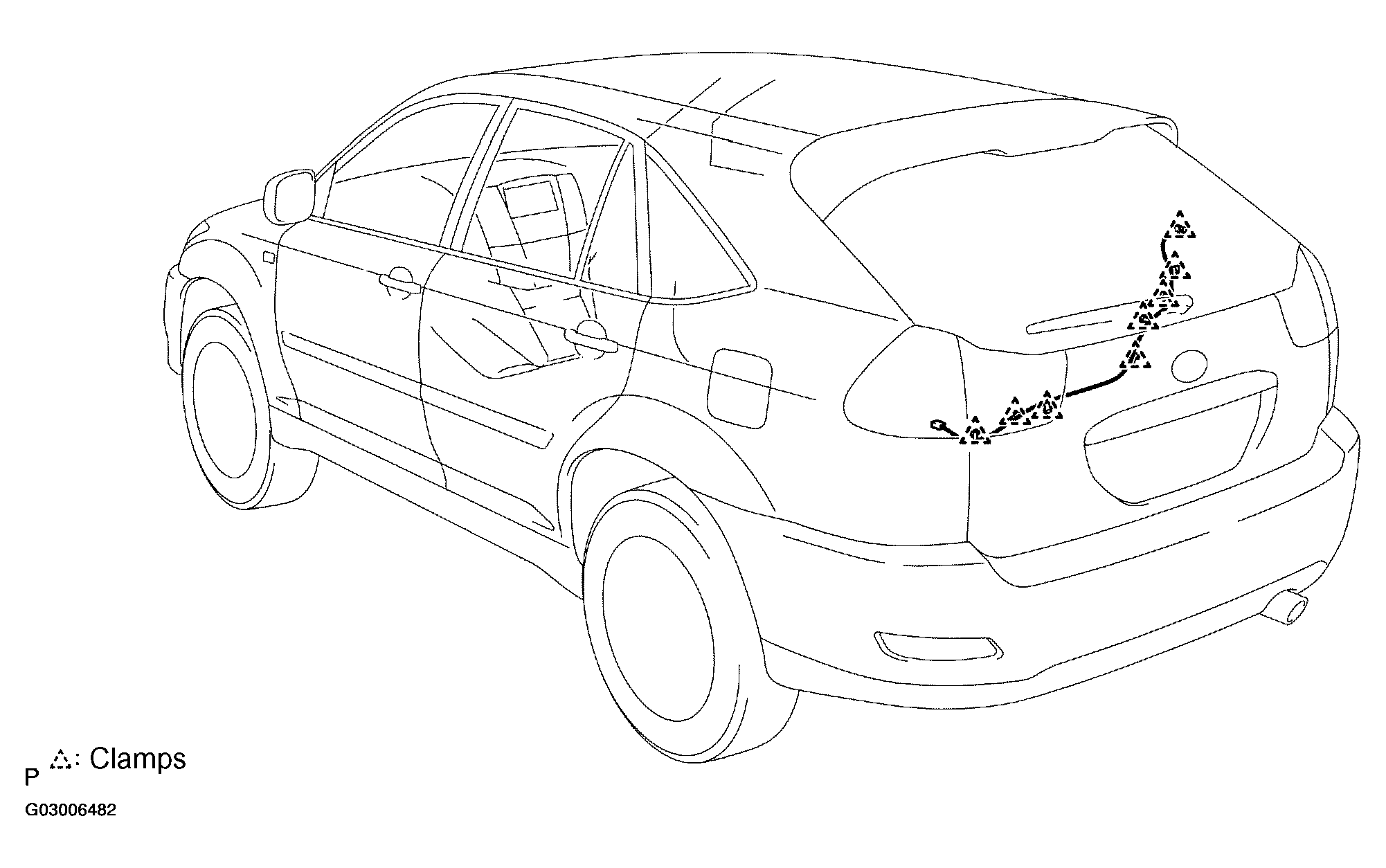

      Fig 1: Locating Telephone Antenna Cord Clamps
      G03006482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL REAR SEAT ASSY RH (4-2-4 SPLIT SEAT TYPE) (See step 61 in  OVERHAUL  )
  30. INSTALL REAR SEAT ASSY LH (4-2-4 SPLIT SEAT TYPE) (See step 36 in  OVERHAUL  )
