Engine Unit: Components

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (1 Of 12)

G05248158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Engine Unit Replacement Components With Torque Specifications (2 Of 12)

G05248159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

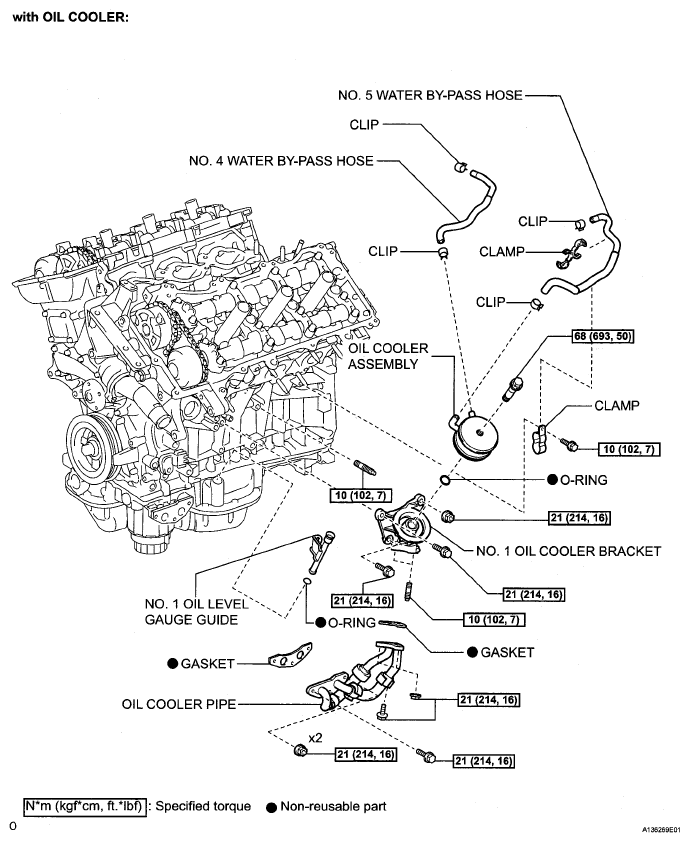

Fig 3: Identifying Engine Unit Replacement Components With Torque Specifications (3 Of 12)

G05271181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Engine Unit Replacement Components With Torque Specifications (4 Of 12)

G05248160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

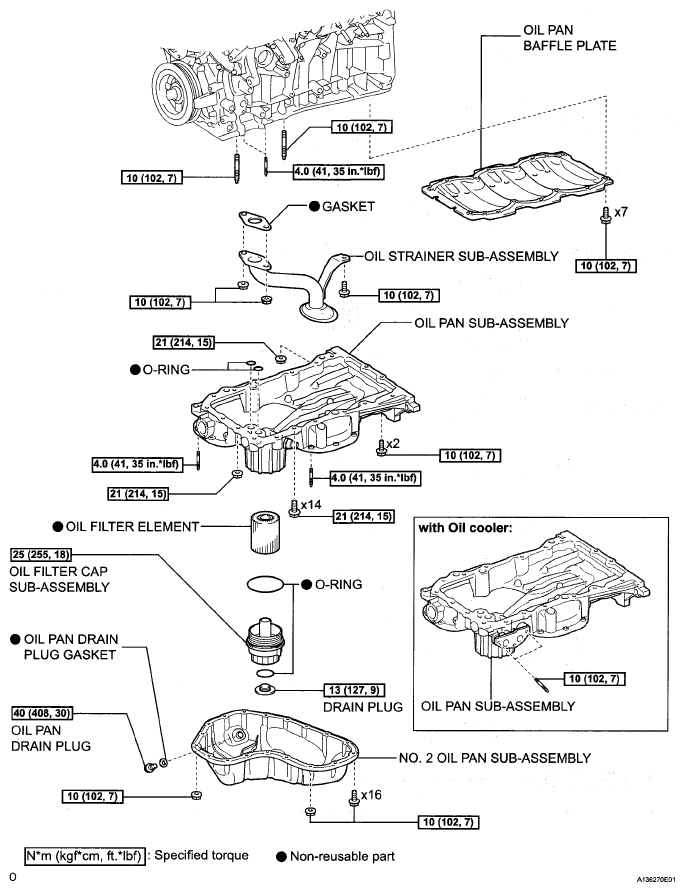

Fig 5: Identifying Engine Unit Replacement Components With Torque Specifications (5 Of 12)

G05271183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

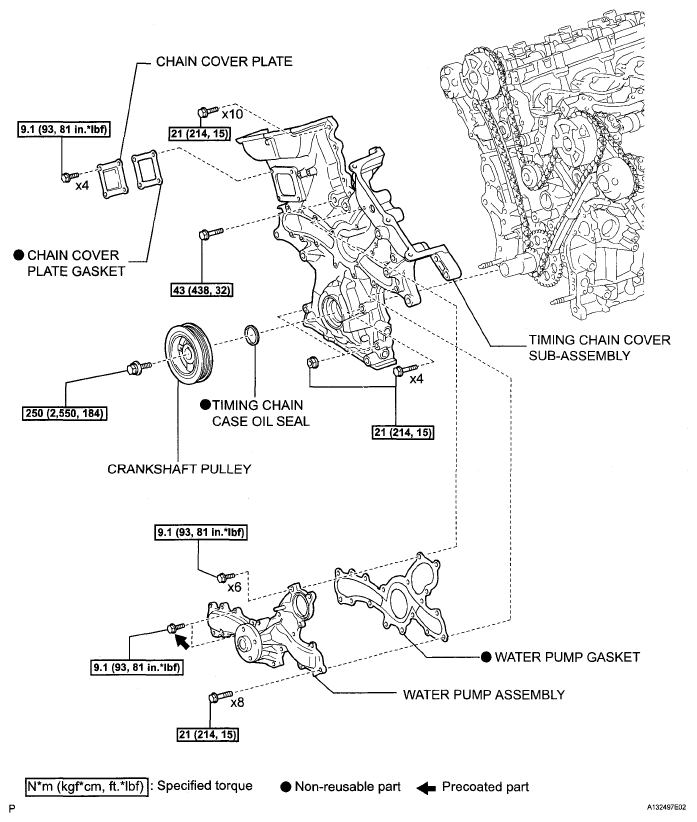

Fig 6: Identifying Engine Unit Replacement Components With Torque Specifications (6 Of 12)

G05271184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Engine Unit Replacement Components With Torque Specifications (7 Of 12)

G05248163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Engine Unit Replacement Components With Torque Specifications (8 Of 12)

G05248164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Engine Unit Replacement Components With Torque Specifications (9 Of 12)

G05248165

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

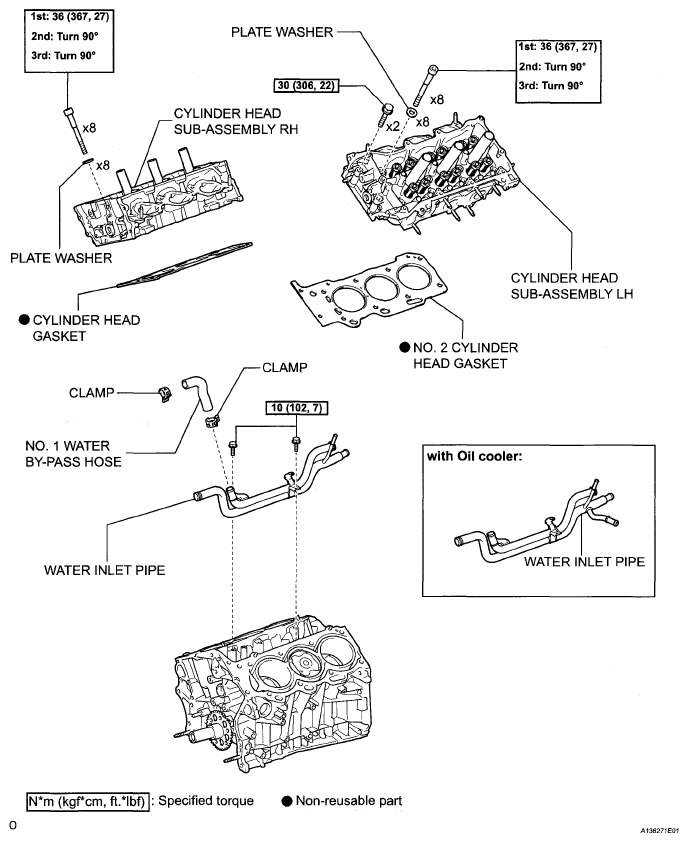

Fig 10: Identifying Engine Unit Replacement Components With Torque Specifications (10 Of 12)

G05271188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Engine Unit Replacement Components With Torque Specifications (11 Of 12)

G05248167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Identifying Engine Unit Replacement Components With Torque Specifications (12 Of 12)

G05248168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
